Ebara PRA 1.00 M peripheral pump - 1150100000E

Name: Ebara PRA 1.00 M peripheral pump - 1150100000E
Brand: Ebara
SKU: 1150100000E
Price: 326.04 GBP
Availability: InStock

Ebara PRA 1.00 M peripheral pump - 1150100000E - Image 2

In stock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

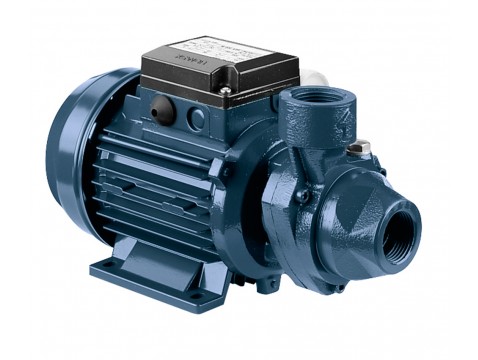

Ebara PRA 1.00 M peripheral pump, 0.75 kW, single-phase

The Ebara PRA is a peripheral (turbine) pump with a cast iron casing and brass impeller, giving high head at low flow. This PRA 1.00 M has a 0.75 kW motor, a maximum head of 71 m (6.96 bar) and flows up to 50 l/min.

0.75 kW

Motor

50 l/min

Max. flow

71 m

Max. head

1 x 230V

Supply

Single-phasePeripheral impellerBrass impellerIP44

Full Description

More about this product

Full Description

Applications

Domestic water supply
Boiler feed
Booster sets and autoclave units

Specification

Model	Ebara PRA 1.00 M
Ebara part number	1150100000E
Motor power (P2)	0.75 kW (1 HP)
Supply	1 x 230 V ± 10%, 50 Hz
Full load current	4.4 A at 230 V
Capacitor	25 µF, built in
Motor efficiency class	IE2
Maximum head	71 m (6.96 bar)
Maximum flow	50 l/min (3 m³/h)
Suction connection	G 1 (UNI ISO 228)
Discharge connection	G 1 (UNI ISO 228)
Liquid	Clean water, +5 °C to +80 °C
Maximum working pressure	12 bar
Casing	Cast iron
Impeller	Brass, peripheral turbine type
Mechanical seal	Ceramic/Carbon/NBR
Motor bracket	Cast iron
Motor	TEFC, 2-pole, insulation class F, IP44
Weight	9.5 kg

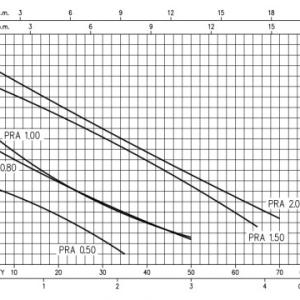

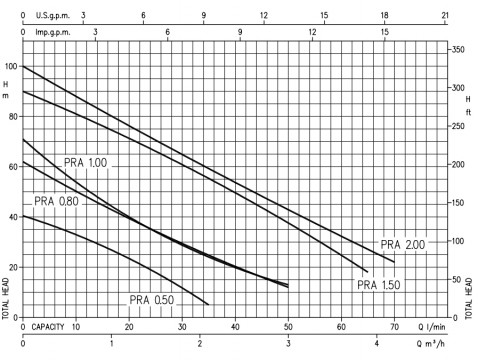

Performance

Head at each flow, from Ebara's PRA data book.

Flow (l/min)	Flow (m³/h)	Head (m)
0	0	71
5	0.3	62
10	0.6	54.4
15	0.9	47
20	1.2	40.4
35	2.1	24.3
50	3	13

Key features

Peripheral impeller

Brass peripheral turbine impeller for high head at low flow.

Cast iron casing

Cast iron casing and bracket, Ceramic/Carbon/NBR seal, sealed ball bearings.

Motor

2-pole TEFC motor, IE2, IP44, insulation class F; capacitor and overload protection built in.

Frequently asked questions

What supply does it need?

Single-phase 230 V ± 10%, 50 Hz. Full load current is 4.4 A. The capacitor and thermal overload protection are built in.

What temperature and pressure can it take?

Clean water from +5 °C to +80 °C, with a maximum working pressure of 12 bar.

Not sure this is the right size?

Send us the duty you need (flow and head) and we will check the selection before you order.

Downloads

data sheet PDF
Download

Delivery Information

Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.

Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).

Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.

Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.

Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.

Frequently Asked Questions

Quick answers to common questions about the Ebara PRA 1.00 M peripheral pump – 1150100000E. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.

What is a peripheral pump?

A peripheral pump uses a small impeller and peripheral channel to generate relatively high pressure at modest flow rates.

What applications suit peripheral pumps?

They are commonly used for clean-water transfer and pressure applications where high head and comparatively low flow are required.

Can peripheral pumps handle abrasive liquids?

Generally they are intended for clean, non-abrasive liquids. Check the specific pump’s permitted liquid properties before use.
