Grundfos accumulator Vessels

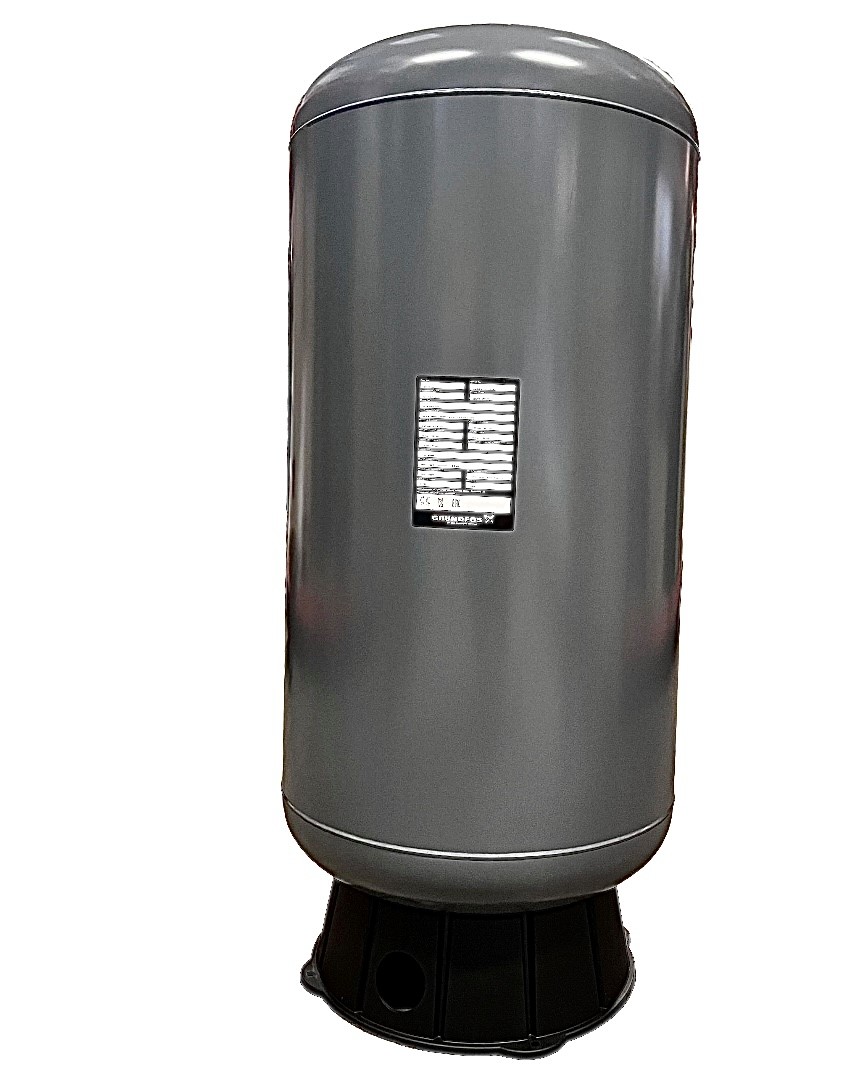

300 litre accumulator vertical Grundfos GT-D-300-V 96528347
- Established 1975
- Trusted by thousands of customers
More about this product
| Liquid: | |
| Maximum liquid temperature: | 90 °C |
| Technical: | |
| Membrane type: | Double Diaphragm |
| Materials: | |
| Material: | Carbon steel |
| Installation: | |
| Maximum operating pressure: | 10 bar |
| Size: | 300.0 |
| Others: | |
| Net weight: | 48.4 kg |
| Gross weight: | 52.9 kg |
| Applicat. typ: | Standard |
| Danish VVS No.: | 398254790 |
| Product name: | GT-D-300 PN10 G1 1/4 V |
| Product No: | 96528347 |
| EAN number: | 5700397133583 |
| Technical | |
|---|---|
| Membrane type: | Double Diaphragm |
| Materials | |
|---|---|
| Material: | Carbon steel |
| Installation | |
|---|---|
| Maximum operating pressure: | 10 bar |

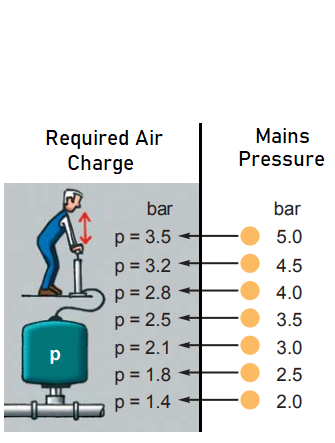

| Pre-pressure: | 1.4 bar |
| Size: | 300.0 |
| Liquid | |
|---|---|
| Maximum liquid temperature: | 90 °C |
| Others | |
|---|---|
| Net weight: | 48.4 kg |
| Gross weight: | 52.9 kg |
| Applicat. typ: | Standard |
| Danish VVS No.: | 398254790 |
-
data sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
You may also need
A 300-litre Lowara pressure vessel is a tank used in fluid management systems, typically in water supply, HVAC (heating, ventilation, and air conditioning), or industrial…
Supplied as the Mainsboost Upstream Monobloc 22/28mm. This kit now ships as a single pre-assembled unit rather than a box of loose fittings — the…
Supplied as the Mainsboost Upstream Monobloc 22/28mm. This kit now ships as a single pre-assembled unit rather than a box of loose fittings — the…
Mainsboost Accumulator MB 300SV-1-22 44464 Mainsboost accumulator systems are designed to stablise water pressure and increase flow to combination boilers and unvented systems allowing multiple taps…
Related products
Mainsboost MB 130SV-3-22 44457 Mainsboost systems are designed to stablise water pressure and increase flow to combination boilers and unvented systems allowing multiple taps and…
Accumulator vessel connection kit to 22mm copper pipe. Including 1 1/2" socket, 1 1/2" x " bush, 22mm x 1" elbow, 1/2" cap. Accumulator technology…
Digital 4.5bar Water Mains Booster Pump The Digital charger pump can be used with any accumulator or pressure vessel inc GWS, Lowara, Grundfos and Stuart…
Designed to address the increasing challenge of low mains water pressure, the newly extended STORMBOOST lineup is fully WRAS Approved and now includes six innovative models: STORMBOOST 60, 80,…
Powertank COFFIN 200 fixed speed – 2600360 The Powertank Rectangular range is designed for houses and apartments where there is low mains water pressure and…
Mainsboost MB 100SV-3-22 44454 Mainsboost systems are designed to stablise water pressure and increase flow to combination boilers and unvented systems allowing multiple taps and…
Frequently Asked Questions
Quick answers to common questions about the 300 litre accumulator vertical Grundfos GT-D-300-V 96528347. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a mains pressure boosting system?
A mains pressure boosting system increases the pressure and flow of water from the incoming mains supply into a property. It typically combines a pump and a storage or expansion tank, drawing water from the mains and delivering it to taps, showers and appliances at a stronger, more consistent pressure. They are used where the incoming mains is too weak to serve modern outlets reliably.
When do I need a mains booster pump?
You normally need a mains booster if static mains pressure is below 1.5 to 2 bar, if showers run weakly when other taps are open, or if combi boilers struggle to deliver hot water. Anglian Pumping recommends checking static pressure at the stop tap before specifying a system, then choosing a model rated for the number of bathrooms and outlets in the property.
What size mains booster do I need for my home?
Sizing depends on the number of bathrooms, the type of fittings and the static mains pressure. As a guide, a 1 to 2 bathroom property with combi boiler or single shower often needs 1.6 to 3 bar boost. A 2 to 3 bathroom property typically needs 3 to 4.5 bar with an integral break tank. Larger homes need a tank-and-pump system such as the DAB Esybox with Esytank or a Powertank set.
What is an accumulator tank?
An accumulator tank is a pressurised vessel that connects directly to the mains supply and stores water under pressure. When a tap or shower opens, water discharges immediately from the vessel at full mains pressure rather than drawing only from the street main. This delivers stronger, more consistent flow at peak times. Accumulators have no pump and no moving parts so they are maintenance free and silent.
When should I use an accumulator instead of a pump?
An accumulator is the right solution when static mains pressure is adequate – above 2 bar – but flow is poor or drops during peak demand. It boosts available flow without adding a pump, energy use or noise. If static pressure is below 2 bar, a booster pump is needed instead, or an accumulator combined with a charge pump such as the WaterBoost ACF1.
What size accumulator do I need?
Accumulators are typically sized on a 60 per cent usable rule – a 300 litre vessel delivers around 180 litres of boosted water per cycle. As a guide, a 2 to 3 bedroom home suits a 300 litre vessel such as the GWS GCB-300LV. Larger 4 to 5 bedroom homes or properties with multiple bathrooms typically need 450 to 600 litres. Vertical models save floor space, horizontal models suit lofts and roof spaces.
