Wilo Yonos MAXO Screwed PN10
Wilo Yonos MAXO 30/0,5-10 G2″ 180mm 2120643
- Established 1975
- Trusted by thousands of customers

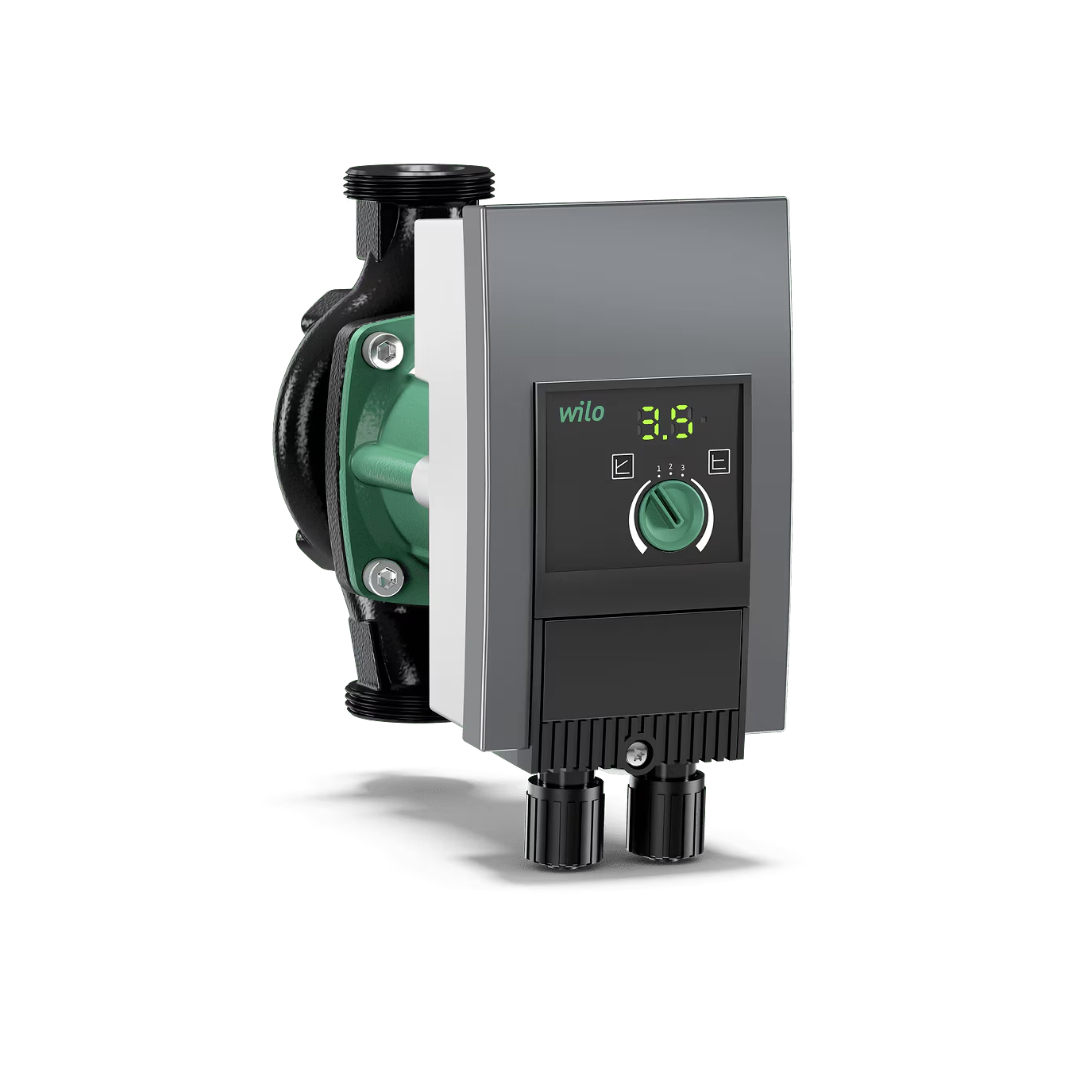

Wilo Yonos MAXO
Design Type –
Glandless circulation pump with threaded connection or flanged connection. EC motor with power adjustment.
Application –
Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial systems.
More about this product
Your advantages
LED display provides complete transparency of set delivery head, speed stage or possible errors
Simple adjustment over three speed stages when replacing an uncontrolled standard pump
Easier electrical connection using the Wilo plug
System availability ensured via collective fault signal
Compact design and proven ease of use
Construction
Glandless circulation pump with threaded connection or flange connection, EC motor with automatic power adjustment.
Application
Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial circulation systems.
Equipment/function
Manual functions
Setting the operating mode
Setting of pump output (delivery head)
Setting the speed stages
Automatic functions
Infinitely variable power adjustment according to the operating mode
Deblocking function
Soft start
Integrated full motor protection
Signal and display functions
Collective fault signal (potential-free NC contact)
Fault signal light
LED segment display for displaying the delivery head and fault codes
Display of the configured speed stage (C1, C2 or C3)
Wilo Yonos MAXO
- Pump connection: G2″
- Port to port: 180mm
- Max operating pressure: 10 bar
- Weight: 5.9 kg
- Part number: 2120643
-
data sheet PDFDownload
-
data PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
The Lowara Ecocirc XLplus system is designed to circulate liquids in heating systems with variable flows where it is desirable to enhance the settings of the pump duty…
The Grundfos Magna 1 system is designed to circulate liquids in heating systems with variable flows where it is desirable to enhance the settings of the…
The Grundfos TP single stage cast iron pump complete with 4 pole 230v electric motor. Single stage, close-coupled, volute pump with in-line suction and discharge ports of…
The Grundfos series of MAGNA pumps has earned plaudits for their easy-to-use, intelligent and innovative technology. The focus of the models is to achieve maximum…
The MAGNA series of circulator pumps are innovative and intelligent, making use of a permanent magnet-motor designed to achieve maximum efficiency. The AUTOadapt function means…
The Grundfos TP single stage cast iron pump complete with 2 pole electric motor and BSP threaded connections. Single stage, close-coupled, volute pump with in-line…
Frequently Asked Questions
Quick answers to common questions about the Wilo Yonos MAXO 30/0,5-10 G2″ 180mm 2120643. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is the Wilo Yonos MAXO 30/0.5-10 G2 used for?
The Wilo Yonos MAXO 30/0.5-10 G2 is a high-efficiency circulator pump for heating, chilled water and air conditioning systems.
Does the Wilo Yonos MAXO automatically adjust to system demand?
Yes. The electronically controlled pump automatically adjusts its performance to improve efficiency and reduce energy consumption.
What are the benefits of the Yonos MAXO G2 range?
The Yonos MAXO G2 range offers energy-efficient operation, intuitive controls and reliable circulation for commercial building services.
