Wilo Centrum 1, 2 & 3 Pump Booster Sets
Wilo Centrum DV608 – 29993236
- Established 1975
- Trusted by thousands of customers

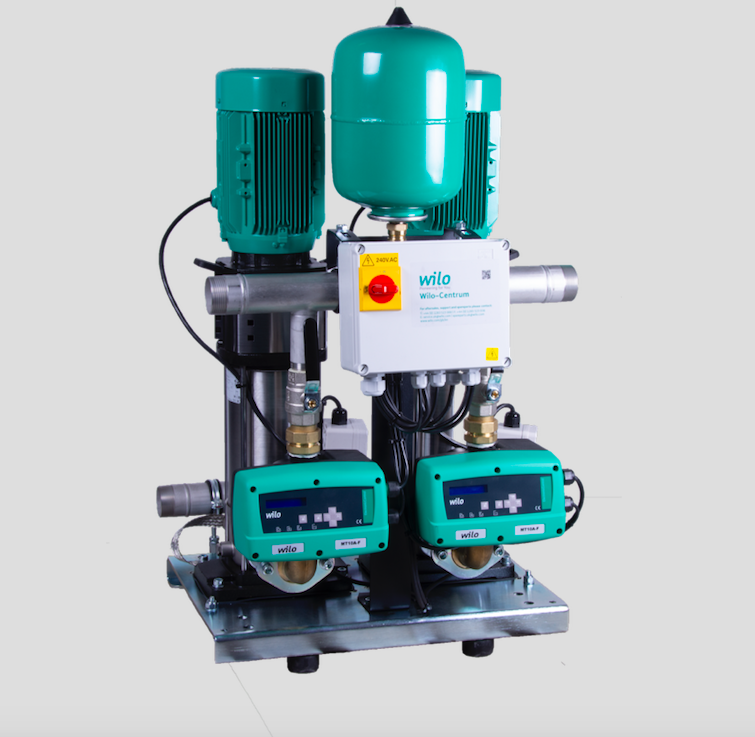

Wilo Centrum DV608
Fully packaged pressure booster set consisting of: 1 to 3 Helix V non self-priming horizontal stainless steel high pressure centrifugal pumps.
1.5 kW motor. R 2 connection.
More about this product
Overview
Fully packaged pressure booster set consisting of: 1 to 3 Helix V non self-priming horizontal stainless steel high pressure centrifugal pumps. Each pump has a 1/4 turn ball valve on suction and a 1/4 turn ball valve and a non return valve on discharge. The discharge manifold is equipped with an 8L diaphragm pressure vessel with through-flow fitting to DN 4807, pressure gauge, air vent. Low Pressure/Level Cut Out Pressure Switch (15-250mBar), optional on the suction manifold.
The Wilo-ElectronicControl starts the pump in automatic mode when the system pressure falls below the set pressure by more than the set pressure difference. Once the system pressure has reached the set pressure, the Wilo-ElectronicControl stops the pump after a time interval that has been previously set.
Specification
| Model | Wilo Centrum DV608 |
|---|---|
| Part number | 29993236 |
| Series | Centrum |
| Rated power P2 | 1.5 kW |
| Max. current | 10 A |
| Max. operating pressure | 25 bar |
| Fluid temperature | 3 °C to 50 °C |
| Ambient temperature | 5 °C to 40 °C |
| Protection class | IP55 |
| Insulation class | F |
| Duty pumps | 2 |
| Standby pumps | 0 |
| Motor efficiency at full load | 84.2 % |
Control panel
| Rated voltage U | 230 V |
|---|---|
| Mains frequency f | 50 Hz |
| Max current | 10 A |
| Min current | 9.1 A |
| Protection class switchgear | IP55 |
Materials
| Pump housing | Stainless steel |
|---|---|
| Impeller | Stainless steel |
| Shaft | Stainless steel |
| Mechanical seal | U3BE3GG |
| Gasket material | EPDM |
Dimensions and weight
| Pipe connection, suction | R 2 |
|---|---|
| Pipe connection, discharge | R 2 |
| Length × width × height | 600 × 830 × 980 mm |
| Net weight | 104 kg |
Features and equipment
The Wilo ElectronicControl protects the pump against
- Dry run
- Excess current
- Excess water temperature
- Frost
- Short-circuit
- Overvoltage
- Undervoltage
- All mounted on a galvanised base frame with anti-vibration mounts.
