Grundfos MAGNA1 Screwed Circulator Pumps (25 & 32, 180mm)

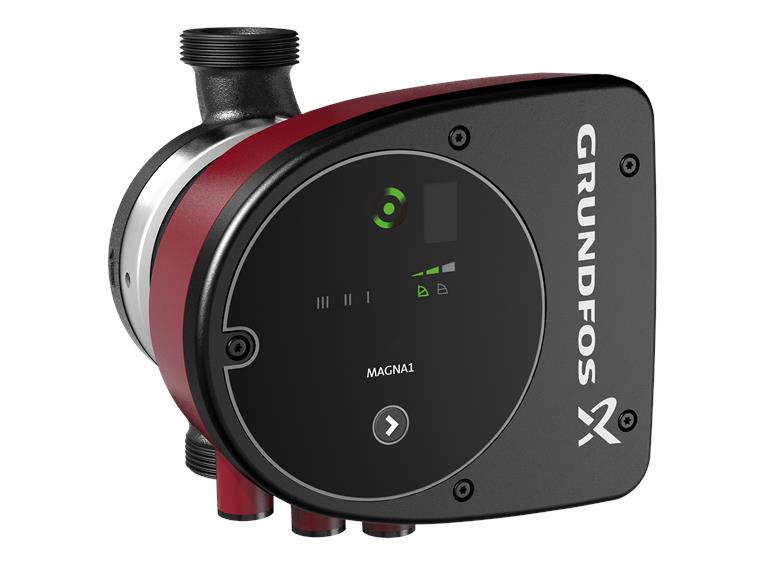

Grundfos MAGNA1 25-60 180mm Circulator Pump 99221217
- Established 1975
- Trusted by thousands of customers
The Grundfos MAGNA1 25-60 (part no. 99221217) is a single-head, cast iron, screwed (union) circulator pump for heating, cooling and ground-source systems. It gives up to 6 m head, has a 180 mm port-to-port length and runs on a single-phase 230 V supply.
MAGNA1 offers nine settings across proportional pressure, constant pressure and constant curve, plus a fault relay and external start/stop input for BMS connection. Set-up and readout with the Grundfos GO app.
More about this product
The Grundfos MAGNA1 25-60 180 1x230V PN10 (Grundfos part number 99221217) is a single-head, cast iron, screwed (union) circulator pump from the Grundfos MAGNA1 range. It delivers up to 6 m head, fits a 180 mm port-to-port gap and connects with a G 1½” union thread. Power input is 9–92 W, so it uses only the energy the system needs at any moment.
MAGNA1 25-60 specifications
| Model | MAGNA1 25-60 180 1x230V PN10 |
|---|---|
| Grundfos part number | 99221217 |
| Pump type | Single-head, cast iron, screwed (union) circulator |
| Maximum head | 6 m |
| Port-to-port length | 180 mm |
| Pipe connection | G 1½” union thread |
| Pressure rating | PN10 (max. operating pressure 10 bar) |
| Supply | 1 x 230 V |
| Power input P1 | 9–92 W |
| Current | 0.09–0.74 A |
| Energy Efficiency Index (EEI) | 0.20 |
| Liquid temperature | -10 to 110 °C |
| Pump housing | Cast iron EN-GJL-200 |
| Impeller | PES 30%GF |
| Insulation class | F |
| Enclosure class | X4D |
| Net weight | 4.5 kg |
| EAN | 5712608941900 |
| Warranty | 2 years (Grundfos) |
Figures from the Grundfos data sheet for 99221217. The pump curve is on the data sheet.
What the model code means
| Code | Meaning |
|---|---|
| MAGNA1 | MAGNA1: 9-setting control with fault relay and start/stop input |
| 25 | Nominal pipe size DN25 |
| 60 | Maximum head 6 m (code is in decimetres) |
| 180 | Port-to-port length 180 mm |
| 1x230V | Single-phase 230 V supply |
| PN10 | Pressure rating PN10 |
Features
Applications
- Wet heating systems: radiators, underfloor heating and air-handling coils
- Chilled water and air-conditioning circuits (liquid down to -10 °C)
- Ground-source heat pump and solar heating circuits
- Light commercial buildings and larger domestic systems
Questions about this pump
Specifications
| Product name | MAGNA1 25-60 |
| Product No | 99221217 |
| EAN number | 5712608941900 |
| Technical | |
| Head max | 60 dm |
| TF class | 110 |
| Approvals on nameplate | CE,VDE,EAC,CN ROHS,WEEE |
| Model | C |
| Materials | |
| Pump housing | Cast iron |
| Pump housing | EN-GJL-200 |
| Pump housing | ASTM A48-200B |
| Impeller | PES 30%GF |
| Installation | |
| Range of ambient temperature | 0 .. 40 °C |
| Maximum operating pressure | 10 bar |
| Pipe connection | G 1 1/2″ |
| Pressure rating | PN10 |
| (@ | 180 mm |
| Liquid | |
| Pumped liquid | Water |
| Liquid temperature range | -10 .. 110 °C |
| Liquid temperature during operation | 60 °C |
| Density | 983.2 kg/m³ |
| Electrical data | |
| Power input – P1 | 9 .. 92 W |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 230 V |
| Maximum current consumption | 0.09 .. 0.74 A |
| Enclosure class (IEC 34-5) | X4D |
| Insulation class (IEC 85) | F |
| Others | |
| Energy (EEI) | 0.20 |
| Net weight | 4.38 kg |
| Gross weight | 4.78 kg |
| Shipping volume | 0.013 m³ |
| Finnish | LVI NO 4615250 |
-
