ALPHA1 15-50N Model B 99415696 - Anglian Pumping Services

Name: ALPHA1 15-50N Model B 99415696
Brand: Grundfos
SKU: 99415696
Price: 440.4 GBP
Availability: InStock

ALPHA1 15-50N Model B 99415696 - Image 2

ALPHA1 15-50N Model B 99415696 - Image 3

ALPHA1 15-50N Model B 99415696 - Image 4

In stock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

Grundfos ALPHA1 15-50 N 130 circulator pump, single-phase

ALPHA1 N is a high-efficiency circulator pump with stainless-steel pump housing suitable for domestic hot-water systems. Featuring integrated differential-pressure control as well as constant-curve mode. This model has a single-phase motor, with a rated duty of 25 l/min at 2.8 m head (0.27 bar).

26 W

Power input

25 l/min

Rated flow

2.8 m

Rated head

1 x 230V

Supply

Single-phaseStainless steelIPX4DUp to 110 °C

Full Description

More about this product

Full Description

Applications

Commercial heating
Domestic heating
Domestic hot water recirculation

Specification

Model	Grundfos ALPHA1 15-50 N 130
Grundfos part number	99415696

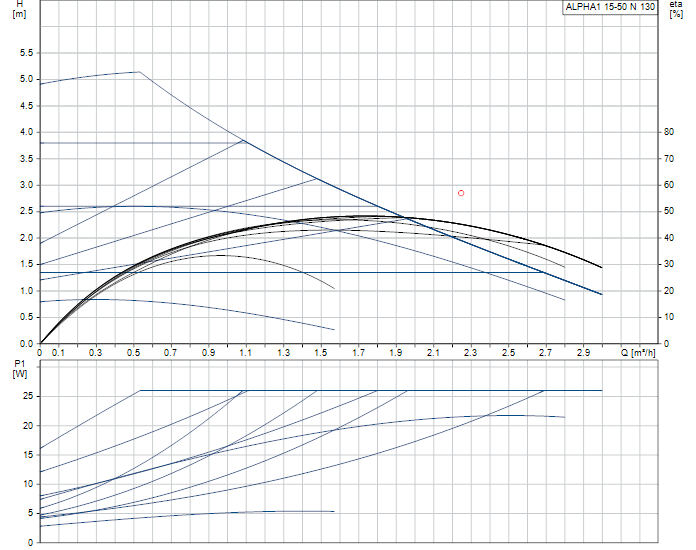

Rated duty point	25 l/min (1.5 m³/h) at 2.8 m (0.27 bar) head
Maximum head	5 m (0.49 bar)
Power input (P1)	26 W
Supply voltage	1 x 230 V, 50 / 60 Hz
Connections	G 1 1/2"

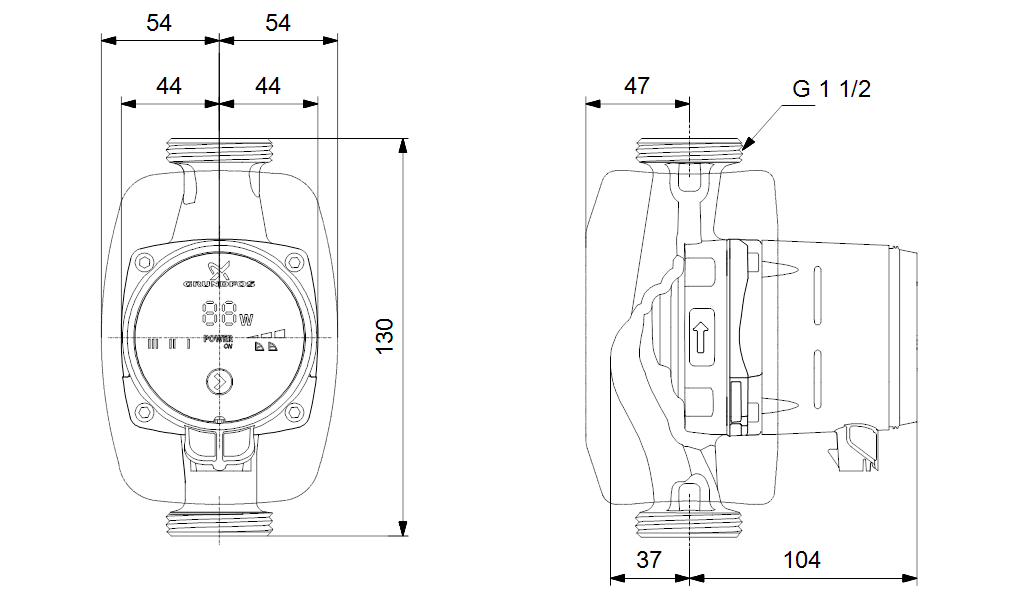

Port-to-port length	130 mm
Pump housing	Stainless steel
Impeller	PES 30% GF + PESU-GF20%
Liquid temperature	2 °C to +110 °C
Max. operating pressure	10 bar
Pressure rating	PN 10
Max. ambient temperature	40 °C
Max. current	0.24 A
Enclosure	IPX4D, insulation class F
Approvals	CE, UKCA
Net weight	2.04 kg

Key features

Materials

Pump housing: Stainless steel, impeller: PES 30% GF + PESU-GF20%.

Enclosure

Enclosure IPX4D, insulation class F.

Frequently asked questions

What supply does it need?

1 x 230 V, 50 / 60 Hz.

What temperature and pressure can it take?

Liquid temperature up to 110 °C and a maximum operating pressure of 10 bar.
