WaterBoost – Coffin
WB-Coffin 200 Mini3 Variable Speed 2205210
In stock
- Established 1975
- Trusted by thousands of customers

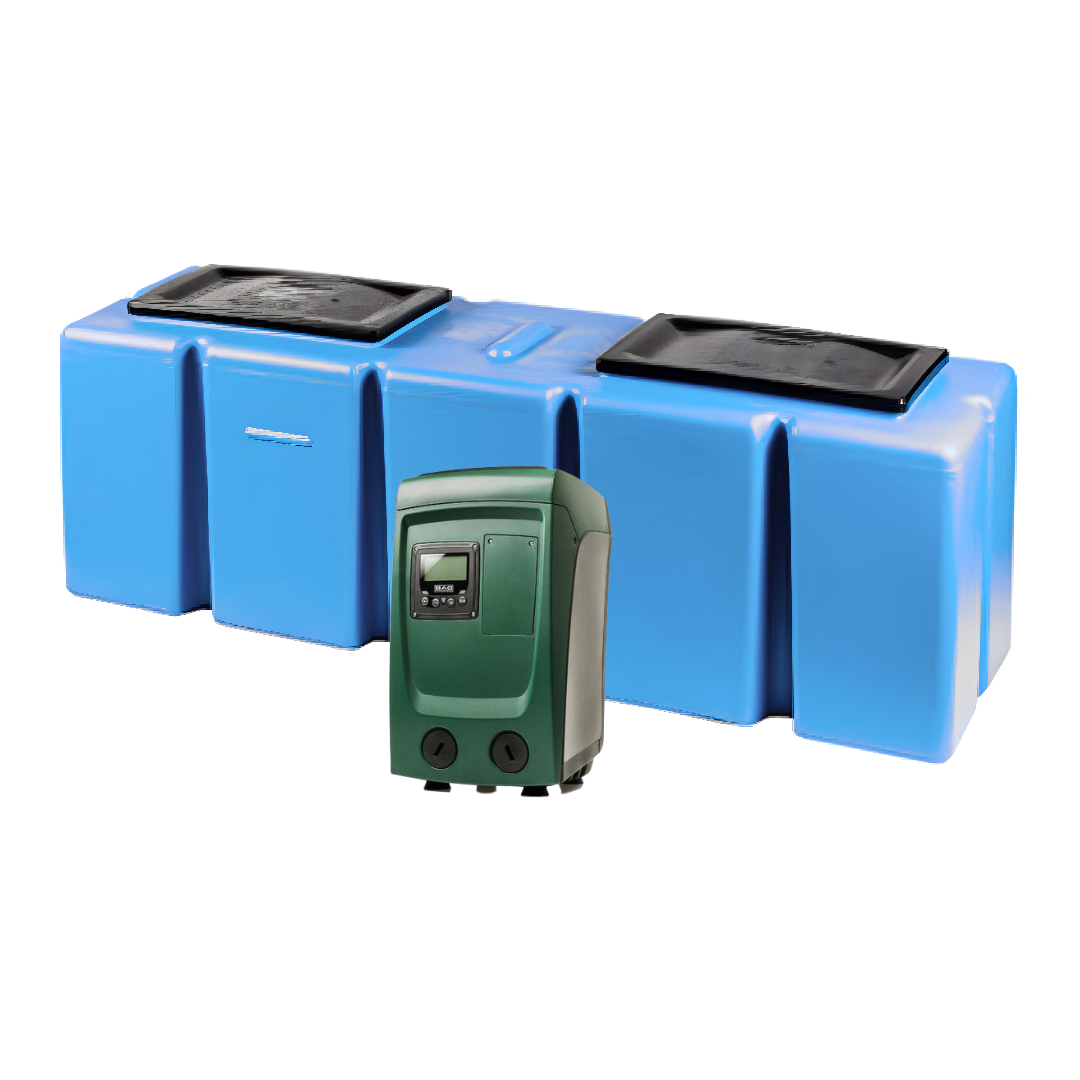

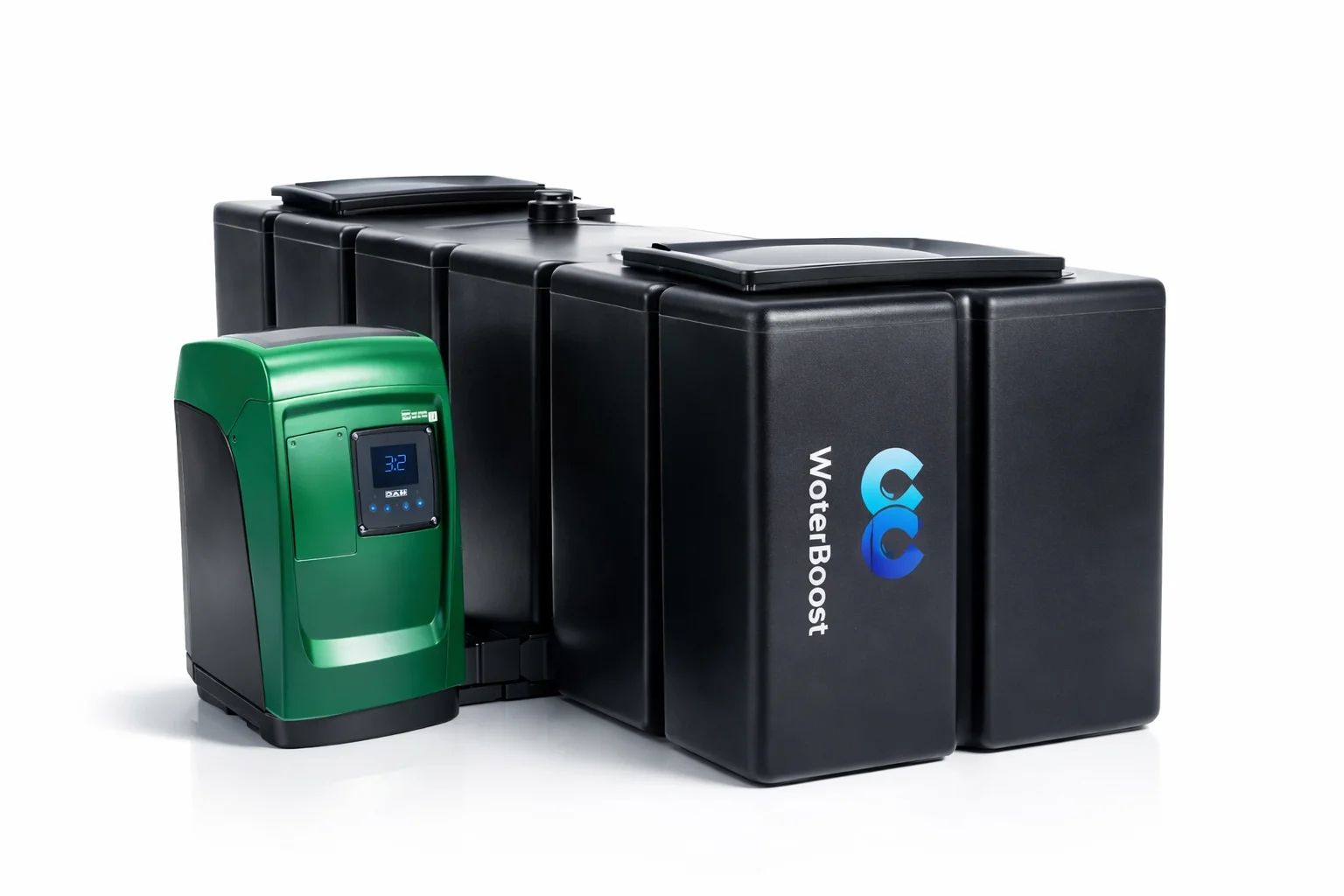

The WaterBoost WB-Coffin 200 Mini3 is a compact, variable-speed water boosting system engineered to overcome low water pressure or inadequate flow in domestic and light commercial applications. Designed specifically for installations where space is restricted, it offers a highly practical and cost-effective solution while still delivering exceptional reliability, performance, and build quality.

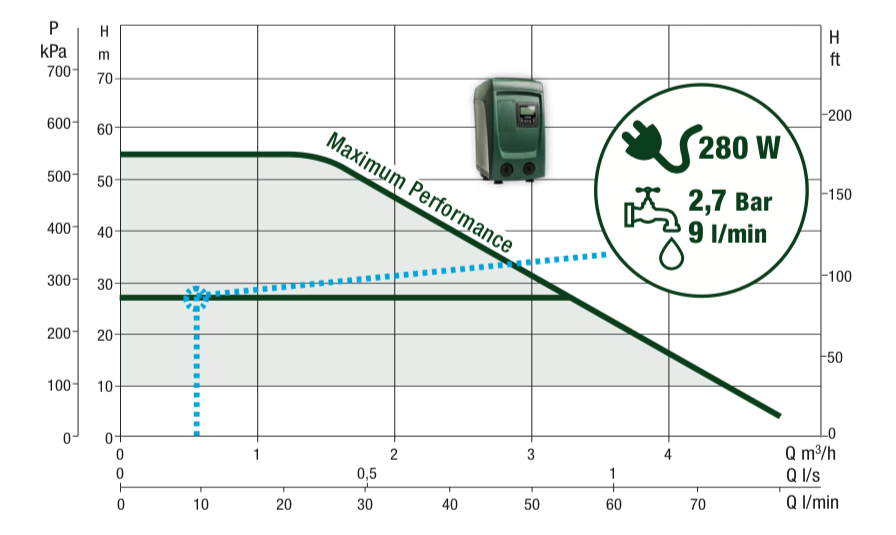

The system combines a 200-litre WRAS-approved coffin-style Polytank with the proven DAB Esybox Mini3 booster pump, delivering efficient and consistent pressure boosting of up to 50 litres per minute at 3 bar. This makes it an ideal choice for improving water performance to showers, taps, and household appliances without the footprint or complexity of larger boosting systems.

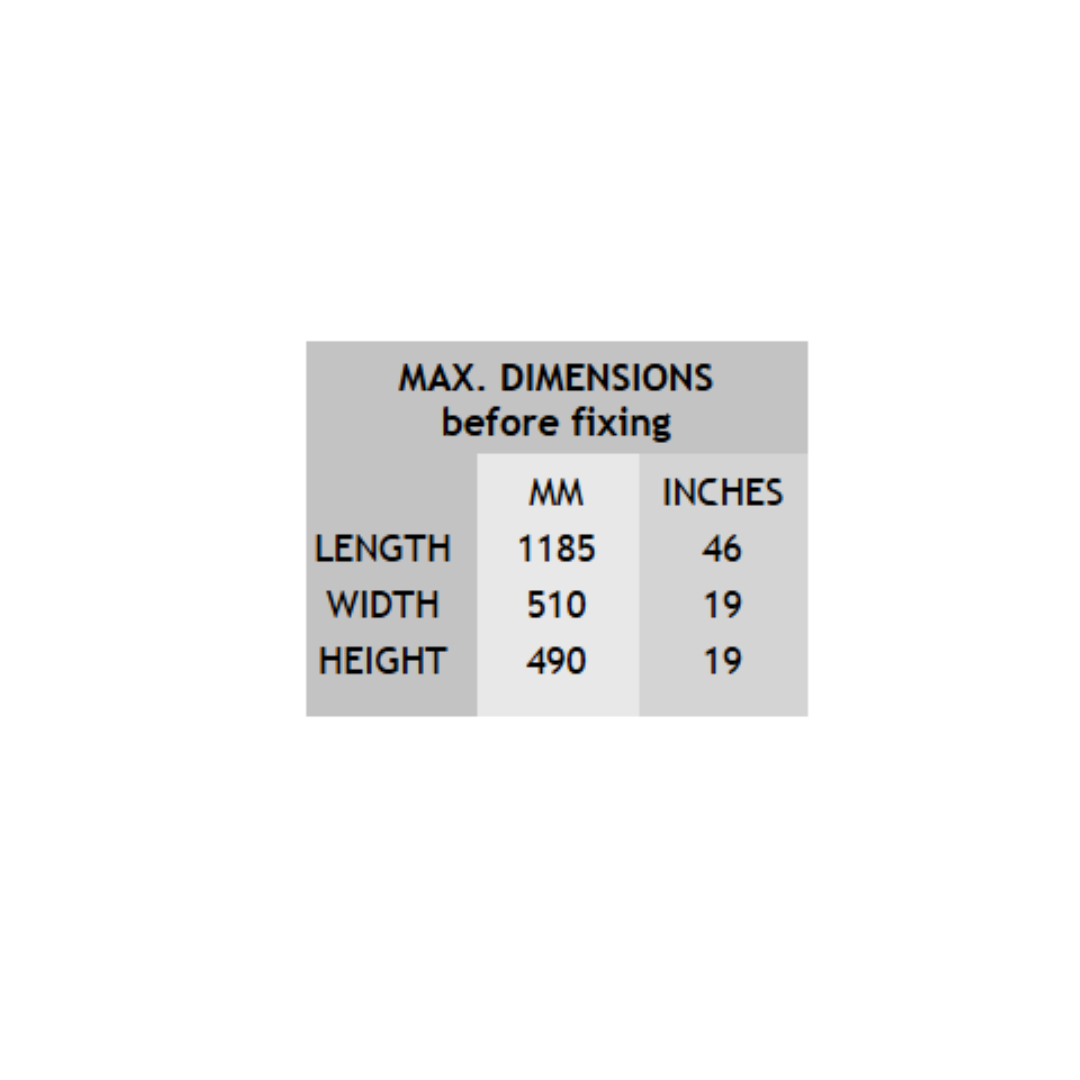

With a compact footprint of 1185mm (L) × 510mm (W) × 490mm (H), the WB-Coffin 200 Mini3 is perfectly suited to installations where height restrictions or limited access are key considerations, including garages, cupboards, and plant rooms.
For added convenience, the tank is supplied pre-fitted with a By-law 30 kit and ½” ball valve, and all interconnecting pipework is included as standard, ensuring installation is swift, clean, and straightforward. The Mini3’s advanced variable-speed control provides smooth, stable pressure while maintaining energy-efficient operation and reduced running costs.
More about this product
WB-Coffin 200 Mini3 – Variable Speed System Contents

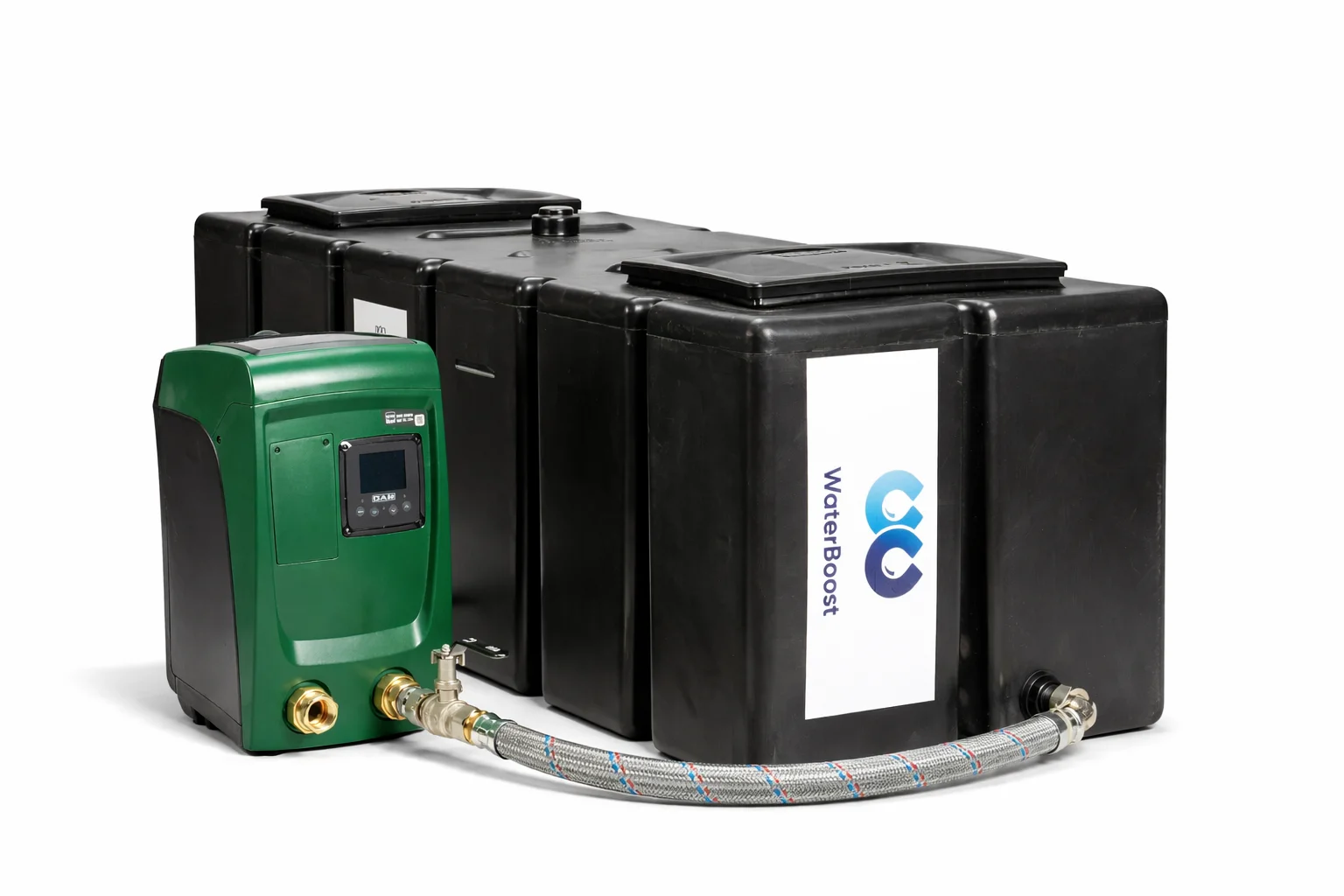

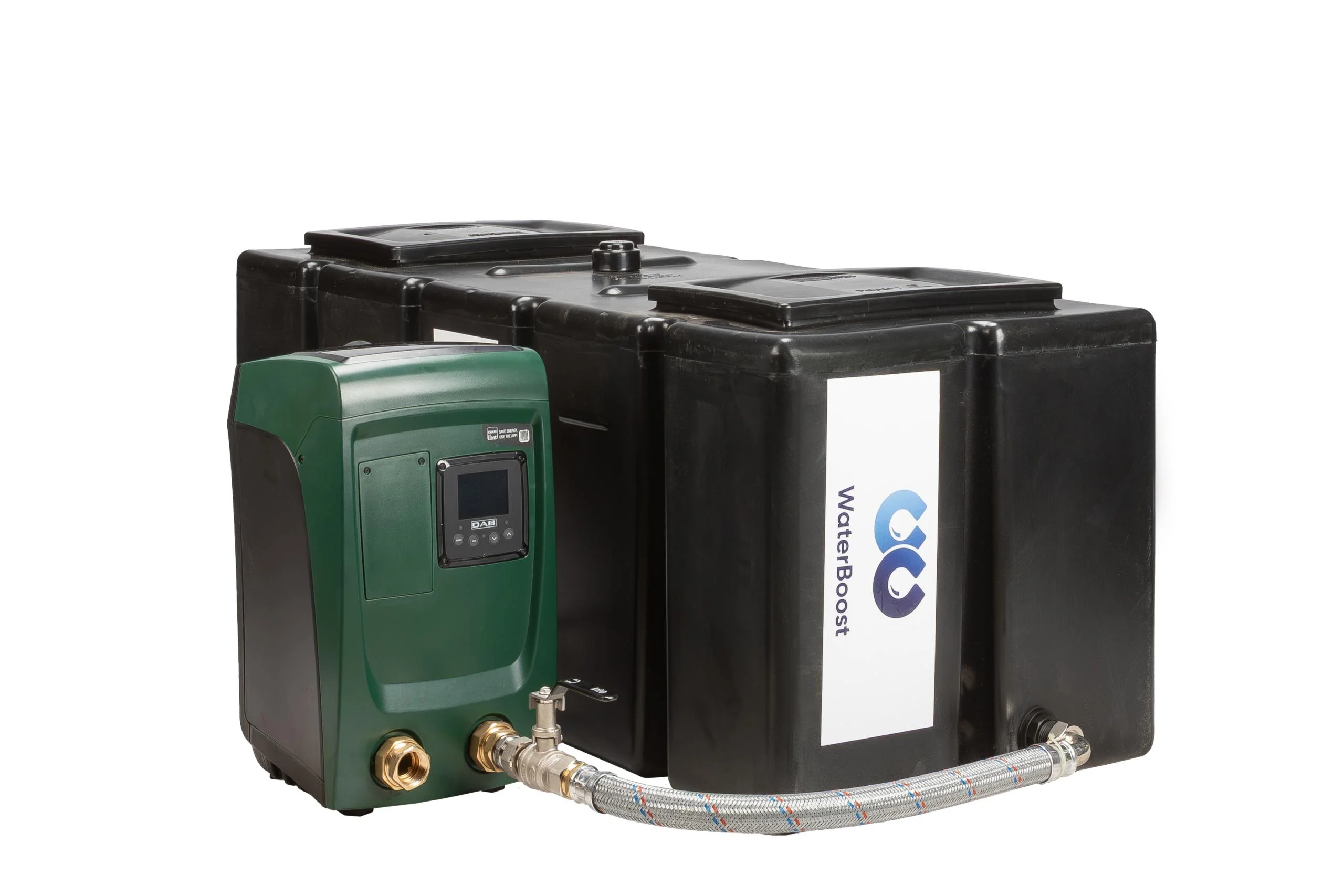

The WB-Coffin 200 Mini3 is supplied as a complete, ready-to-install water boosting system, combining a WRAS-approved coffin tank with a high-efficiency variable-speed booster pump.
System Includes
-
200-litre WRAS-approved Polytank (coffin configuration)
-
DAB Esybox Mini3 variable-speed booster pump
-
Integrated inverter control
-
Supplied with 3-year manufacturer’s warranty
-
-
½″ ball float valve and float assembly
-
Tank-to-booster interconnecting pipework (pre-configured for ease of installation)
All components are selected to ensure reliable performance, compliance with UK water regulations, and straightforward installation.
Tank Specification
-
WRAS-approved Polytank Byelaw 30 kit
-
Installation and fitting instructions included
-
½″ BS1212 Part 2 ball valve with 4½″ float
-
Ball valve back plate
-
22 mm compression tank connector
-
15 mm × ½″ angled service valve

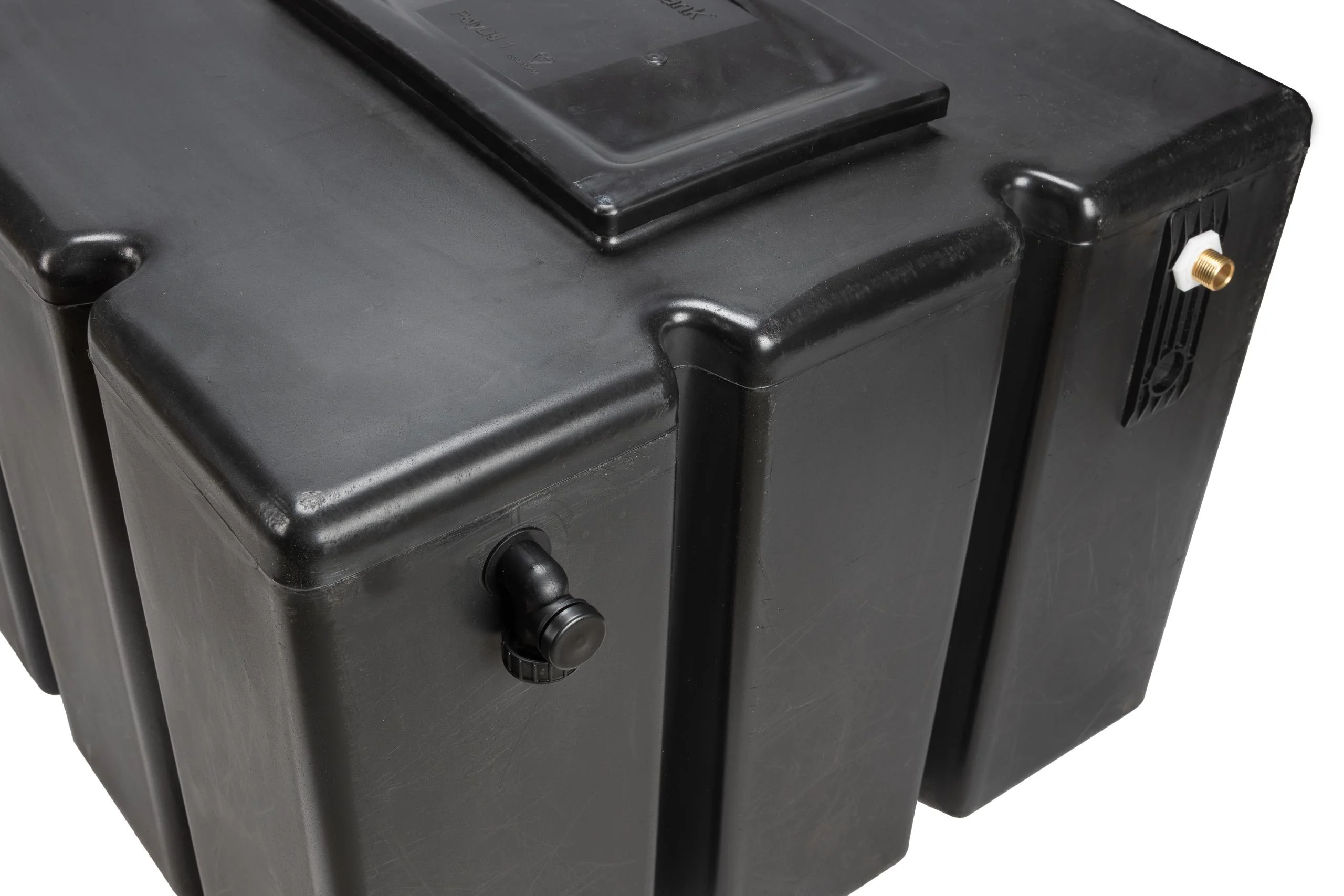

The coffin-style tank design provides a compact, low-profile solution, ideal for installations with restricted headroom.

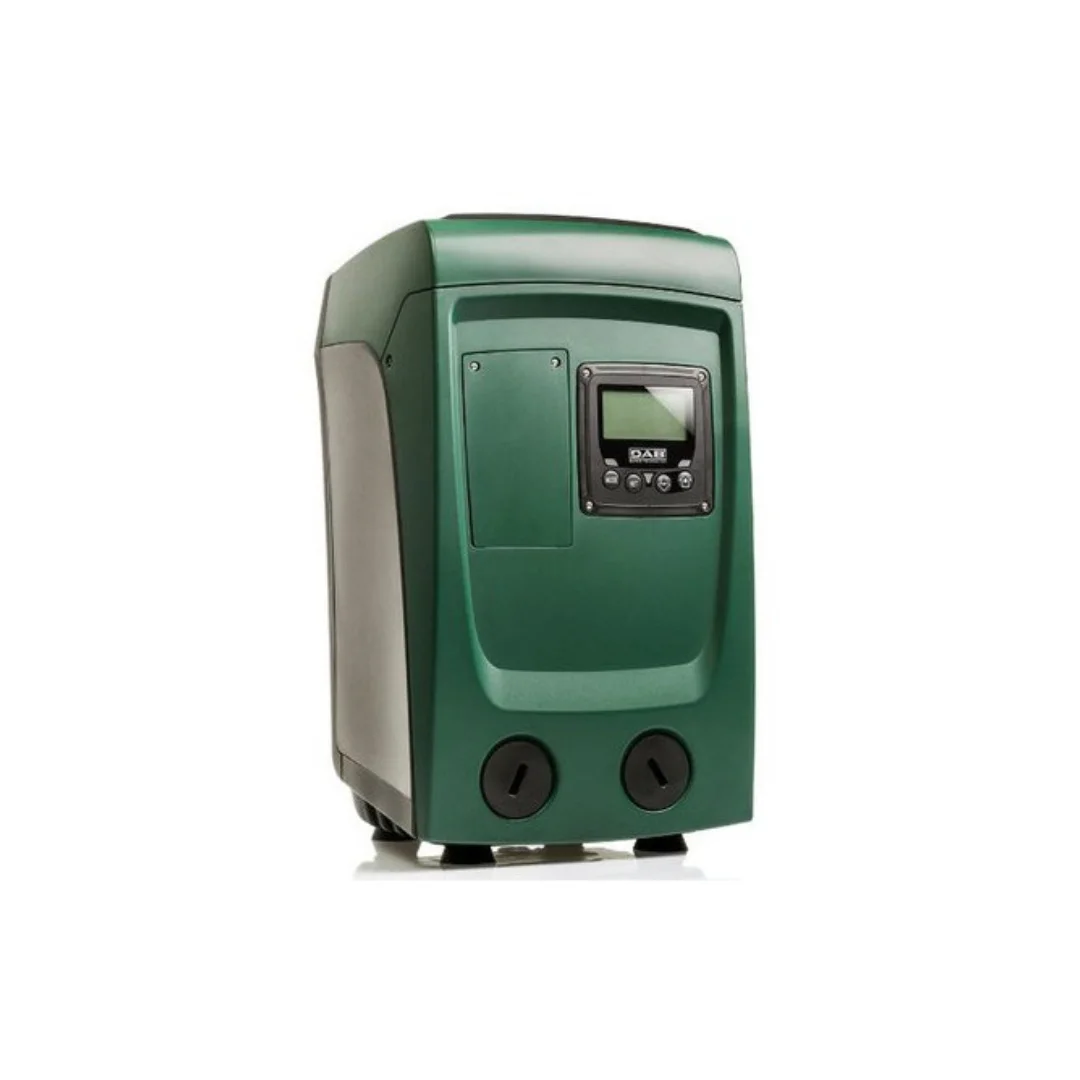

Booster Pump Overview – DAB Esybox Mini3
The DAB Esybox Mini3 is a proven, best-selling water booster pump, widely used in domestic and small commercial installations. Fully integrated and digitally controlled, it automatically adjusts pump speed to maintain consistent water pressure, even under fluctuating demand.
Compact, energy-efficient, and exceptionally quiet in operation, the Mini3 delivers smooth pressure boosting while minimising energy consumption and running costs. Its all-in-one design makes it a reliable and installer-friendly choice for tank-fed water boosting systems.
-
Esybox Mini3 PDFDownload
-
manual PDFDownload
