Powertank CAT5 Kiosk Booster System
Powertank CAT5 Kiosk Booster System – 15ltr
- Established 1975
- Trusted by thousands of customers
The Powertank CAT5 Kiosk Booster System is a single-pump 15 litre CAT5 booster set with a type AB air gap, delivering up to 25 l/min at 1 bar and 8 l/min at 3 bar.
It suits bin stores, bib taps, irrigation, window cleaning or any CAT5 application. A robust IP54 GRP kiosk with a full opening, hinged, lockable door houses the set, and you can mount it on a wall or floor, inside or outside.
More about this product
Product overview
The Powertank CAT5 Kiosk Booster System is a single-pump CAT5 booster set with a 15 litre polyethylene tank and a type AB air gap for Fluid Category 5. Its fixed speed 0.30 kW peripheral pump delivers 25 l/min at 1 bar, 16 l/min at 2 bar and 8 l/min at 3 bar on a 240 V 50 Hz supply.

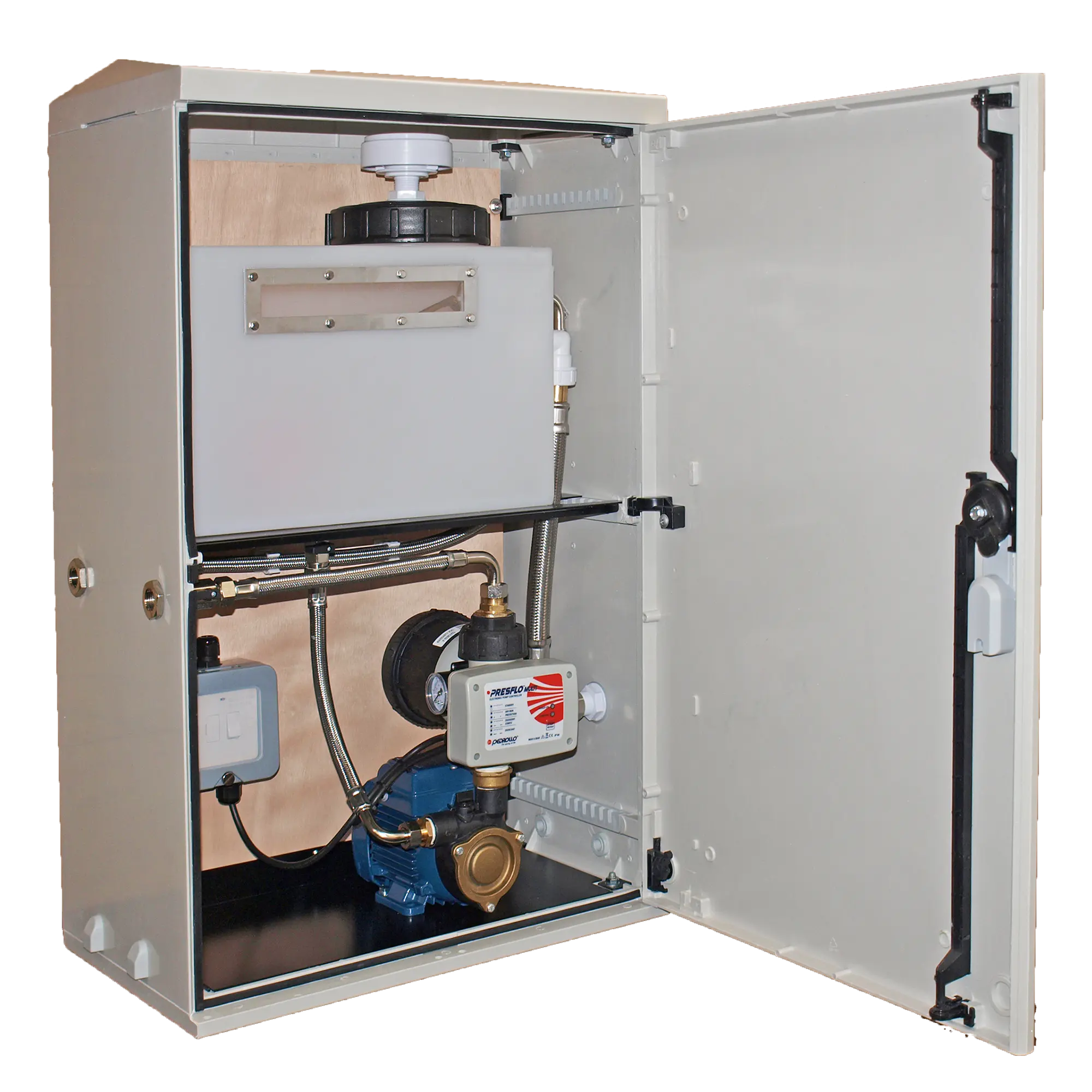

A robust IP54 GRP enclosure with a full opening, hinged, lockable door houses the whole set. You can mount it on a wall or floor, internally or externally, and all mechanical and electrical connections terminate outside the kiosk: ½″ BSP inlet and outlet, a ¾″ overflow and a 20 mm electrical entry. It arrives with a 2 m mains cable and a 13 A fused plug, and a 230 V AC frost heater is available as an option.
Key features
Typical applications
Performance
| Pressure | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|
| Flow (l/min) | 25 | 16 | 8 | – | – |
Fixed speed peripheral pump: 0.30 kW / 0.5 HP, 2.3 A.
Technical specifications
| Brand / Series | Powertank — CAT5 Kiosk |
| Model | 15ltr CAT 5 Kiosk Fixed Speed |
| Stock code | 2603330 |
| Pumps | 1 × fixed speed peripheral pump |
| Motor power (P2) | 0.30 kW / 0.5 HP |
| Current | 2.3 A |
| Power supply | 240 V 50 Hz single-phase |
| Mains cable | 2 m, fitted with a 13 A fused plug |
| Performance | 25 l/min at 1 bar, 16 l/min at 2 bar, 8 l/min at 3 bar |
| Tank | 15 litre polyethylene |
| Air gap | Type AB (Fluid Category 5) |
| Enclosure | IP54 GRP, full opening hinged lockable door |
| Inlet | ½″ BSP |
| Outlet | ½″ BSP |
| Overflow | ¾″ |
| Electrical entry | 20 mm |
| Pressure rating | 8 bar |
| Ambient temperature | 40 °C |
| Mounting | Wall or floor, internal or external |
| Frost heater | Optional, 230 V AC |
| Dimensions | L 320 × W 528 × H 872 mm |
| Weight | 32 kg |
| Weight when full | 1 litre = 1 kg, plus the weight of the empty tank |
Installation checklist
Frequently asked questions
What is a CAT5 AB air gap?
A type AB air gap gives Fluid Category 5 backflow protection, for applications that need increased protection such as food washing and packing stations, abattoirs, hygienic rooms, surgeries and laboratories.
What flow and pressure does it give?
25 l/min at 1 bar, 16 l/min at 2 bar and 8 l/min at 3 bar.
Can I install it outside?
Yes. You can mount it on a wall or floor, internally or externally, and the kiosk is IP54 rated.
Is a frost heater available?
Yes, as an option. The frost heater runs on 230 V AC.
How does it plug in?
It comes with a 2 m mains cable fitted with a 13 A fused plug, for a 240 V 50 Hz supply.
-
