Pedrollo DG-Blu Automatic pressurization system with inverter
Pedrollo DG-Blu 5 Automatic Variable Speed Booster Pump
- Established 1975
- Trusted by thousands of customers
DG-BLU 5 is a cutting-edge, automatic pressurization system featuring a high-efficiency, self-priming pump with multiple impellers. It comes complete with a storage tank, pressure
and flow sensors, and a check valve, all designed to work quietly and efficiently.

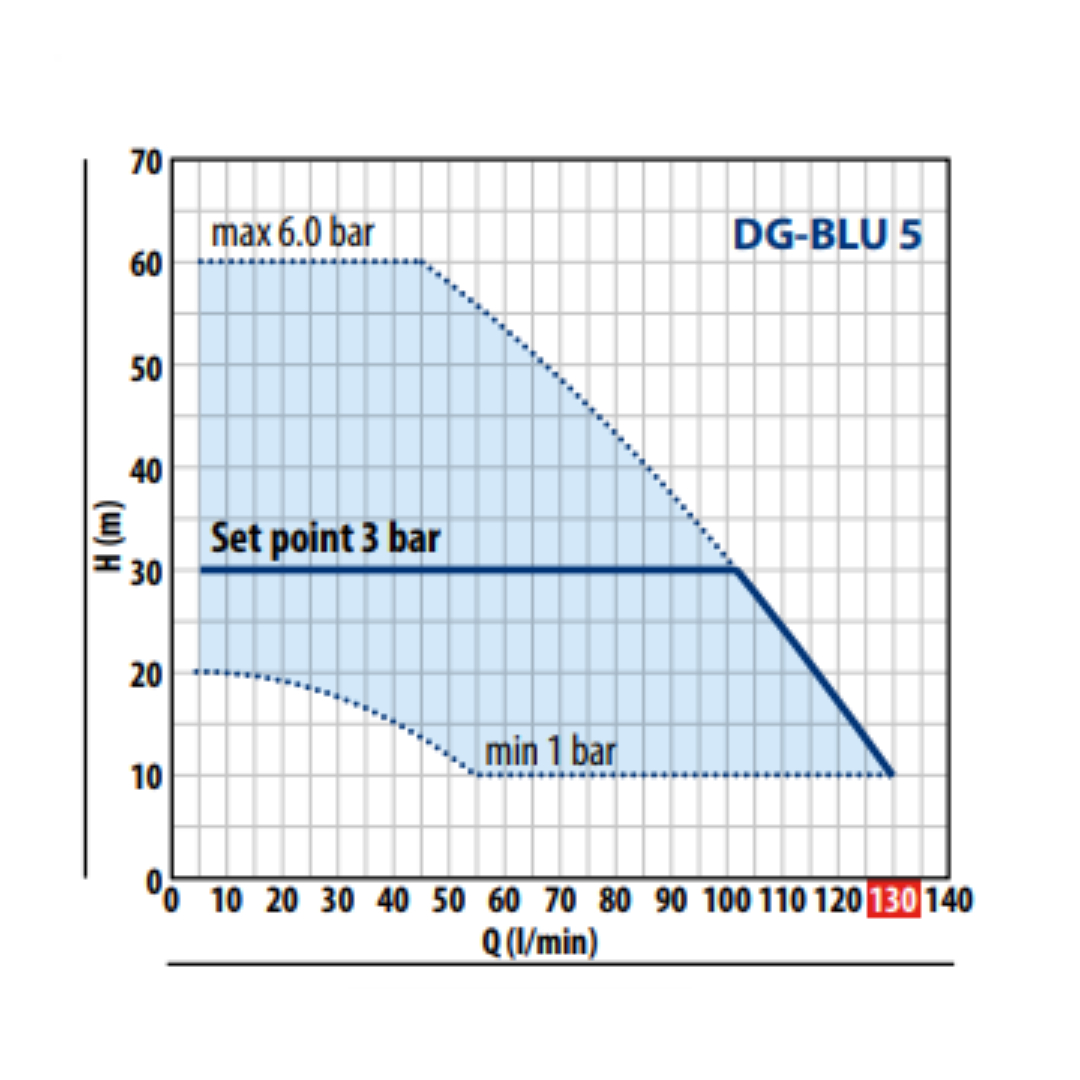

Designed to produce an efficient flow of 100 litres/min at 3bar.
This compact powerhouse stands out for its advanced electronic inverter control, which intelligently manages the system performance by:
– keeping the pressure constant according to water usage;
– monitoring hydraulic and electrical conditions to safe guard against malfunctions;
– allowing for integration with another DG-BLU unit through an optional expansion card;
– adapting seamlessly to any type of pressurization system, even existing ones;
– reducing electrical consumption with lower startup and running currents, achieving greater energy efficiency.
More about this product
TECHNICAL DATA
Power supply: 1~ 230 V ± 10%
Frequency: 50/60 Hz
Insulation: class F
Maximum current absorbed:
– 7.5 A DG-BLU 3
– 10 A DG-BLU 5
Maximum power input P1:
– 1.0 kW DG-BLU 3
– 1.5 kW DG-BLU 5
Protection rating: IP X4
Set point from the factory: 3 bar
1.5 metres cable with Schuko plug
APPLICATION LIMITS
• Manometric suction head up to 8 m
• Liquid temperature between 0 °C and +40 °C
• Ambient temperature between 0 °C and +40 °C
• Max. port pressure 4 bar
• Max pressure 10 bar
• Continuous running duty S1
-
Data Sheet PDFDownload
