Grundfos JP5 Water Pumps
Grundfos JP5 400v Female threads 46530011
Out of stock
- Established 1975
- Trusted by thousands of customers

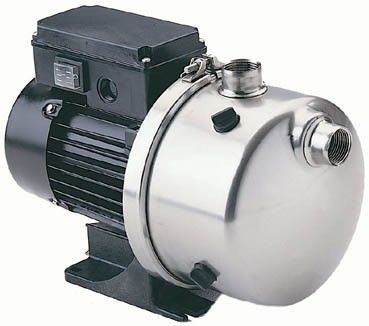

Grundfos JP5 400v
Grundfos JP5 Pumps suits a number of domestic or commercial water supply jobs.
Close-coupled centrifugal pumps with built-in ejector system designed to remain primed even in the presence of water-dissolved gases.
More about this product
High-quality engineering and stainless steel makes the JP5 pump lightweight, durable and low-maintenance.
Low noise, vibration-free and compact, the JP5 pump is ideal for use in confined spaces or where noise needs to be minimised.
Single phase models with built-in motor protection are perfect for domestic applications and the 3 phase pump models work well for industrial use.
Suitable for:
- Home use
- Gardens
- Commercial
- Industrial
Features and benefits:
- High performance
- Compact unit
- Durable and lightweight stainless steel
- Low maintenance
- Low noise and vibration
| Product name | JP 5 A-A-CVBP |
| Product No | 46530011 |
| EAN number | 5700391191916 |
| Technical | |
|---|---|
| Head max | 43 m |
| Primary shaft seal | CVBP |
| Pump version | A |
| Model | D |
| Ejector valve | yes |
| Materials | |
|---|---|
| Pump housing | Stainless steel |
| Pump housing | DIN W.-Nr. 1.4301 |
| Pump housing | AISI 304 |
| Impeller | Stainless steel |
| Impeller | DIN W.-Nr. 1.4301 |
| Impeller | AISI 304 |
| Material code | A |
| Installation | |
|---|---|
| Range of ambient temperature | 0 .. 40 °C |
| Maximum operating pressure | 6 bar |
| Liquid | |
|---|---|
| Pumped liquid | Water |
| Liquid temperature range | 0 .. 40 °C |
| Liquid temperature during operation | 20 °C |
| Density | 998.2 kg/m³ |
| Electrical data | |
|---|---|
| Power input – P1 | 780 W |
| Phase | 3 |
| Enclosure class (IEC 34-5) | IP44 |
| Insulation class (IEC 85) | F |
| Type of cable plug | NONE |
| Cable | N |
| Controls | |
|---|---|
| Presscontrol | without press control |
| Switch | on/off switch not included |
| Others | |
|---|---|
| Net weight | 8.5 kg |
| Gross weight | 9.4 kg |
| Shipping volume | 0.026 m³ |
-
data sheet PDFDownload
