Grundfos JP Pumps
Grundfos JP4-54 + PM1 booster pump 230v 99463908
In stock
- Established 1975
- Trusted by thousands of customers

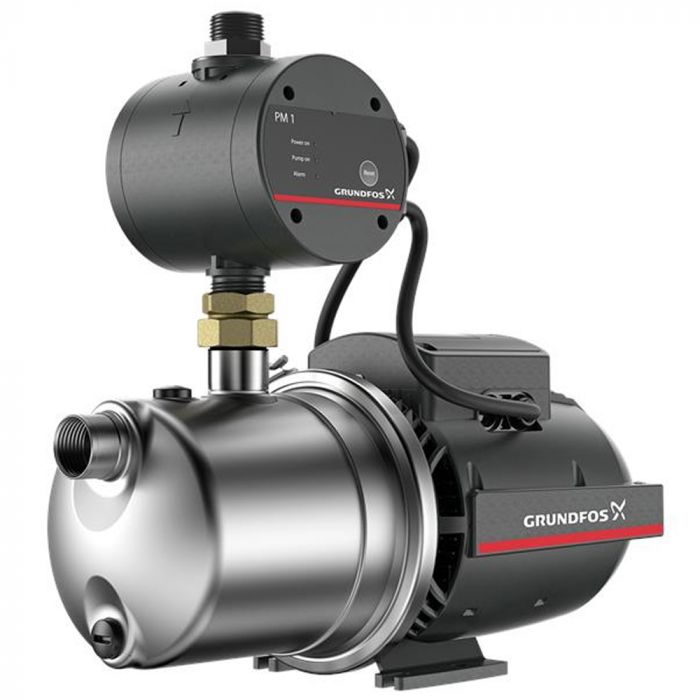

Grundfos JP 4-54 PM1 booster consists of a Grundfos JP pump and a pressure manager.

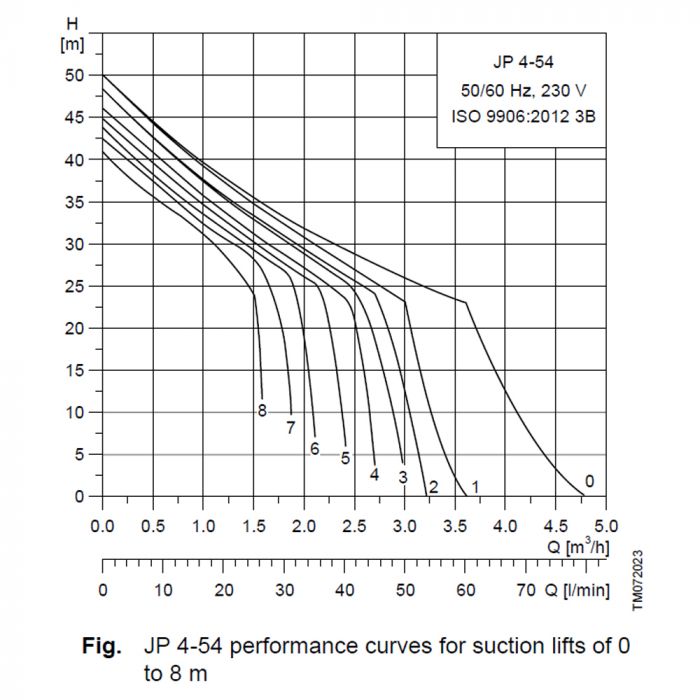

The design is robust and built upon corrosion-free materials to ensure a long lifetime. This booster set ensures optimum self-priming properties, featuring a suction-lift up to 8 meters. The self-priming pump also ensures a stable operation as is it able to lift liquid from below the inlet level and can handle a mix of air and liquid until the pump reaches a fully-primed pumping condition.
The JP pump has built-in thermal protection, which immediately stops the pump if it overheats. The motor is air cooled and equipped with oversized, sealed, greased-for-life ball bearings to ensure silent operation and minimum service.
More about this product
| Liquid: | ||
| Pumped liquid: | Water | |
| Liquid temperature range: | 0 .. 40 °C | |
| Selected liquid temperature: | 20 °C | |
| Density at selected liquid temperature: | 998.2 kg/m³ | |
| Technical: | ||
| Rated flow: | 4 m³/h | |
| Primary shaft seal: | BBVP | |
| Approvals on nameplate: | CE,EAC | |
| Curve tolerance: | ISO9906:2012 3B | |
| Rated driver speed: | 2800 rpm | |
| Materials: |
| Pump housing: | Stainless steel | |
| EN 1.4301 | ||
| AISI 304 | ||
| Impeller: | Composite | |
| Installation: | ||
| Range of ambient temperature: | 0 .. 40 °C | |
| Maximum operating pressure: | 6 bar | |
| Maximum permissible inlet pressure: | 1 bar | |
| Pump inlet: | G1 | |
| Pump outlet: | G1 | |
| Electrical data: | ||
| Power input – P1: | 1130 W | |
| Rated power – P2: | 0.746 kW | |
| Mains frequency: | 50 Hz | |
| Rated voltage: | 1 x 230 V | |
| Rated current: | 5.1 A | |
| Starting current: | 17.8 A | |
| Capacitor size – run: | 16 µF/450 V | |
| Enclosure class (IEC 34-5): | IP44 | |
| Insulation class (IEC 85): | F | |
| Type of cable plug: | SCHUKO | |
| Others: | ||
| Net weight: | 11 kg | |
| Gross weight: | 12 kg | |
| Shipping volume: | 0.026 m³ | |
-
data sheet PDFDownload
