Lowara Genyo 8A F22 pump controller 109120180

Name: Lowara Genyo 8A F22 pump controller 109120180
Brand: Lowara
SKU: 22/08/8195
Price: 134.4 GBP
Availability: InStock

Lowara Genyo 8A F22 pump controller 109120180 - Image 2

Lowara Genyo 8A F22 pump controller 109120180 - Image 3

In stock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

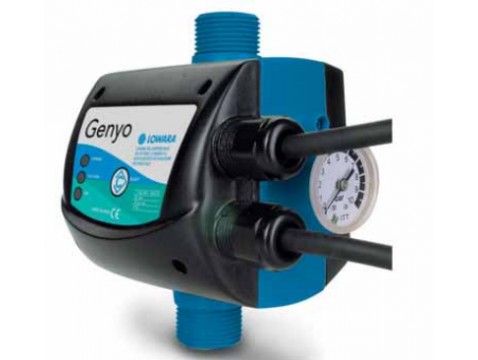

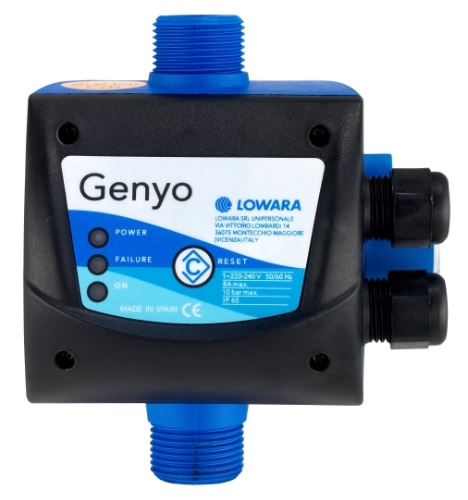

The Lowara Genyo 8A F22 pump controller (109120180) is a compact electronic pressure/flow switch that starts and stops a pump automatically on actual water demand. Rated 8A, with fixed start pressure 2.2 bar, built-in dry-running protection and manual restart after a water failure.

It suits both surface and submersible pumps, keeps pressure steady at the taps, needs no maintenance and is a compact alternative to a traditional diaphragm tank set-up, with a patented back-up chamber to cover small leaks and drips.

Max. current

2.2 bar

Fixed start pressure

10 bar

Max. pressure

10 m³/h

Max. flow

Pressure/flow switch8A ratingDry-run protectionManual restartPart no. 109120180

Check your pump’s current and the pressure you need before ordering. Not sure this is the right model? Send us your application details and we’ll confirm before you order.

Full Description

More about this product

Full Description

Key specifications

Model	Lowara Genyo 8A F22 pump controller
Lowara part no.	109120180
Type	Electronic pressure/flow switch
Max. current	8A inductive
Pressure setting	Fixed start pressure 2.2 bar
Supply	Single phase 220–240V, 50/60 Hz
Restart after water failure	Manual
Max. pressure	10 bar
Max. flow	10 m³/h
Operating temperature	0–60°C
Connections	R 1″ inlet and outlet
Protection	IP65
Supplied with	Pressure gauge (0–10 bar)

Features

Demand-based control

Starts the pump when a tap opens and stops it when flow stops.

Dry-run protection

Integrated protection stops the pump if the water supply fails.

Steady pressure

No pressure fluctuations at the outlets, at a constant operating point.

Pressure gauge included

Supplied with a 0–10 bar pressure gauge.

Low maintenance

Compact, maintenance-free alternative to traditional diaphragm tanks.

Built for

Domestic pressure boosting

Single and multi-family homes.

Borehole & well supply

Pressure control on submersible pumps.

Garden & irrigation

Steady pressure for small irrigation and watering.

Leisure & public

Campsites, sports facilities and bathing establishments.

FAQs

What does the start pressure mean?

It is the pressure at which Genyo restarts the pump when water is drawn. Pick one higher than the static height of your highest outlet above the Genyo.

What size pump can it control?

This is the 8A version — check your pump’s full-load current is within 8A (inductive).

Does it protect against dry running?

Yes — dry-running protection is built in. The 8A version needs a manual restart after a water failure.

Downloads

data sheet PDF
Download

Delivery Information

Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.

Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).

Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.

Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.

Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.

Frequently Asked Questions

Quick answers to common questions about the Lowara Genyo 8A F22 pump controller 109120180. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.

What is a water booster pump?

A water booster pump increases the pressure of an existing water supply to give stronger flow at taps, showers and appliances. It can be a small inline pump fitted to the incoming mains, or a larger pump and tank set that draws from a break tank to feed the whole house. Boosters do not create water – they raise the pressure of the water already coming in.

What is the difference between an inline booster and a tank-and-pump booster?

An inline booster connects straight onto the incoming mains and is limited to 12 litres per minute under UK water regulations – examples include the Salamander HomeBoost and WaterBoost WB-Compact. A tank-and-pump booster, such as the Grundfos Home Booster or DAB Esybox with Esytank, draws from a break tank and can deliver much higher flow rates for larger homes with multiple bathrooms.

What is a variable speed booster pump?

A variable speed booster uses an inverter to adjust pump speed in real time to match demand. It maintains constant pressure as outlets open and close, runs more quietly than a fixed-speed pump and typically saves up to 50 per cent of the energy a fixed-speed equivalent would use. The DAB Esybox, DAB Esybox Mini 3 and Grundfos Scala2 are common variable speed examples.
