Ebara 3 GPE MATRIX 400v

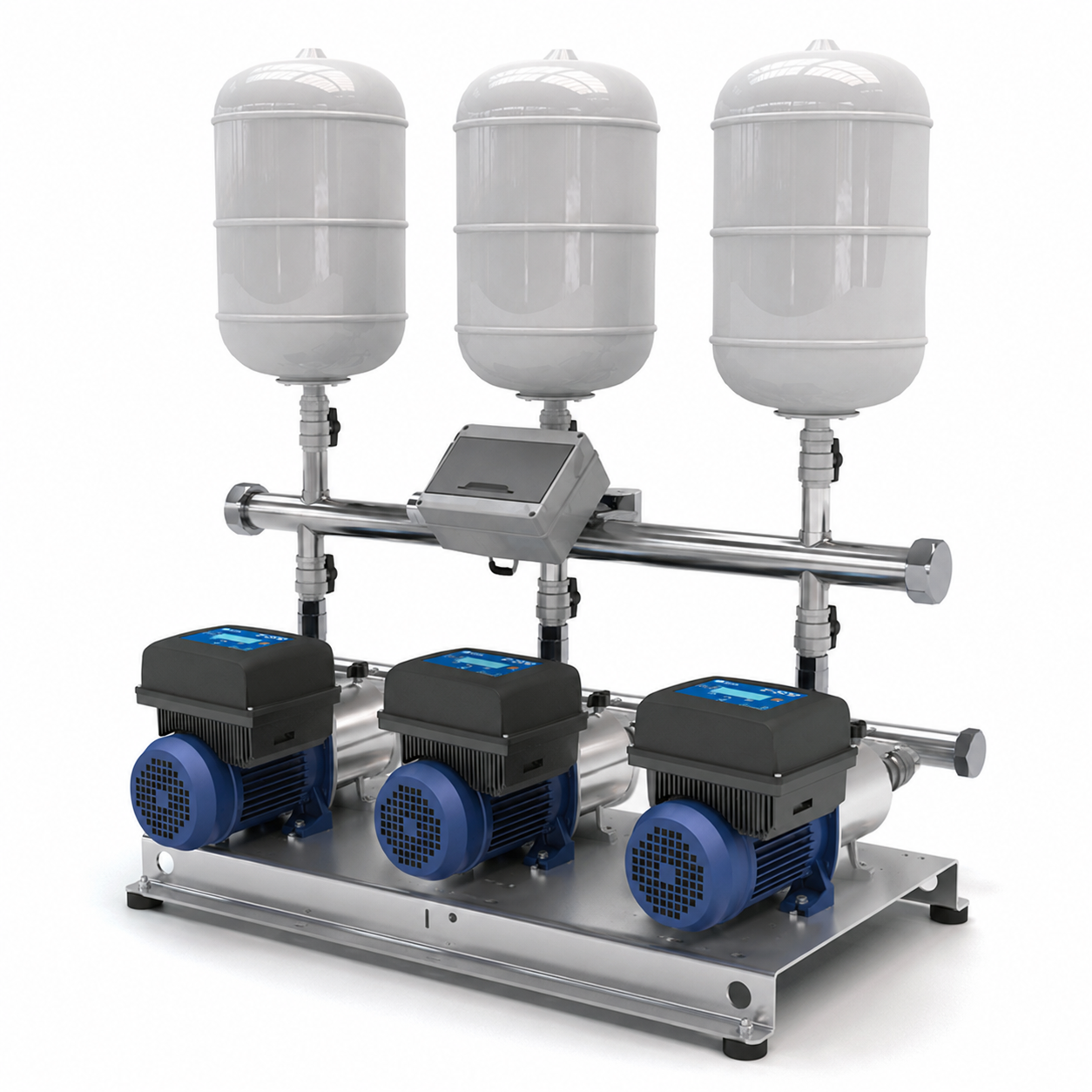

Ebara 3GPE MATRIX 18-6T/4.0 ESPT – 400v – 2001708322
- Established 1975
- Trusted by thousands of customers
The Ebara 3GPE MATRIX 18-6T/4.0 ESPT is a three-pump variable speed booster set. Three 6-stage Matrix 18 horizontal multistage pumps in AISI 304 stainless steel each have their own 4 kW IE3 motor, E-SPD+ inverter and pressure transmitter, mounted on a galvanised steel baseplate with stainless steel suction and discharge manifolds and a protection panel.
The drives hold a constant set pressure as demand changes, from a single pump at low flow up to about 56.5 m³/h with all three running, the end of Ebara’s application range for this set. It runs from a 400 V three-phase supply and connects through DN100 flanged manifolds.
E-SPD+ on every pump
AISI 304 stainless
DN100 manifolds
IP55
201 kg
More about this product
Ebara 3GPE MATRIX 18-6T/4.0 ESPT Overview
The 3GPE MATRIX 18-6T/4.0 ESPT is the largest three-pump set in Ebara’s Matrix 18 GPE booster range. It carries three 6-stage Matrix 18 horizontal multistage pumps side by side on a galvanised steel baseplate. Each pump has its own 4 kW IE3 motor, motor-mounted E-SPD+ inverter and pressure transmitter, and its own isolating ball valves and check valve, so any one pump can be valved off for service while the others keep running.
The E-SPD+ drives change pump speed to hold a constant set pressure, bringing pumps in as demand rises and dropping them out as it falls. That gives steadier pressure, lower energy use and less wear than fixed-speed boosting. With all three pumps running the set delivers up to about 56.5 m³/h within Ebara’s application range, with around 72.6 m of head at shut-off. It suits commercial and multi-occupancy buildings, hotels, schools, light industrial sites and irrigation where demand varies through the day and a 400 V three-phase supply is available.
Key Features
What’s on the Frame
| Part | Qty |
|---|---|
| Matrix 18-6T pump | 3 |
| 4 kW electric motor | 3 |
| E-SPD+ inverter with adaptor | 3 |
| Pressure transmitter | 3 |
| Suction manifold | 1 |
| Discharge manifold | 1 |
| Manifold end cap | 2 |
| Union ball valve, suction side | 3 |
| Union ball valve, discharge side | 3 |
| Check valve | 3 |
| Ball valve | 2 |
| Pressure gauge | 1 |
| Protection panel and frame | 1 |
| Baseplate | 1 |
| Baseplate feet | 6 |
Technical Specifications
| Specification | Value |
|---|---|
| Ebara part number | 2001708322 |
| Booster set | 3GPE MATRIX 18-6T/4,0 ESPT (UK) |
| Pumps | 3 × Matrix 18-6T horizontal multistage, 6 stages, 2-pole |
| Flow range per pump | 7.8 to about 18.8 m³/h (Ebara application range) |
| Maximum flow, all three pumps | about 56.5 m³/h (Ebara application range) |
| Head at minimum flow / end of range | 65.9 m / approx. 48.5 m |
| Shut-off head | 710.88 kPa (approx. 72.6 m, 7.1 bar) |
| Maximum working pressure | 1000 kPa (10 bar) |
| Impeller diameter | 107 mm |
| Suction / discharge | DN100 flanged manifolds, PN16 |
| Motors | 3 × 4 kW, IE3, TEFC, 2-pole, 2850 rpm |
| Motor current | 8.7 A per motor at 400 V |
| Protection / insulation | IP55 / Class F |
| Supply | 400 V three phase, 50 Hz (E-SPD+ ESPT) |
| Overall size (W × D × H) | 972 × 1080 × 801 mm |
| Weight | 201 kg |
Performance
Duty points at 50 Hz (full speed) with all three pumps running, from the Ebara 3GPE MATRIX 18-6T/4,0 curve (ISO 9906:2012 Grade 3B). The 0 and 23.4 m³/h figures are Ebara’s stated values; the others are read from the curve. The table stops at about 56.5 m³/h, where Ebara’s application range for this set ends, at the point where each pump’s shaft power reaches its 4 kW motor rating. Each pump gives one third of the set flow at the same head, so with two pumps running the set gives two thirds of the flow shown. The drives reduce speed to hold the set pressure at lower demand.
| Set flow (m³/h) | 0 | 23.4 | 30 | 40 | 50 | 56.5 |
|---|---|---|---|---|---|---|
| Flow per pump (m³/h) | 0 | 7.8 | 10 | 13.3 | 16.7 | 18.8 |
| Head (m) | 72.6 | 65.9 | 63 | 59 | 53 | 48.5 |
Materials
| Component | Material |
|---|---|
| Impellers, pump casing, external pump casing | AISI 304 |
| Shaft | AISI 304 |
| Mechanical seal | Carbon rotary / ceramic stationary faces, EPDM gasket and bellows, EN 1.4402 (AISI 316) spring, frame and retainer |
| O-rings | EPDM |
| Suction and discharge manifolds | AISI 304 |
| Check valves | Brass / NBR |
| Ball valves | Brass / PTFE |
| Baseplate and panel frame | Galvanised steel |
Installation Notes
Frequently Asked Questions
-
Data Sheet PDFDownload
