Ebara 2 GPE EVMS 400v
Ebara 2GPE EVMS5 17N5/4.0 ESPT Three Phase 400v 2001884217
- Established 1975
- Trusted by thousands of customers

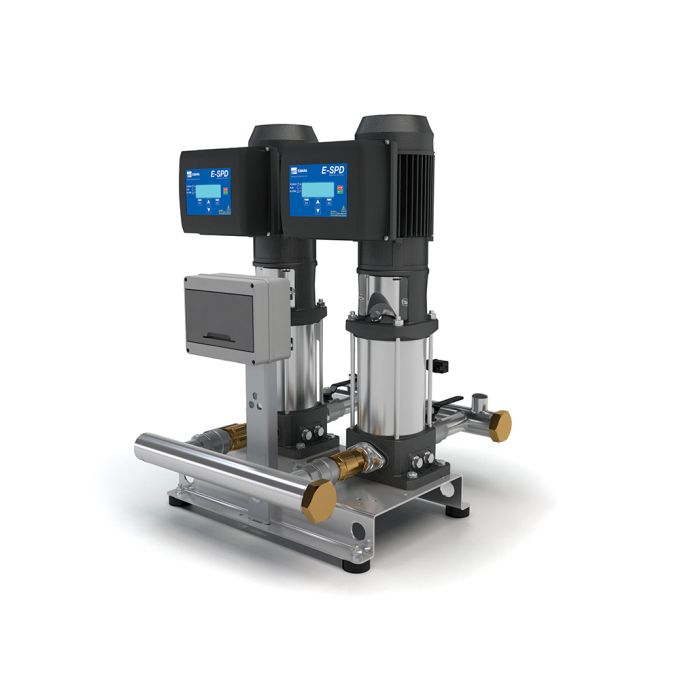

The Ebara 2GPE EVMS5 17N5/4.0 ESPT is a two-pump variable speed booster set. Two 17-stage EVMS5 vertical multistage pumps in AISI 304 stainless steel each have their own 4 kW IE3 motor, E-SPD+ inverter and pressure transmitter, mounted on a galvanised steel baseplate with stainless steel suction and discharge manifolds and a protection panel.
The drives hold a constant set pressure as demand changes, from a single pump at low flow up to 15.6 m³/h with both running. It runs from a 400 V three-phase supply and connects through G2 threaded suction and discharge manifolds.
E-SPD+ on every pump
AISI 304 stainless
G2 threaded manifolds
IP55
130 kg
More about this product
Ebara 2GPE EVMS5 17N5/4.0 ESPT Overview
The 2GPE EVMS5 17N5/4.0 ESPT is the seventeen-stage, 4 kW model and the largest set in Ebara’s two-pump EVMS5 GPE booster range. It carries two 17-stage EVMS5 vertical multistage pumps side by side on a galvanised steel baseplate. Each pump has its own 4 kW IE3 motor, motor-mounted E-SPD+ inverter and pressure transmitter, and its own isolating ball valves and check valve, so either pump can be valved off for service while the other keeps running.
The E-SPD+ drives change pump speed to hold a constant set pressure, bringing pumps in as demand rises and dropping them out as it falls. That gives steadier pressure, lower energy use and less wear than fixed-speed boosting. With both pumps running the set delivers up to 15.6 m³/h, with around 163.4 m of head at shut-off. It suits commercial and multi-occupancy buildings, hotels, schools, light industrial sites and irrigation where demand varies through the day and a 400 V three-phase supply is available.
Key Features
What’s on the Frame
| Part | Qty |
|---|---|
| EVMS5-17 vertical multistage pump | 2 |
| 4 kW electric motor | 2 |
| E-SPD+ inverter with adaptor | 2 |
| Pressure transmitter | 2 |
| Suction manifold | 1 |
| Discharge manifold | 1 |
| Threaded female cap | 2 |
| Manifold bracket | 2 |
| Ball valve, suction side | 2 |
| Ball valve, discharge side | 2 |
| Check valve | 2 |
| Ball valve | 1 |
| Pressure gauge | 1 |
| Protection panel and frame | 1 |
| Baseplate | 1 |
| Baseplate feet | 4 |
Technical Specifications
| Specification | Value |
|---|---|
| Ebara part number | 2001884217 |
| Booster set | 2GPE EVMS5 17N5/4,0 ESPT (UK) |
| Pumps | 2 × EVMS5 vertical multistage, 17 stages, 2-pole |
| Flow range per pump | 2.4–7.8 m³/h |
| Maximum flow, both pumps | 15.6 m³/h |
| Head at minimum / maximum flow | 155.0 m / 88.9 m |
| Shut-off head | 1599.97 kPa (approx. 163.4 m, 16.0 bar) |
| Maximum working pressure | 1600 kPa (16 bar), PN16 |
| Impeller diameter | 91 mm |
| Suction / discharge | G2 threaded manifolds (UNI ISO 228), threaded female cap on the blank ends, PN16 |
| Motors | 2 × 4 kW, IE3, TEFC, 2-pole, 2920 rpm, frame 112 |
| Motor current | 8.7 A per motor at 400 V |
| Protection / insulation | IP55 / Class F |
| Supply | 400 V three phase, 50 Hz (E-SPD+ ESPT) |
| Shaft seal | Cartridge, unbalanced, Q1BEG; rated to 16 bar, −30 to +120 °C |
| Overall size (W × D × H) | 550 × 587 × 1178 mm |
| Weight | 130 kg |
Performance
Duty points at 50 Hz (full speed) with both pumps running, from the Ebara 2GPE EVMS5 17N5/4,0 curve (ISO 9906:2012 Grade 3B). The 0, 4.8 and 15.6 m³/h figures are Ebara’s stated values; the others are read from the curve. Each pump gives half of the set flow at the same head, so with one pump running the set gives half the flow shown. The drives reduce speed to hold the set pressure at lower demand.
| Set flow (m³/h) | 0 | 4.8 | 6 | 8 | 10 | 12 | 14 | 15.6 |
|---|---|---|---|---|---|---|---|---|
| Flow per pump (m³/h) | 0 | 2.4 | 3 | 4 | 5 | 6 | 7 | 7.8 |
| Head (m) | 163.4 | 155.0 | 151.2 | 143.2 | 132.5 | 119.5 | 103.5 | 88.9 |
Materials
| Component | Material |
|---|---|
| Impellers and pump casing | AISI 304 |
| Shaft | AISI 304 |
| Mechanical seal | Silicon carbide rotating face, carbon stationary face, EPDM elastomers, AISI 316 spring |
| O-rings | EPDM |
| Suction and discharge manifolds, end caps | AISI 304 |
| Check valves | Brass / NBR |
| Ball valves | Brass / PTFE |
| Baseplate, manifold brackets and panel frame | Galvanised steel |
| Baseplate feet | SBR |
