DAB Salt Water Pumps

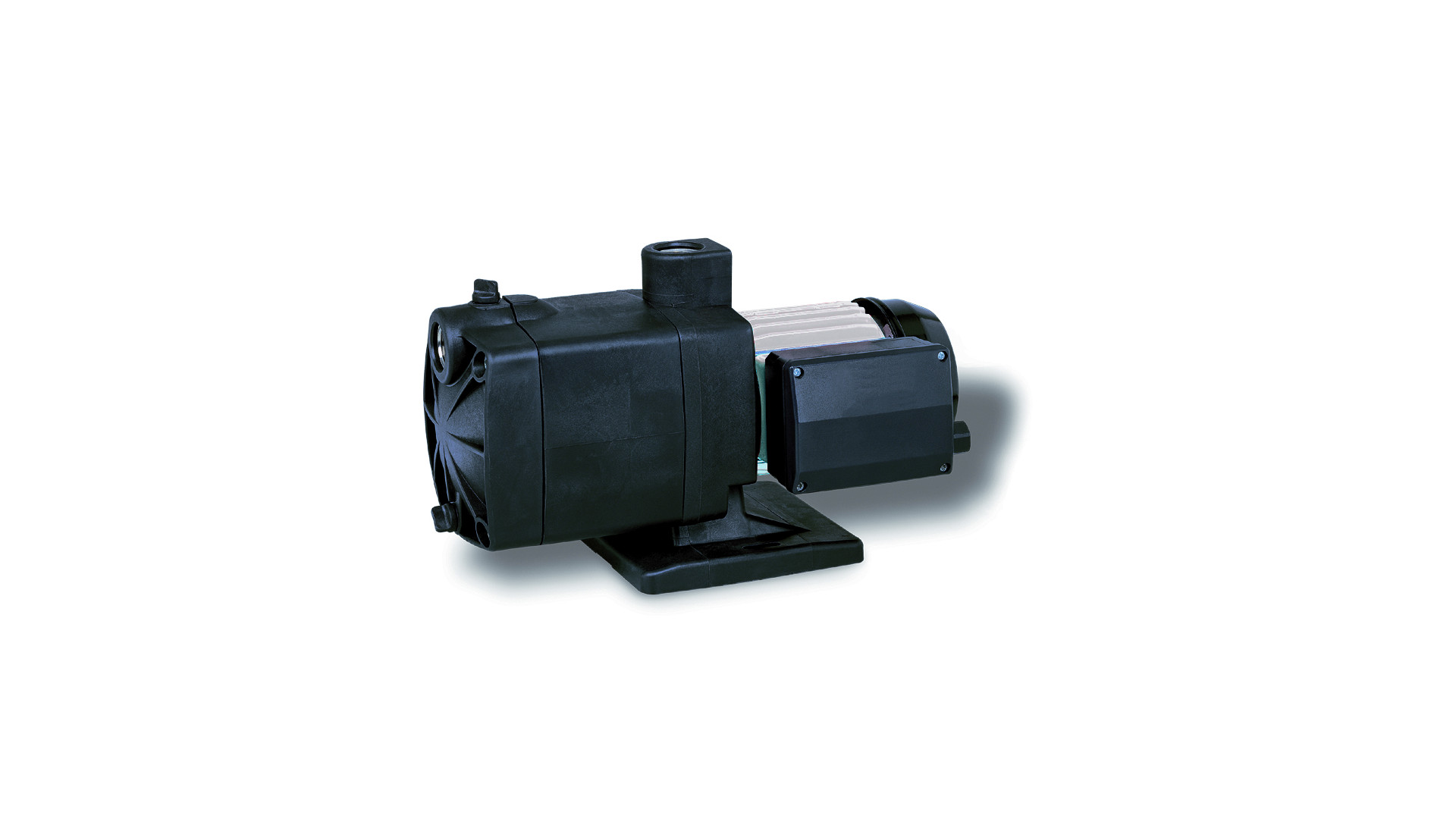

DAB MULTI 4 SW – Salt Water Pump
- Established 1975
- Trusted by thousands of customers
MULTI 4 SW is a self-priming multistage surface pump specifically constructed to pump salt water. Low noise and high pressure performance. Available with 4-Noryl impeller.
More about this product
Technopolymer pump body, motor support, impellers, diffusers and diffuser body. All the metal parts in contact with water are made of AISI 316 stainless steel. Rotor shaft, impeller fastening nut. Carbon/ceramic mechanical seal and AISI 316 stainless steel mechanical parts. Continuous service asynchronous single phase motor. Built-in thermal-amperometric protection and permanently connected capacitor.
TECHNICAL DATA
Operating range: capacity up to 90 l/min; head up to 46 m.
Liquid temperature range:
from 0 °C to +35 °C for domestic use.
from 0 °C to +40 °C for other uses.
Pumped liquid: Designed to specifically pump salt water.
Maximum suction capacity: 8 metres.
Maximum ambient temperature: +40 °C.
Protection class: IPX4.
Insulation class: F.
Installation: fixed or portable, horizontal position.
Special versions on requests: alternative voltages and/or frequencies.
-
