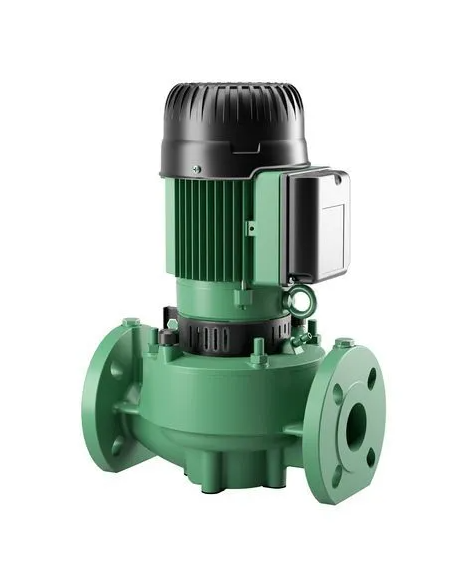

DAB Klm-Klp Single Circulation Pumps – Flanged
DAB KLP 80-1600 T IE3 – 60182104
In stock
- Established 1975
- Trusted by thousands of customers
Hot or cold water circulation pump with in-line ports, suitable for installation directly on the pipework of civil and industrial heating, air conditioning, refrigeration, and sanitary water systems.
More about this product
Circulating pumps with in-line connections, suitable for civil and industrial installations, for heating, air-conditioning and hot water for domestic use.
Pump body and motor support in cast iron. PN 10 flanged suction and delivery ports with threaded holes for control manometers. To make replacement in existing systems easier, the pump can accept PN 6 counter flanges. Technopolymer impeller. Carbon/ceramic mechanical seal. The pumps are available both in the single (KLM-KLP) and in the twin (DKLM-DKLP) versions. For the single version a built in clapet valve in the delivery port is also included, to avoid water recirculation when the unit is idle. A blind flange is also supplied as a standard, to be used during maintenance of one of the two motors. The twin version gives the possibility of alternating the operation of the pumps when a backup unit is required, or to have the two pumps operating simultaneously
TECHNICAL DATA
Operating range: from 2 to 67 m3/h with head up to 13,7 metres
Pumped liquid: clean, free of solids and abrasives, non-viscous, nonaggressive, non-crystallised and chemically neutral, with properties similar to water. Maximum, glycol content 30 % (for other glycol percentages contact Technical Support).
Pumped liquid temperature range: from -15 °C to +120 °C.
Maximum ambient temperature: +40 °C.
Maximum operating pressure: 10 bar (1000 kPa).
Standard flanges: DN 40, DN 50, DN 65, DN 80 – PN 6/PN 10 (4 holes).
Flanges on request: DN 80 – PN 16 (8 holes).
Counter flanges on request: threaded DN 40, DN 50, DN 65 in PN 10. welded DN 40, DN 50, DN 65, in PN 10/PN 16 (4 holes). welded DN 80 in PN 10/PN 16 (8 holes)
Special executions on requests: alternative voltages and frequencies
-
