Name: DAB Esybox Pop small residential booster pump 60243046
Brand: DAB Esybox
SKU: esyboxpop
Price: 357.6 GBP
Availability: InStock

DAB Esybox Pop small residential booster pump 60243046

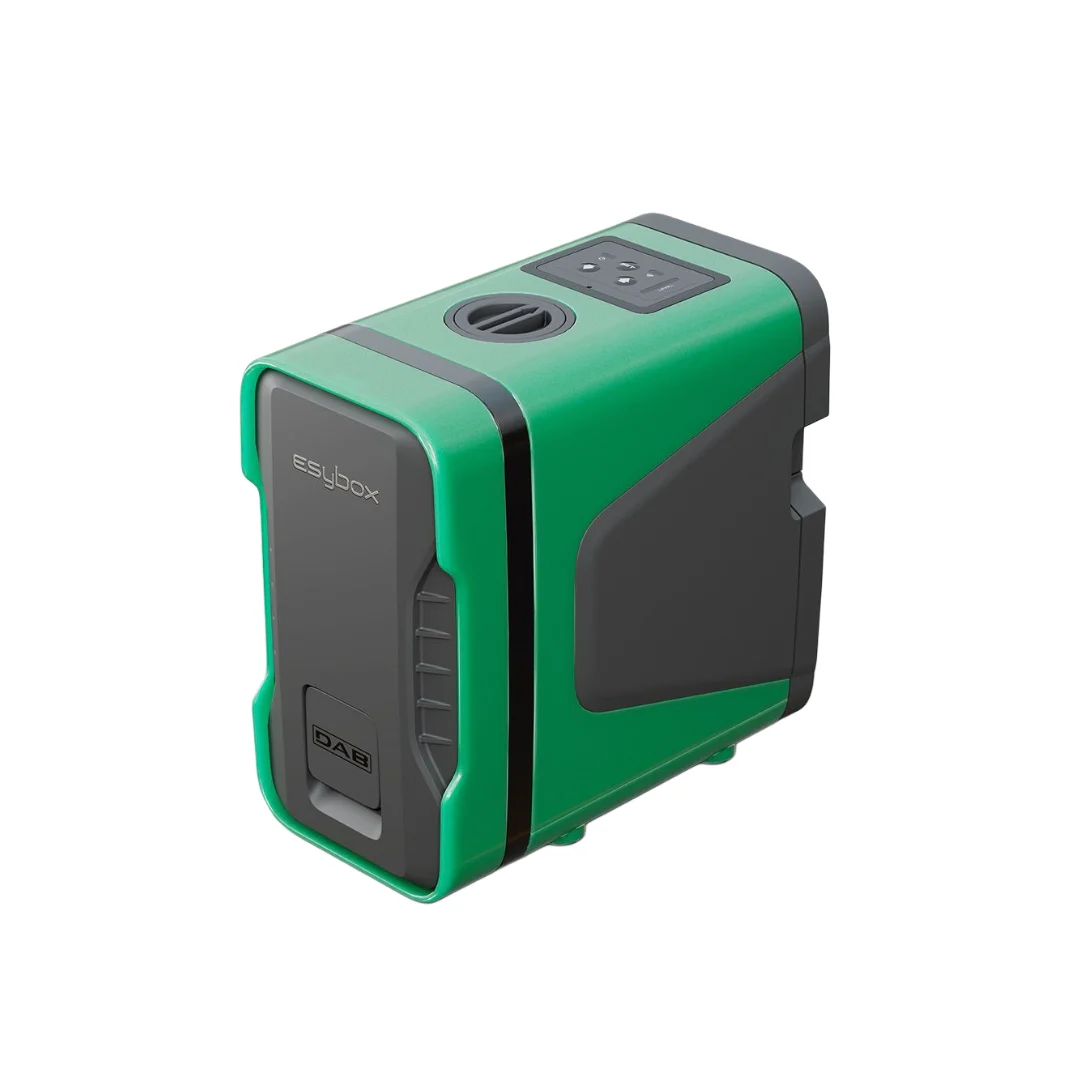

DAB Esybox Pop small residential booster pump 60243046 - Image 2

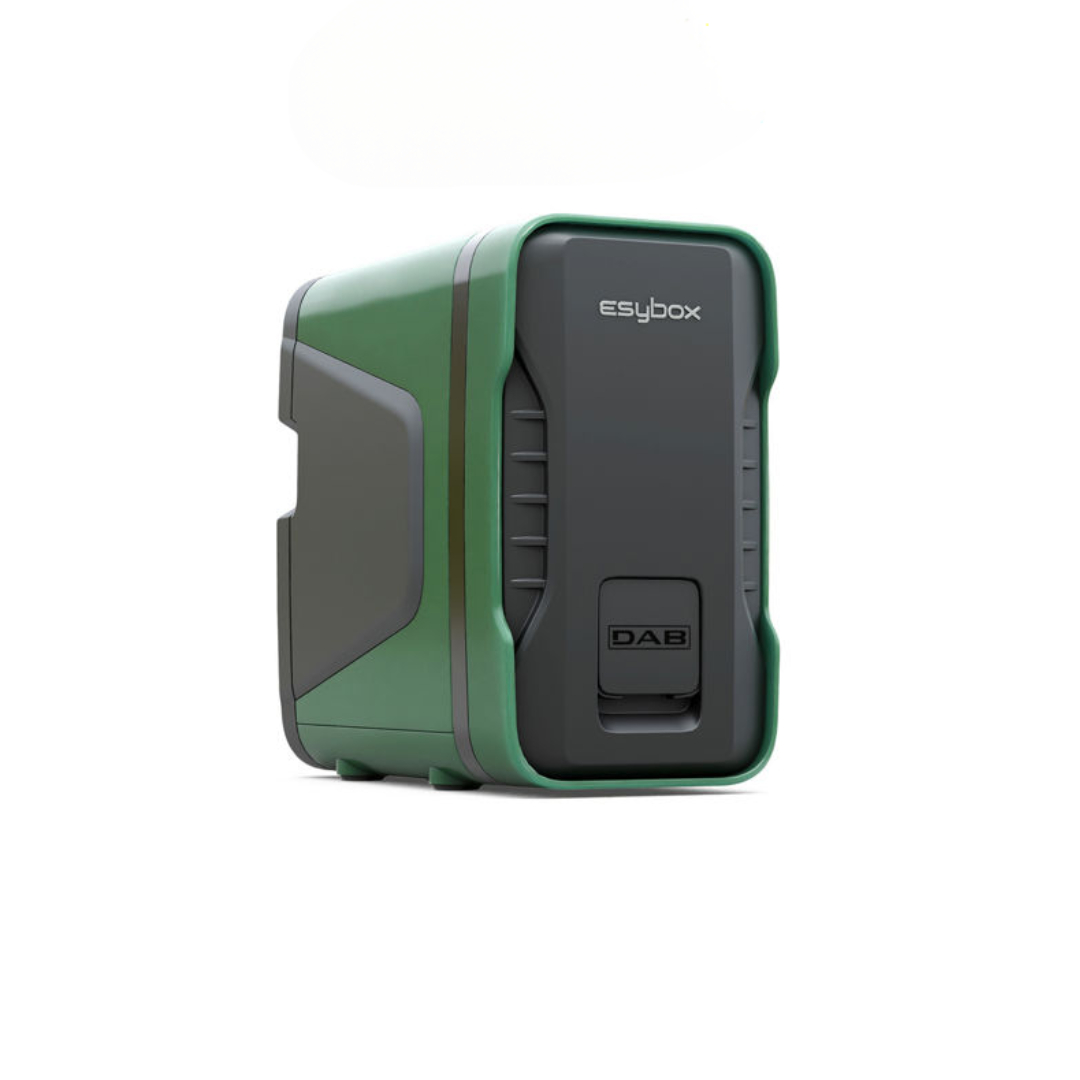

DAB Esybox Pop small residential booster pump 60243046 - Image 3

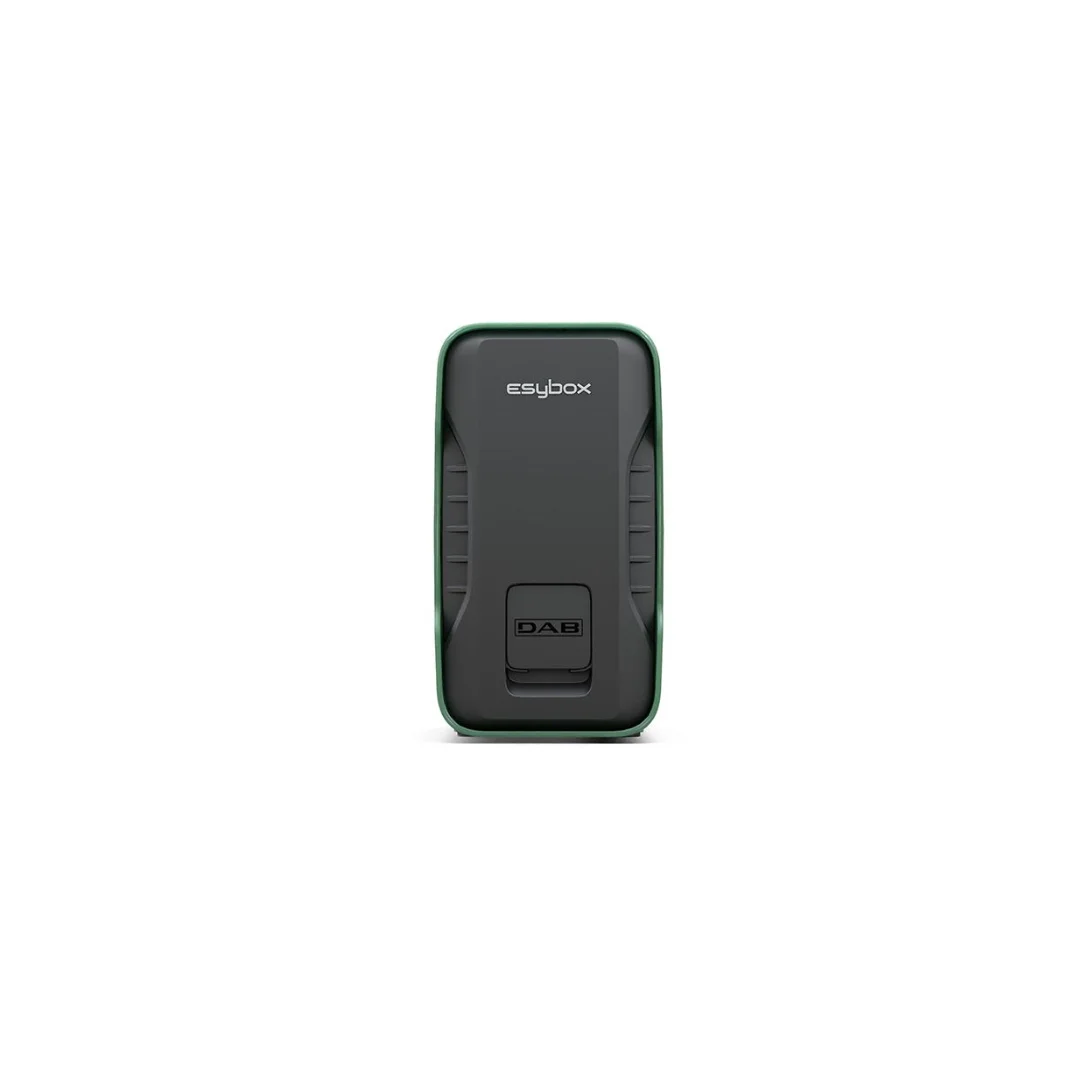

DAB Esybox Pop small residential booster pump 60243046 - Image 4

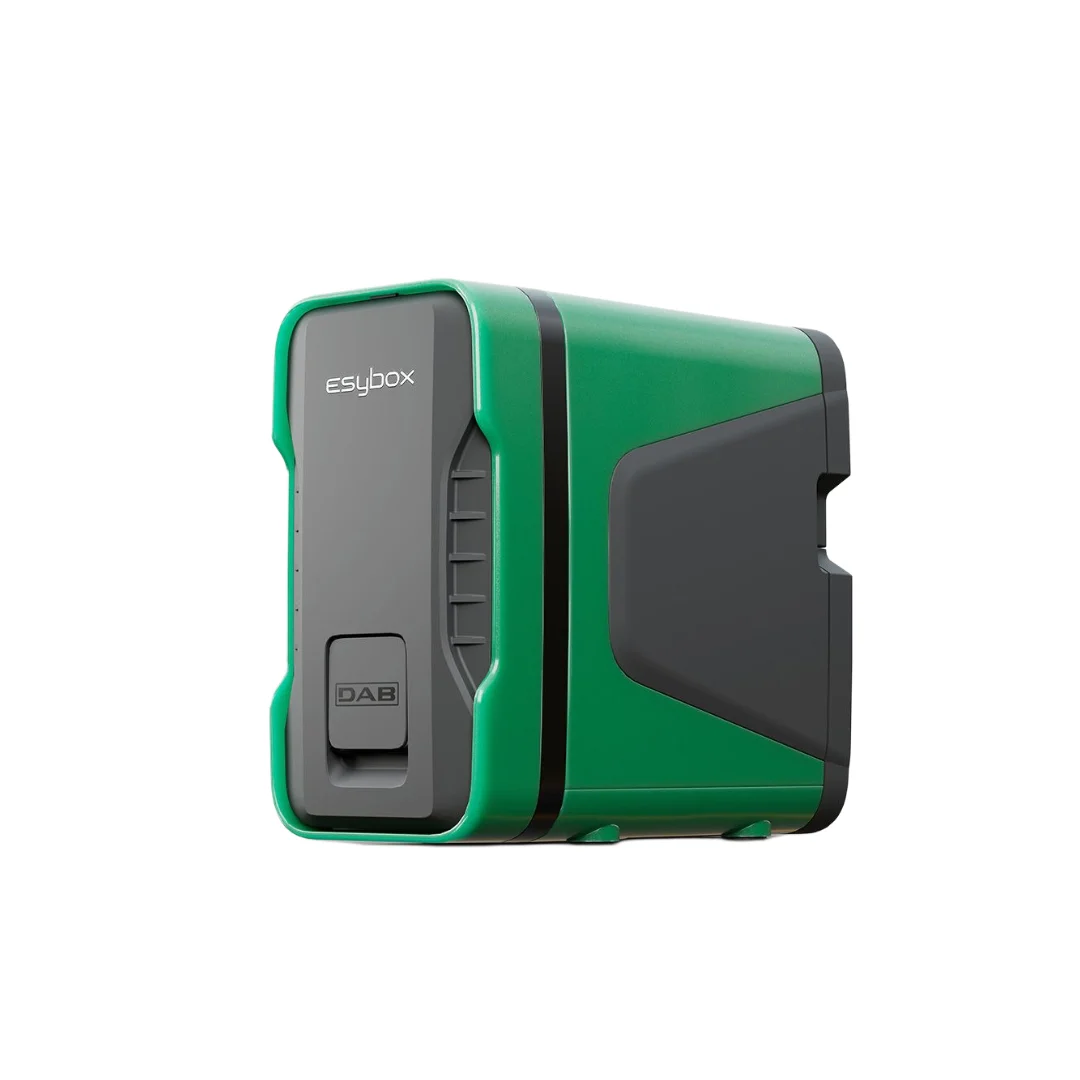

DAB Esybox Pop small residential booster pump 60243046 - Image 5

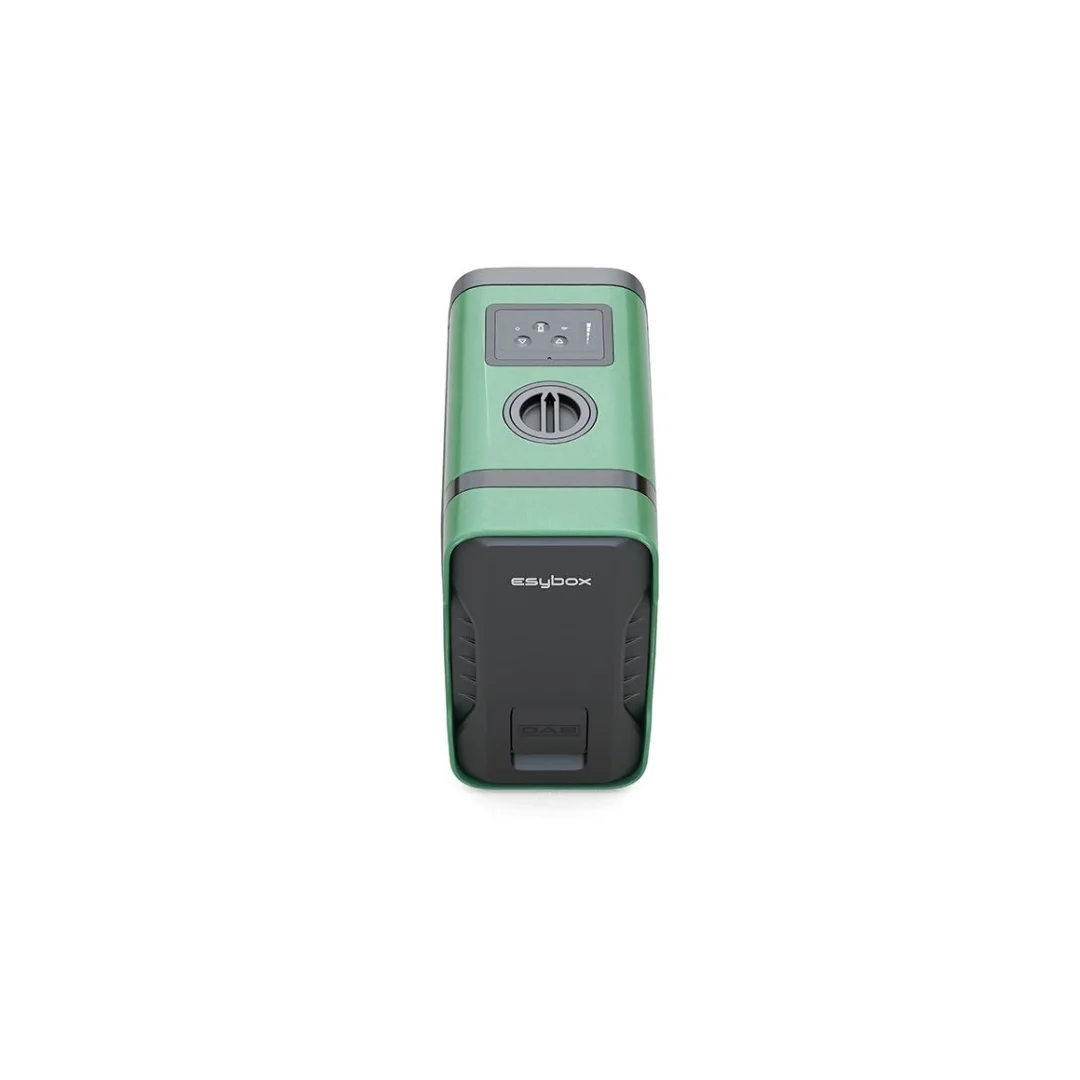

DAB Esybox Pop small residential booster pump 60243046 - Image 6

In stock

Established 1975
Trusted by thousands of customers

The DAB Esybox Pop is the latest revolution in the Esybox line — DAB’s most compact all-in-one pressurisation system. A lightweight, plug-and-play housing measuring just 122 × 209 × 225mm and weighing only 9 kg, delivering up to 65 L/min (3,900 L/hr) at a maximum of 3.2 bar.

Permanent magnet motor with electronic inverter, integrated pressure and temperature sensors, flow meter, non-return valve, and rotatable fittings — all fully assembled out of the box. Smart connectivity via the new DAB H2D app brings remote monitoring, Power Shower comfort mode, and consumption tracking. IPX5 rating allows indoor or outdoor installation.

Certified for drinking water. iF Design Award 2025 winner. Supplied with a 3-year DAB manufacturer warranty. Ideal for 1-2 bathroom homes, apartments (especially upper floors), bathroom and whole-house renovations, and replacing noisy old pumps. Note: must be fed from a break tank — direct mains connection is not permitted.

65L/min

Max flow

3.2bar

Max pressure

9kg

Lightweight

3yr

DAB warranty

H2D smart app
Drinking water certified
iF Design 2025
IPX5 indoor/outdoor
Plug & play
Power Shower mode
Break tank required

Full Description

More about this product

Full Description

Product overview

The DAB Esybox Pop is the latest revolution in the Esybox line — DAB’s most compact all-in-one pressurisation system, with cutting-edge technology delivered in a lightweight, plug-and-play housing measuring just 122 × 209 × 225mm and weighing 9 kg. Designed for homes where every centimetre matters, it fits where no other pump can — under sinks, in cupboards, on walls, indoors or outdoors.

A permanent magnet motor with electronic inverter automatically adjusts speed to match water demand — delivering up to 3,900 L/hr (65 L/min) at a maximum of 3.2 bar, with constant, precise pressure regulation and minimal energy consumption. Integrated pressure sensor, temperature sensor, flow meter, non-return valve, and rotatable fittings come pre-fitted — no extra parts, no bulky accessories, just plug and play. IPX5 rating allows installation outdoors as well as indoors.

Smart connectivity via the H2D app brings remote monitoring, Power Shower comfort mode, and consumption tracking to your phone. Certified for drinking water to international standards. iF Design Award 2025 winner. Supplied with a 3-year DAB manufacturer warranty when purchased from Anglian Pumping Services, an authorised DAB distributor.

65^L/min

Max flow rate

3.2^bar

Max pressure

9^kg

Lightweight

IPX5

Indoor / outdoor

Drinking water certified · H2D smart app · Plug & play · iF Design Award 2025

Key features

Permanent magnet motor & inverter

High-efficiency permanent magnet motor with electronic inverter automatically adjusts speed to demand — superior performance with lower energy use and reduced wear.

H2D smart app

Configure, monitor and troubleshoot remotely via the DAB H2D app — set pressure, check live status, track consumption, and activate comfort modes from your phone.

Ultra-quiet operation

Designed to run quietly without producing annoying noises — comfort and tranquility even in living spaces. Replaces noisy old pumps with whisper-quiet inverter technology.

Drinking water certified

All key certifications for domestic use and drinking water, in compliance with international standards. Suitable for potable water applications.

Maximum versatility

Compact 122 × 209 × 225mm size with reduced weight and rotatable fittings — installs in tight spaces where no other product fits. Free-standing or wall-mounted via dedicated dock.

All-in-one plug & play

Fully assembled and ready out of the box — no bulky extras, no expensive additional components. Pressure sensor, flow meter, non-return valve and rotatable fittings all integrated.

Power Shower mode

Activate via H2D app for a temporarily boosted shower flow — full pressure exactly when you need it, even with large rainfall heads, while keeping everyday consumption low.

IPX5 — indoor or outdoor

IPX5 protection allows outdoor installation — protected against water jets from any direction. Free up space inside the home without losing remote monitoring or smart control.

Modular for easy maintenance

The modular design makes the pump easy to maintain — components can be replaced quickly, reducing downtime and lowering service costs over the life of the system.

Typical applications

Apartments & upper floors

Perfect for flats and condo living, especially on upper floors where mains pressure drops. Delivers a constant, powerful flow on every storey.

Bathroom renovation

Next-generation showers reach their full potential — quick installation, consistent pressure, and Power Shower function for premium bathroom upgrades.

Replacing noisy old pumps

Drop-in replacement for bulky legacy pumps — less space, less noise, lower energy use, and modular components for easy long-term maintenance.

Boosting from storage tanks

Ideal where water comes from a break tank or pressure is unstable — Esybox Pop brings it back to the optimal level with simple, reliable management.

Outdoor installations

IPX5 protection allows fitting in outdoor cupboards, garages or external utility areas — freeing up internal space while remaining fully smart-managed via H2D.

Small and tight spaces

Fits into the narrowest corners — under sinks, in airing cupboards, alongside boilers. Provides more pressure where needed without being intrusive.

Technical specifications

Brand	DAB Water Technology — Esybox Pop
Motor type	Permanent magnet, inverter-controlled
Maximum flow rate	65 L/min (3,900 L/hr)
Maximum pressure	3.2 bar
Pressure regulation	Variable speed, constant pressure
Integrated sensors	Pressure, temperature, flow meter, non-return valve
Comfort modes	Power Shower (boost), standard, consumption tracking
Acoustics	Ultra-quiet operation
Liquid type	Clean water, non-aggressive, drinking water certified
Ingress protection	IPX5 — suitable for outdoor installation
Power supply	230V / 50Hz, single phase
Fittings	Rotatable — adapts to existing pipework
Installation	Free-standing, or wall-mounted via dedicated dock (separate accessory)
Dimensions (W × H × D)	122 × 209 × 225mm
Weight	9 kg
Design award	iF Design Award 2025
Connectivity	DAB H2D app — iOS, Android, web portal
Drinking water	Certified to international standards for domestic potable water
Warranty	3 years (DAB manufacturer warranty)

!The Esybox Pop is a pressure boosting pump — it must be fed from a suitable break tank, cold water storage cistern, or other water reservoir. It cannot connect directly to a mains supply.

How it compares

Three models in the DAB Esybox line. The Esybox Pop is the newest, smallest, and lightest — designed for 1-2 bathroom homes, apartments, and renovations where compactness matters most. The Mini 3 and full-size Esybox step up to larger flow and pressure for 3-5 bathroom properties and higher-demand applications.

Feature	DAB Esybox Pop this product	DAB Esybox Mini 3	DAB Esybox
Max flow rate	65 L/min	70 L/min (50 @ 3 bar)	120 L/min (80 @ 3 bar)
Max pressure	3.2 bar	5.5 bar	6.5 bar
Best for	1-2 bathrooms, apartments	2-3 bathrooms, small homes	3-5 bathrooms, larger homes
Size (W × H × D)	122 × 209 × 225mm	263 × 439 × 236mm	374 × 565 × 290mm
Weight	9 kg	16 kg	26 kg
Ingress protection	IPX5 — outdoor capable	IPX4	IPX4
App / WiFi	H2D app (new platform)	DConnect	DConnect, H2D, Google, Alexa
Power Shower mode	Yes	No	No
Warranty	3 years (DAB)	3 years (DAB)	3 years (DAB)

Which should I choose?

DAB Esybox Pop — choose for compact installations, apartments, bathroom renovations, and replacing old noisy pumps. Smallest and lightest in the range with IPX5 outdoor capability and Power Shower mode. Best for 1-2 bathroom homes.

DAB Esybox Mini 3 — choose for 2-3 bathroom homes needing more pressure (5.5 bar) and self-priming capability from below-ground tanks or boreholes to 8m depth.

DAB Esybox — choose for 3-5 bathroom properties and light commercial premises needing the highest flow (120 L/min, 80 L/min @ 3 bar) and pressure (6.5 bar), with full smart home integration (Google Home, Alexa).

Frequently asked questions

How much does it cost and how is it delivered?

Please contact us via WhatsApp or phone for current pricing and delivery timescales on the Esybox Pop.

What’s different about the Esybox Pop compared to the Mini 3 and full Esybox?

The Esybox Pop is the newest, smallest and lightest member of the Esybox family — 122 × 209 × 225mm and 9 kg, with IPX5 outdoor capability and a brand-new H2D smart app with Power Shower mode. It targets 1-2 bathroom homes, apartments, and renovations where space is tight. The Mini 3 steps up to 70 L/min, 5.5 bar, and 8m self-priming for 2-3 bathroom homes. The full-size Esybox delivers 120 L/min and 6.5 bar for 3-5 bathroom properties.

Can the Esybox Pop be installed outdoors?

Yes — the Pop carries an IPX5 ingress rating, which protects against water jets from any direction. It can be installed in outdoor cupboards, garages, or external utility areas, freeing up internal space. The H2D app keeps it fully managed remotely — you don’t need to access the pump physically to monitor or adjust it.

What is the H2D app and how does it differ from DConnect?

H2D is DAB’s newer smart-pump platform — a complete redesign of the app experience with a focus on installer diagnostics and end-user comfort modes (including Power Shower). It’s available on iOS, Android, and as a web portal. The Pop pairs with H2D natively — DConnect (the older DAB app used by Esybox and Esybox Mini 3) is not used here.

What is Power Shower mode?

Power Shower is a comfort mode in the H2D app that temporarily boosts water pressure for a more intense shower experience — even with large rainfall heads — while keeping overall daily consumption low. Activate it on demand from the app and switch back to standard mode afterwards.

Can it connect directly to the mains?

No — like all Esybox-family pumps, it must draw from a break tank or cold water storage cistern. Direct mains connection is not permitted under UK Water Regulations.

Need a complete tank + pump solution? Take a look at our WaterBoost tank and booster packages, or contact us for advice.

What warranty is included?

3 years manufacturer warranty direct from DAB, when purchased from Anglian Pumping Services, an authorised DAB distributor.
