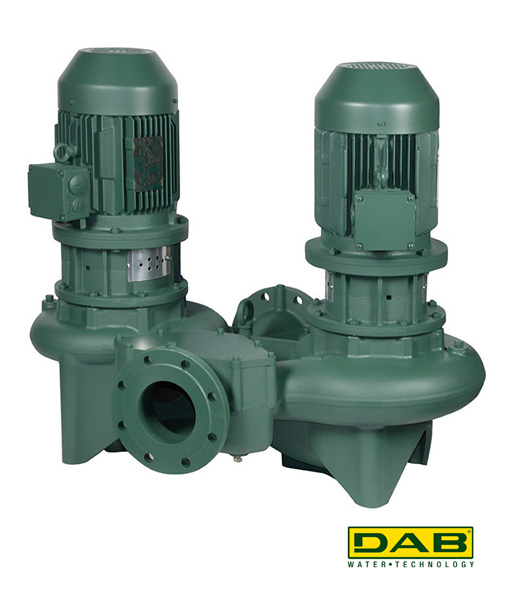

DAB DCM Twin Pumps – Flanged – 4 POLE
DAB DCM-G 80-740/A/BAQE/1,1 – IE3 – 60180083
In stock
- Established 1975
- Trusted by thousands of customers
In-line port circulation pumps, suitable for heating, air conditioning, refrigeration and sanitary water systems. Available in the single and twin versions.
More about this product
Pump body and motor support in cast iron. PN 16 flanged suction and delivery connections with threaded holes for control pressure gauges. Technopolymer impeller and carbon/ceramic mechanical seal. Three-phase, four-pole, asynchronous motor with external ventilation. To protect the motor. it is advisable to use a thermal overload protection complying with the regulations in force. Operating range: from 3,6 to 420 m3/h with head up to 102 metres. Liquid temperature range: from -10°C to +140°C. Pumped liquid characteristics: clean, free from solids or abrasive substances, not viscous, not aggressive, not crystallised and chemically neutral.
Maximum ambient temperature: +40°C Maximum working pressure: 16 bar (1600 kPa). Protection level: IP 55 Insulation class: F PN 16 counter flanges on request.
TECHNICAL DATA
Operating range: from 1,2 to 420 m3/h with head of up to 41 metres.
Pumped liquid: clean, free of solids and abrasives, non-viscous, nonaggressive, non-crystallised and chemically neutral, with properties similar to water. Maximum, glycol content 30 % (for other glycol percentages contact Technical Support).
liquid temperature range: from -10 °C to +130 °C for DN 40 – DN 50. from -10 °C to +140 °C for the remainder of the range.
Maximum ambient temperature: +40 °C.
Maximum operating pressure: PN10 : for DN 40 – DN 50. PN16 : Remainder of the range.
Flanging: PN 16.
Special executions on requests: alternative voltages and frequencies
Protection: IP 55.
Insulation: class F
-
Data Sheet PDFDownload
Standard delivery:
Standard delivery is free for all orders except for some low cost or difficult to transport pumps where standard delivery is £6.20.
Please contact us for the estimated standard delivery times of the products that we have in stock, either by calling 01473 719950, or by dropping us an email at info@anglianpumping.com.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £15.00 + vat delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
