DAB CAT5 Break Tank Booster Systems
DAB B-TANK Cat5 MINI / E.SYBOX MINI – 60178398
- Established 1975
- Trusted by thousands of customers
Reduced water pressure in buildings is a growing problem in todays water market. DAB Pumps now supply a full range of break tank and booster pump integrated systems. Designed to provide off mains water storage, combined with a suitable electric driven automatic booster pump.
The “B-Tank” range now spans applications from a single water tap outlet to multiple outlet commercial building applications.

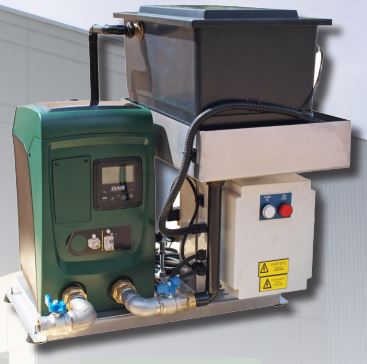

This model, the “B-Tank Cat5 Mini” houses an 18 Litre water storage tank with a Cat 5 class AB airgap mains water connection. Coupled to the tank is our energy efficient E.SYBOX Mini booster pump system, a completely new solution in cold water boosting. A robust stainess steel holding frame connects the system together with additional stainless steel brackets for wall mounting if required.
More about this product
Design Features
- 18 Litre Wras approved potable water storage tank
- Fast fill Wras approved solenoid filling inlet valve 3/4” BSP
- Can be floor mounted or wall mounted using the brackets supplied
- Water cooled motor and sound dampening casing creates one of the quietest booster pumps available today.
- Wras approved energy efficient variable speed booster pump
- Powerful performance flow up to 1.25 Litres/second and head up to 5 Bar
- Self priming down to 8 Metres
- Volt free external signal for high water level in the storage tank
- Dry running protection
- Frost protection
- Energy monitoring facility
- Anti-vibration mountings
- Integrated chamber with Wras approved expansion vessel and installer manual
-
Data Sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
Grundfos CM-I 304 stainless horizontal multistage pumps The Grundfos CM-I compact booster pump is used for water supply in domestic, commercial and industrial applications. The CM pumps are unique…
DAB single variable speed booster pump sets specifically suitable for domestic applications and small systems for civil, agricultural or industrial uses.
The Clarke CBM pump. This high efficency multi-stage tankless booster pump has an electronic control unit and combines high output with a massive 48m head.…
This DAB Aquajet Inox Automatic Self Priming Pressure Pump Unit is ideal for domestic, civil, agricultural and industrial use. With an automatic water lifting unit, stainless…
DAB 2 Euroinox AD Twin Pump Booster Set is equipped with Active Driver are designed and manufactured to meet the constant pressure requirements imposed by modern water…
A new range of compact electronic devices pressure/flow switches for control and protection of electric pumps.
Frequently Asked Questions
Quick answers to common questions about the DAB B-TANK Cat5 MINI / E.SYBOX MINI – 60178398. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a water booster pump?
A water booster pump increases the pressure of an existing water supply to give stronger flow at taps, showers and appliances. It can be a small inline pump fitted to the incoming mains, or a larger pump and tank set that draws from a break tank to feed the whole house. Boosters do not create water – they raise the pressure of the water already coming in.
What is the difference between an inline booster and a tank-and-pump booster?
An inline booster connects straight onto the incoming mains and is limited to 12 litres per minute under UK water regulations – examples include the Salamander HomeBoost and WaterBoost WB-Compact. A tank-and-pump booster, such as the Grundfos Home Booster or DAB Esybox with Esytank, draws from a break tank and can deliver much higher flow rates for larger homes with multiple bathrooms.
What is a variable speed booster pump?
A variable speed booster uses an inverter to adjust pump speed in real time to match demand. It maintains constant pressure as outlets open and close, runs more quietly than a fixed-speed pump and typically saves up to 50 per cent of the energy a fixed-speed equivalent would use. The DAB Esybox, DAB Esybox Mini 3 and Grundfos Scala2 are common variable speed examples.
