DAB Aquajet Pump Sets
DAB Aquajet 112M-G
- Established 1975
- Trusted by thousands of customers

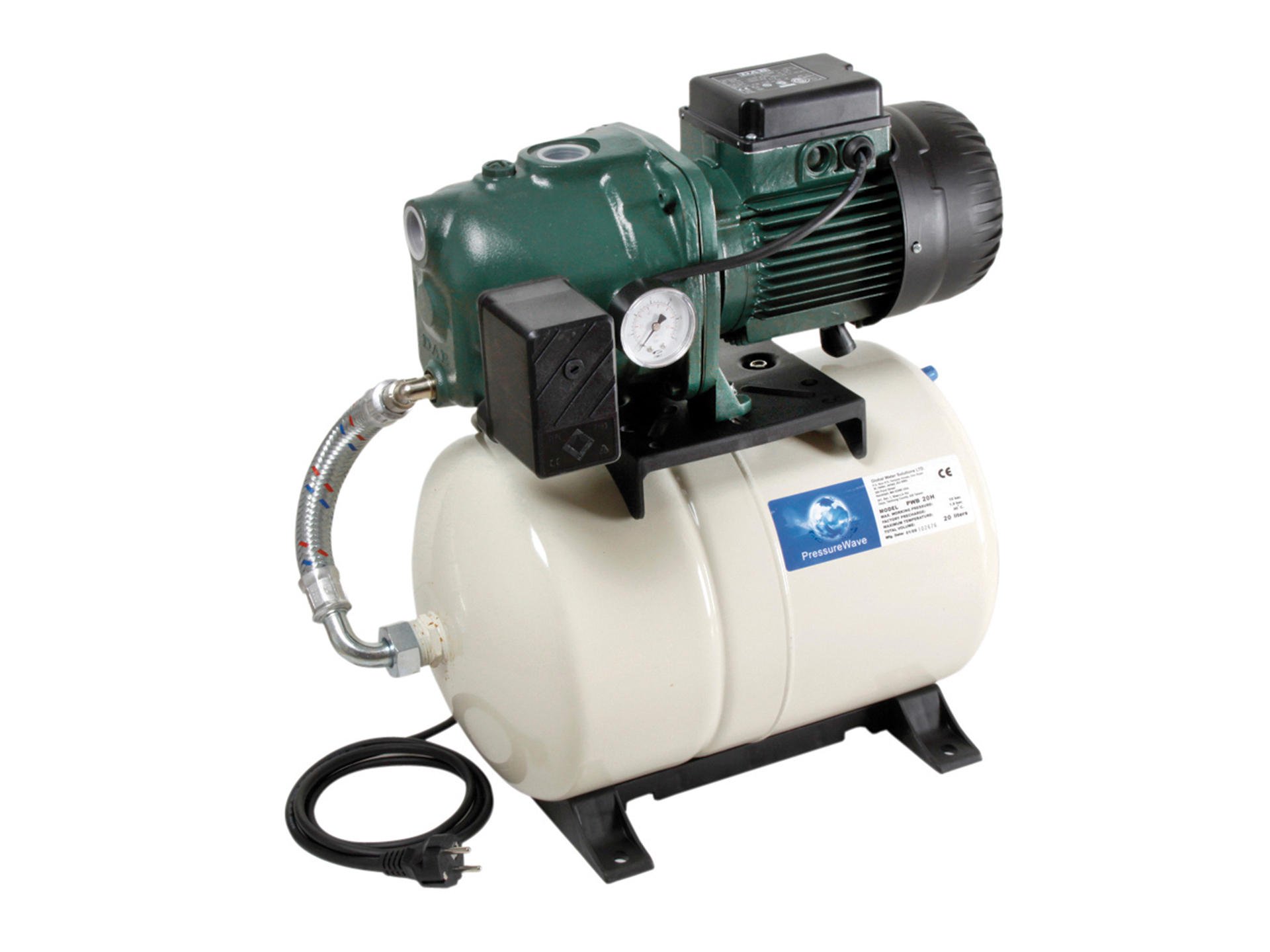

The DAB Aquajet Automatic Self Priming Pressure Pump Unit is ideal for domestic civil, agricultural and industrial use.
This unit has a cast iron JET self-priming pump, providing consistent and high-level pump pressure, guaranteeing effective performance. A 20ltr horizontal membrane pressure vessel is durable and hard-wearing, with an innovative pressure switch for automatic operation; pressure gauge and fitting kit between pump and motor provides additional flexibility.
The synchronous motor is cooled by external ventilation, with built-in thermal and current overload protection; the single phase version also has a permanent-working capacitor.
More about this product
Suitable for:
- Home use
- Agricultural
Features and benefits:
- High suction
- Easy installation
- Automatic pump
- Compact dimensions
- Expels air bubbles
- Pressure switch included
- Motor cooled by external ventilation
- Operating range: up to 5.4 m3/h with head up to 61 metres
- Liquid temperature range: 0°C to +35°C domestic use; 0°C to +40°C other use
- Maximum ambient temperature: +40°C
- Maximum working pressure: 8 bar (800 kPa)
- Protection level: IP 44 (IP 55 terminal board protection)
- Insulation class: F
-
Data Sheet PDFDownload
-
technical PDFDownload
-
instructions 1 PDFDownload
-
instructions 2 PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
Lowara CAM 120/35/B 230v 101810040 Lowara CEA-CA series. A wide range of pumps for domestic and industrial applications. Single impeller CEA and dual impeller CA.…
Grundfos MQ3 – Replaced by Scala1 3-35 pipe modifications required If ordered we will send a Scala1 3-35
Designed to address the increasing challenge of low mains water pressure, the newly extended STORMBOOST lineup is fully WRAS Approved and now includes six innovative models: STORMBOOST 60, 80,…
This DAB Aquajet Inox Automatic Self Priming Pressure Pump Unit is ideal for domestic, civil, agricultural and industrial use. With an automatic water lifting unit, stainless…
For a self-priming pump suited to domestic applications, look no further than the DAB JET Pump collection. With impressive suction capacity even when interacting with…
DAB triple AD variable speed booster pump sets specifically suitable for commerical applications and civil, agricultural or industrial uses.
Frequently Asked Questions
Quick answers to common questions about the DAB Aquajet 112M-G. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a water booster pump?
A water booster pump increases the pressure of an existing water supply to give stronger flow at taps, showers and appliances. It can be a small inline pump fitted to the incoming mains, or a larger pump and tank set that draws from a break tank to feed the whole house. Boosters do not create water – they raise the pressure of the water already coming in.
What is the difference between an inline booster and a tank-and-pump booster?
An inline booster connects straight onto the incoming mains and is limited to 12 litres per minute under UK water regulations – examples include the Salamander HomeBoost and WaterBoost WB-Compact. A tank-and-pump booster, such as the Grundfos Home Booster or DAB Esybox with Esytank, draws from a break tank and can deliver much higher flow rates for larger homes with multiple bathrooms.
What is a variable speed booster pump?
A variable speed booster uses an inverter to adjust pump speed in real time to match demand. It maintains constant pressure as outlets open and close, runs more quietly than a fixed-speed pump and typically saves up to 50 per cent of the energy a fixed-speed equivalent would use. The DAB Esybox, DAB Esybox Mini 3 and Grundfos Scala2 are common variable speed examples.
