DAB ALME / ALPE Single Electronic In-line Pumps – Threaded
DAB ALPE 2000 M MCE11/C – 60143228
- Established 1975
- Trusted by thousands of customers
Applications
Hot or cold water circulation pump with in-line ports, suitable for installation directly on the pipework of civil and industrial heating, air conditioning, refrigeration, and sanitary water systems
More about this product

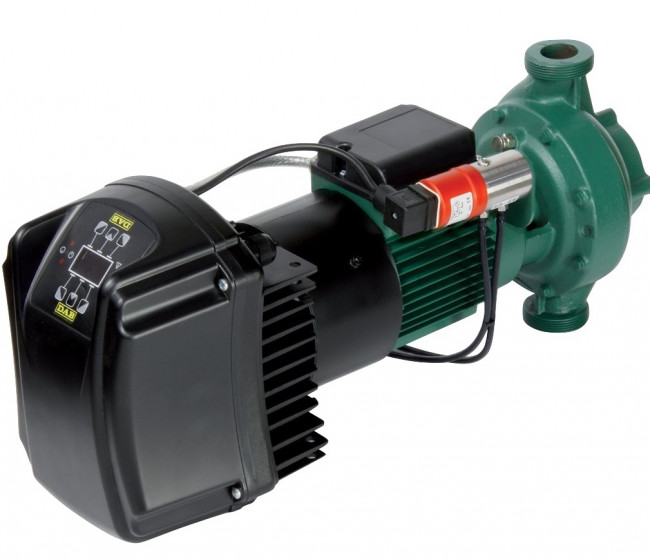

Circulator for hot or cold water with in-line ports, suitable for installation directly on the pipes in civil and industrial heating air conditioning, refrigeration, and domestic water systems. Extremely versatile thanks to the use of the MCE/C inverter, the circulator performance is such as to allow automatic adaptation to meet the various requirements of the system, while keeping pressure differentials unchanged. Pump body and motor support in cast iron. 2” M-GAS inlet and outlet. Impeller in technopolymer, carbon/ceramic mechanical seal. Four-pole totally enclosed asynchronous motor with external cooling for version ALME and two pole motor for version ALPE. Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and long life. Constructed following the CEI 2-3 standards.
TECHNICAL DATA
Operating range: from 1 to 8.4 m3 /h with head up to 21 meters.
Liquid temperature range: From -15 °C to +120°C.
Liquid quality requirements: clean, free from solid or abrasive substances, not viscous, not aggressive, not crystallised and chemically neutral, characteristics similar to water – maximum glycol percentage 30 % (for different glycol percentages, please contact the Technical Assistance Service).
Installation: fixed horizontally.
Maximum ambient temperature: +40°C
Maximum working pressure: 10 bar (1000 kPa)
Protection rating: IP 55
Insulation class: F
-
Data Sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
Grundfos CM-I 304 stainless horizontal multistage pumps The Grundfos CM-I compact booster pump is used for water supply in domestic, commercial and industrial applications. The CM pumps are unique…
Lowara CEAM 70/5-V/A 110v 107330010DAA Lowara CEA-CA series. A wide range of pumps for domestic and industrial applications. Single impeller CEA and dual impeller CA.…
The DAB Esybox with Esytank 500 is a complete, ready-to-install water pressure boosting system that solves three problems at once: low mains pressure, restricted mains…
The Grundfos CMBE booster is a compact booster system for water supply in domestic applications. The integrated speed controller enables the CMBE to keep constant…
DAB triple AD variable speed booster pump sets specifically suitable for commerical applications and civil, agricultural or industrial uses.
The Clarke SPE pumps. This robust pump is ideal for many applications around the home and garden.
Frequently Asked Questions
Quick answers to common questions about the DAB ALPE 2000 M MCE11/C – 60143228. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a water booster pump?
A water booster pump increases the pressure of an existing water supply to give stronger flow at taps, showers and appliances. It can be a small inline pump fitted to the incoming mains, or a larger pump and tank set that draws from a break tank to feed the whole house. Boosters do not create water – they raise the pressure of the water already coming in.
What is the difference between an inline booster and a tank-and-pump booster?
An inline booster connects straight onto the incoming mains and is limited to 12 litres per minute under UK water regulations – examples include the Salamander HomeBoost and WaterBoost WB-Compact. A tank-and-pump booster, such as the Grundfos Home Booster or DAB Esybox with Esytank, draws from a break tank and can deliver much higher flow rates for larger homes with multiple bathrooms.
What is a variable speed booster pump?
A variable speed booster uses an inverter to adjust pump speed in real time to match demand. It maintains constant pressure as outlets open and close, runs more quietly than a fixed-speed pump and typically saves up to 50 per cent of the energy a fixed-speed equivalent would use. The DAB Esybox, DAB Esybox Mini 3 and Grundfos Scala2 are common variable speed examples.
