Flamco Flexfiller
Flamco Flexfiller Flexfiller 150D 17396 Single Pump 1-5 Bar
- Established 1975
- Trusted by thousands of customers
Flamco Flexfiller Flexfiller 150D 17396 Single Pump 1-5 Bar
Compact and totally enclosed digital pressurisation units with electronic pressure transducer and user-friendly microprocessor for use on sealed system in order to provide a minimum system pressure requirement.
More about this product
Overview
Compact and totally enclosed digital pressurisation units with electronic pressure transducer and user-friendly microprocessor for use on sealed system in order to provide a minimum system pressure requirement.

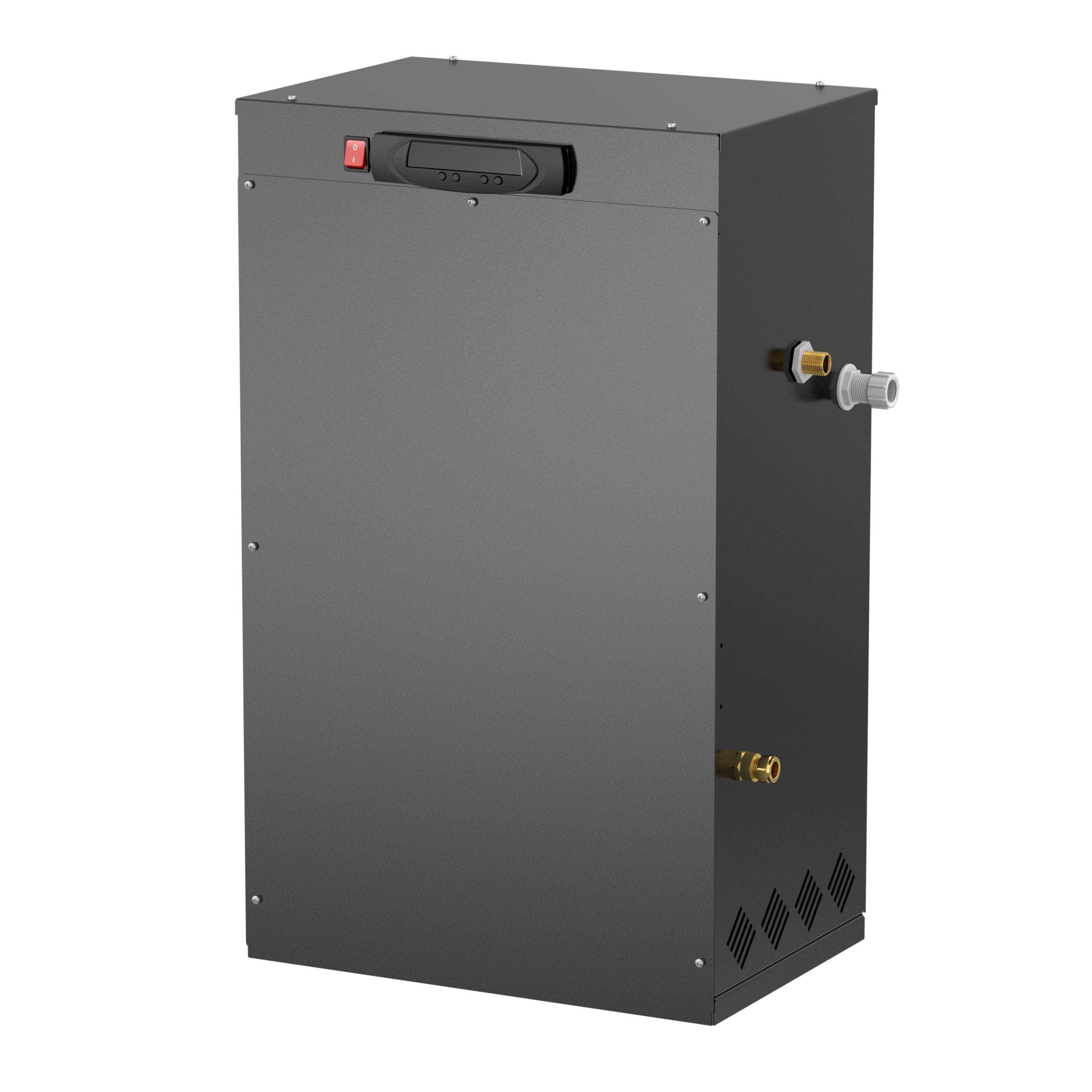

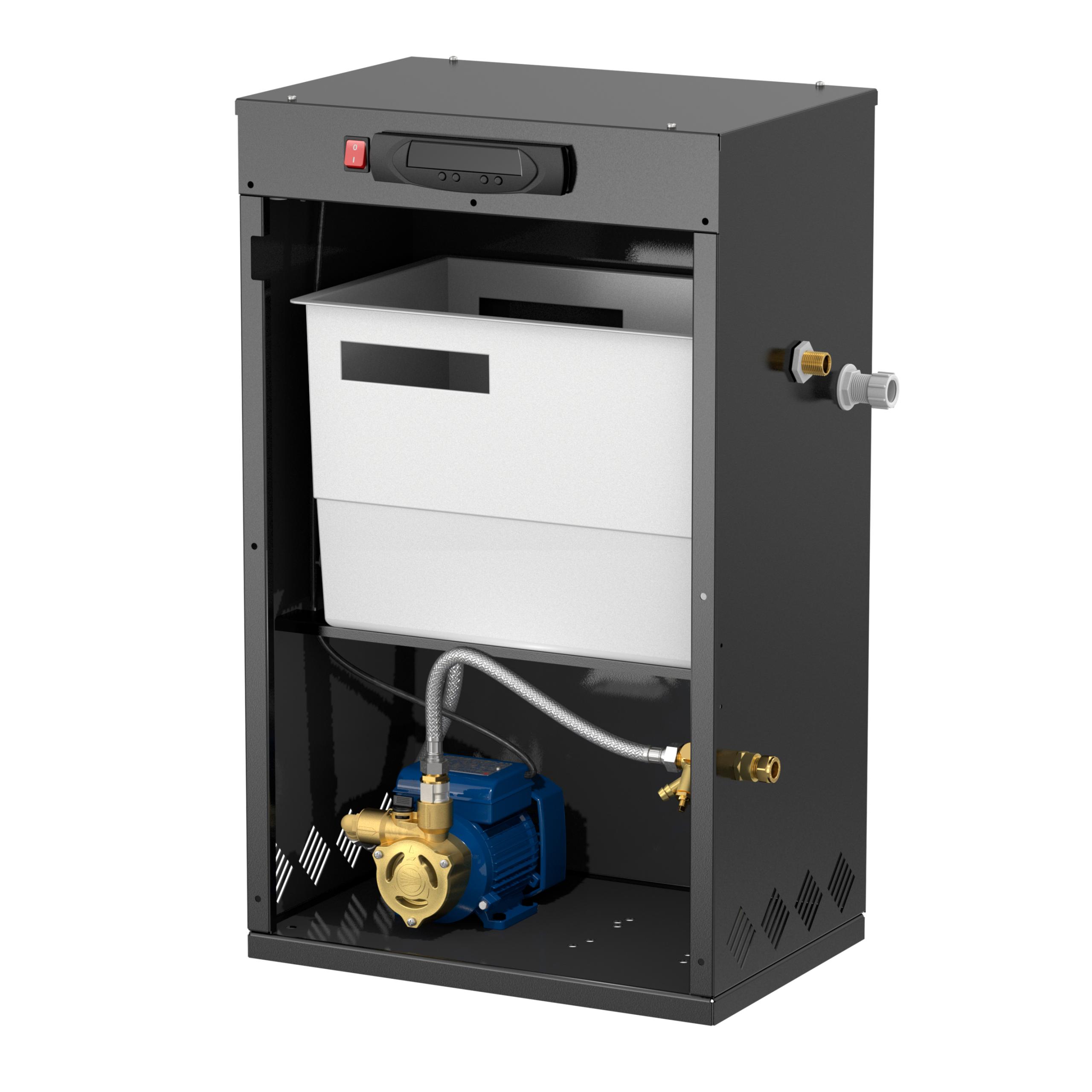

The Flexfiller is a floor standing, flow rate (up to 18 l/min) top-up pressurisation unit with 18 litre internal break tank. Ideal for Industrial, commercial or large domestic applications. Available in single or twin pump configuration.
Application: Commercial, Industrial and Residential.
Flood Protection (Pump Runtime Limiter, Excessive Start Alarm).
Event logging: Alarm activations, Pump Run counter (activations per pump),.
Key features
- Product Features: For system volumes up to 300,000 litres.; Fluid Protection Category 5 (AB Weir Overflow).; System fill mode. Onscreen; Service Reminder – 12 Months. Electric pump, 230V 50Hz 1ph (2160D: 415V 50Hz 3ph).
- Colour: Black (RAL 9005).
- MODBUS RTU Communication Protocol.
- Password protected.
- Sequential programming menu.
- Pressure setting in 0.1 bar increments.
- Pump pulse option.
- Cumulative run timer (hours per pump),
- Electrical interuption. Volt free contacts
Specification
| Product | Flamco Flexfiller Flexfiller 150D 17396 Single Pump 1-5 Bar |
|---|---|
| Power | 0.5 kW |
| Supply | 230 V single-phase, 50 Hz |
| Connections | 15 mm (1/2″ M) system and mains supply, 22 mm overflow |
| Pumps | Single |
| Rated current | 3.4 A |
| Max. delivery pressure | 6.0 bar |
| Max. top-up flow | Up to 18 l/min |
| Break tank | 18 litres, Fluid Category 5 (AB weir overflow) |
| Max. system volume | Up to 300,000 litres (guide) |
| System temperature | 5 °C to 85 °C |
| Ambient temperature | 5 °C to 40 °C |
| Pressure rating | PN 10 |
| Controller | IP54, MODBUS RTU, volt-free alarm contacts |
| Weight | 31 kg |
| Flamco order code | 17396 |
-
Data Sheet PDFDownload
-
Manual PDFDownload
