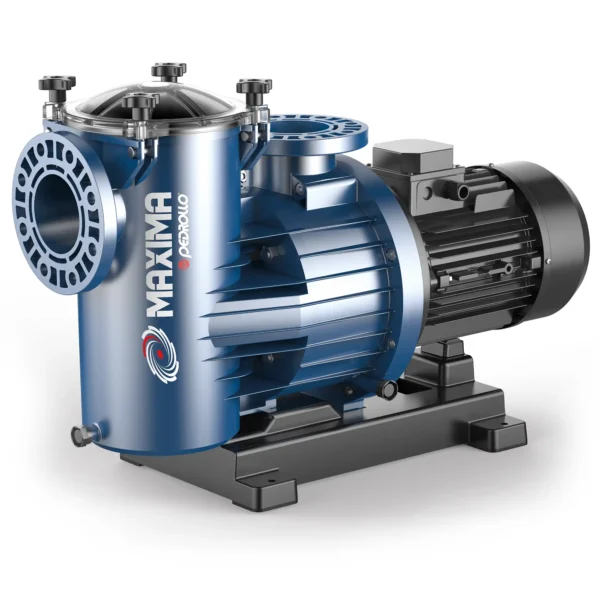

Name: Pedrollo MAXIMA 4/1000 Three Phase Self-Priming Swimming Pool Pump 2113050
Brand: Pedrollo
SKU: 2113050
Price: 5451.6 GBP
Availability: InStock

Pedrollo MAXIMA 4/1000 Three Phase Self-Priming Swimming Pool Pump 2113050

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

The Pedrollo MAXIMA 4/1000 is a three-phase self-priming swimming pool pump with a built-in pre-filter. It delivers 200 to 2400 l/min, with a working head of 15.5 m down to 7 m.

Pedrollo design the MAXIMA range for residential pools up to 1080 m³. The pre-filter has a transparent cover and an extra-large basket, so it needs cleaning less often.

2400l/min

Max flow

16m

Max head

7.5kW

10 HP

400V

Three-phase

400 V three-phaseSelf-primingBuilt-in pre-filterIE3 motorCode 2113050

Full Description

More about this product

Full Description

Product overview

The Pedrollo MAXIMA 4/1000 is a three-phase self-priming swimming pool pump. It covers 200 to 2400 l/min. Working head runs from 15.5 m down to 7 m, and maximum head is 16 m. It has a 7.5 kW (10 HP) IE3 motor running at 1450 rpm.

Pedrollo design the MAXIMA range for water circulation in residential swimming pools up to 1080 m³. The pump suits pool water from pH 6.5 to 8.4. It also resists heat, chemicals and salt corrosion.

The built-in pre-filter has a transparent cover for easy inspection. Its extra-large basket means less frequent cleaning. The pump body, seal insert and diffuser are glass-fibre reinforced polypropylene, with a Noryl™ impeller. The motor case has cataphoresis treatment and the screws are AISI 316. An anti-corrosion plastic base supports the pump and pipework.

2400l/min

Max flow

16m

Max head

7.5kW

10 HP

400V

Three-phase

Key features

Built-in pre-filter

Transparent cover and extra-large basket, for easy checks and less cleaning.

Corrosion resistant

High resistance to heat, chemicals and salt corrosion.

Robust and quiet

High-quality components and thick materials for long life and quiet running.

Stable base

Anti-corrosion plastic base supports the pump and the pipework.

Typical applications

Residential pools

Water circulation in pools up to 1080 m³.

Self-priming

Manometric suction head up to 4 m.

Pool water

pH 6.5 to 8.4, up to +40 °C.

Technical specifications

Brand / Series	Pedrollo — MAXIMA
Model	MAXIMA 4/1000
Pedrollo code	2113050
Supply	Three-phase 400/690 V, 50 Hz
Power (P2)	7.5 kW / 10 HP
Current	14.5 A at 400 V Δ / 8.4 A at 690 V Y
Motor	IE3, 1450 rpm; Class F insulation, IP55, continuous duty S1
Flow range	200–2400 l/min
Head range	15.5–7 m
Maximum head	16 m
Ports (DN1 / DN2)	110 / 110
Port flanges	Ø 218 mm, bolt circle 180 mm, 8 holes Ø 18 mm
Pump body, seal insert, diffuser	Glass-fibre reinforced polypropylene
Impeller	Noryl™
Mechanical seal	AR-30, Ø 30 mm, graphite/alumina oxide/NBR
Motor shaft	AISI 316 stainless steel
Pre-filter	Polypropylene, with polycarbonate cover and nylon closing knob
Base	Noryl™
O-rings	NBR
Suction lift	Manometric suction head up to 4 m
Liquid	Swimming pool water, pH 6.5–8.4
Liquid temperature	Up to +40 °C
Ambient temperature	Up to +40 °C
Maximum working pressure	2.5 bar
Dimensions	913 mm long, 596 mm high (h2), 368 mm wide (t)
Weight	76 kg
Available on request	Bronze impeller

MAXIMA range

Model	Code	Power (P2)	Flow	Head	Weight
MAXIMA 4/300	2113010	2.2 kW / 3 HP	200–1100 l/min	12–4 m	42.5 kg
MAXIMA 4/400	2113020	3 kW / 4 HP	200–1250 l/min	13.5–4 m	44.5 kg
MAXIMA 4/550	2113030	4 kW / 5.5 HP	200–2100 l/min	12.5–5 m	53.4 kg
MAXIMA 4/750	2113040	5.5 kW / 7.5 HP	200–2300 l/min	14.5–6 m	66 kg
MAXIMA 4/1000	2113050	7.5 kW / 10 HP	200–2400 l/min	15.5–7 m	76 kg

Head shown as the working range from minimum to maximum flow. Performance to Pedrollo 50 Hz data at 1450 rpm.

Frequently asked questions

Is it single-phase or three-phase?

Three-phase. It runs on 400/690 V, 50 Hz. It draws 14.5 A at 400 V Δ / 8.4 A at 690 V Y.

What flow and head does it give?

200 to 2400 l/min. Head is 15.5 m at 200 l/min and 7 m at 2400 l/min. Maximum head is 16 m.

What size pool does it suit?

Pedrollo design the MAXIMA range for residential pools up to 1080 m³.

Is it self-priming?

Yes. Manometric suction head is up to 4 m.

Does it resist salt?

Pedrollo state high resistance to heat, chemicals and salt corrosion. It suits pool water from pH 6.5 to 8.4.

What is the maximum working pressure?

2.5 bar.
