TT PuddlePal PAL750 230v Manual
- Established 1975
- Trusted by thousands of customers
TT PuddlePal PAL70 230v/1ph manual

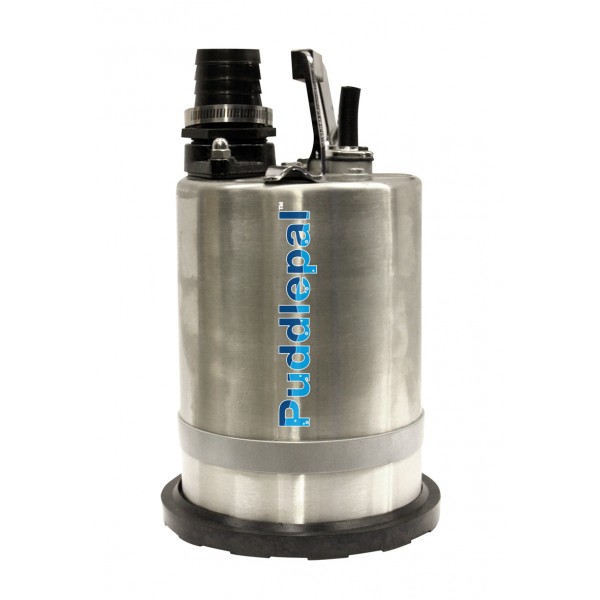

A versatile, portable, 2″ submersible residue puddle pump for clean water, featuring the ability to pump down to 1mm, therefore ideal for removing water from flat surfaces such as floors and flat-roofs and many further applications. 0.4-0.74kW, 15.5 maximum head and 310L/min maximum capacity.
More about this product
Details
A versatile, portable, submersible, residue pump for clean water. The pump features the ability to pumps down to 1mm, therefore ideal for removing water from flat surfaces such as floors on site and flat-roofs.
Applications
• Small water features
• Residue
• Cellars and Basements
• Nuisance water
• Civil construction
• Quarries and Mining
• Hire fleets
• Emergencies
• De-watering
• Lift Shafts
• Puddle
Features
• Compact, lightweight design, Stainless Steel outer casing
• Urethane impeller
• Auto-reset thermal protector
• Double mechanical seal
• 6mm solids handling
• 0.4 – 0.75kW output
• 50mm discharge
-
data sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
The Clarke PSV1A water pump is designed particulary for heavy duty applications. This robust, powerful water pump is ideal for rapidly shifting both clean and…
The KP range of pumps from Grundfos is suitable for both temporary and permanent free-standing installation, as well as installation within a collecting tank. Easy-to-install,…
The Ebara Best One MA is a submersible electric pump for clean water with maximum solid sizes of 10mm in 304 stainless steel. Applications -…
The AP series of Grundfos drainage pumps are designed for temporary and portable installations, but can also be installed on a permanent free-standing basis. The…
The Clarke HSE pumps suitable for pump both dirty and clean water.
The Goliath Super is a robust sump pump made of stainless steel plate and fibre-reinforced plastic, resistance to corrosion. It also features a vortex impeller…
Frequently Asked Questions
Quick answers to common questions about the TT PuddlePal PAL750 230v Manual. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a submersible pump?
A submersible pump is designed to operate fully submerged in the liquid it is moving. The motor is sealed inside the pump body and cooled by the surrounding water. Submersibles are used for drainage, sewage, septic tanks, deep wells and boreholes, and for raising water from sumps, cellars and floodwater. Many stocked at Anglian Pumping handle solids in suspension.
Can submersible pumps handle solids and sewage?
Yes – some submersibles are designed for clean water only, others handle solids up to 50 mm or full raw sewage. Anglian Pumping stocks ABS, BBC, Flygt and T-T Submersibles ranges that include vortex, single channel and grinder impellers for different solids handling requirements. Always match the pump to the maximum solid size and the type of effluent it will see.
When should I use a submersible pump instead of a surface pump?
Use a submersible when the water level is more than around 8 metres below the pump installation point – surface pumps cannot self-prime beyond that depth. Submersibles are also better when the liquid contains solids, when noise must be minimised, or when the pump needs to operate in confined spaces such as sumps and chambers where a surface pump would not fit.
