TT PUDDLEPAL JUNIOR – PZN/PAL/JNR/1
- Established 1975
- Trusted by thousands of customers

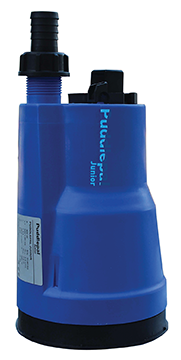

PUDDLEPAL JUNIOR – LIGHTWEIGHT PUDDLE PUMP
Puddlepal Junior is a portable pump for emergency drainage, cellars, washhouses, pools, manholes and applications where water must be pumped out 'completely'.
More about this product
PUDDLEPAL JUNIOR – LIGHTWEIGHT PUDDLE PUMP
Puddlepal Junior is a portable pump for emergency drainage, cellars, washhouses, pools, manholes and applications where water must be pumped out 'completely'.
FEATURES:
- The puddle sucker pump is a submersible drainage water pump, made of corrosion and shock resistant polypropylene and high-grade stainless steel
- Intake from 15mm and suction down to 1mm
- Motor winding with thermal winding protection mechanical seal and additional shaft seal
- In automatic mode with T-T Probematic, switch-on point approx. 25cm, switch-off point approx 3mm vertical pressure outlet 1" MPT with hose connection DN25
- Puddlepal Junior fits into a sump with an inner diameter larger than 200mm
- Protection grade IP68 – fully submersible
- Integrated non-return valve to prevent backflow
-
Data Sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
Zenit DR Blue Pro 50/2/G32V 230v/1ph Auto DR Blue Professional range of submersible drainage pumps designed for domestic and professional use. Used in cellars and…
Ebara Igrogo The Ebara Idrogo range is a 5″ submersible electric pump for wells and clean water pressure boosting. Common applications include garden watering, irrigation, general domestc…
The Clarke CSD3 multi-stage 4 impeller pump is for use with cold, clean water i.e. wells or rain water tanks and can pump up to…
Lowara DIWA pumps Submersible pumps for dirty water manufactured in AISI 304 stainless steel. Four basic models with 0.55 (0.75 HP) to 1.5 kW (2HP) rated power.…
The Ebara Best One MA is a submersible electric pump for clean water with maximum solid sizes of 10mm in 304 stainless steel. Applications -…
DOMO series, stainless steel electric pumps, are available with twin-channel or vortex impeller (DOMO VX). Designed to handle suspended solids up to 50mm in diameter…
Frequently Asked Questions
Quick answers to common questions about the TT PUDDLEPAL JUNIOR – PZN/PAL/JNR/1. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a submersible pump?
A submersible pump is designed to operate fully submerged in the liquid it is moving. The motor is sealed inside the pump body and cooled by the surrounding water. Submersibles are used for drainage, sewage, septic tanks, deep wells and boreholes, and for raising water from sumps, cellars and floodwater. Many stocked at Anglian Pumping handle solids in suspension.
Can submersible pumps handle solids and sewage?
Yes – some submersibles are designed for clean water only, others handle solids up to 50 mm or full raw sewage. Anglian Pumping stocks ABS, BBC, Flygt and T-T Submersibles ranges that include vortex, single channel and grinder impellers for different solids handling requirements. Always match the pump to the maximum solid size and the type of effluent it will see.
When should I use a submersible pump instead of a surface pump?
Use a submersible when the water level is more than around 8 metres below the pump installation point – surface pumps cannot self-prime beyond that depth. Submersibles are also better when the liquid contains solids, when noise must be minimised, or when the pump needs to operate in confined spaces such as sumps and chambers where a surface pump would not fit.
