TT Libra Micro Control Panels
TT Libra Micro Panel Dual 230v/1ph TTC/LIBMIC-D
- Established 1975
- Trusted by thousands of customers

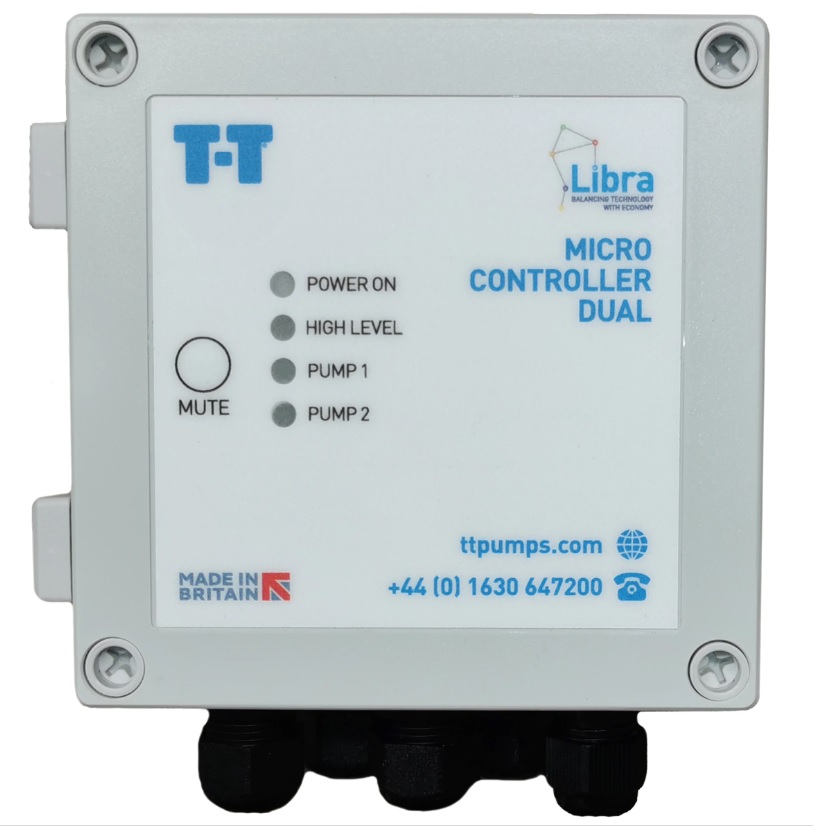

T-T Libra Micro dual pump control panel, 230 V DOL
Compact PCB-based pump controller from the Libra Control Systems range for 230 V 50 Hz single-phase motors up to 9.3 A FLC. Works with FLO float switches, Watervole level sensors and conductivity probes.
More about this product
Applications
- Pumping systems
- Basement drainage
- Flood defence systems
Specification
| Model | Libra Micro Dual |
|---|---|
| Part number | TTC/LIBMIC-D |
| Pumps | Two (duty/standby) |
| Starting | DOL |
| Max. FLC | 9.3 A |
| Supply | 230 V single-phase, 50 Hz |
| Enclosure | Compact weatherproof, IP66 |
| Dimensions (H x W x D) | 130 x 145 x 60 mm |
| Weight | 0.8 kg |
Key features
- Multipurpose, compact PCB design.
- Weatherproof enclosure.
- Cost effective & reliable.
- UK design and manufacture
- Motor control up to 9.3A full load current.
- Mains on indicator c/w mains fail fault output via the volt-free fault relay.
- Pump operating indicator(s).
- Indication of next duty pump (on the dual version).
- Pump(s) individually fused.
- Suitable for FLO range float switch, LevelPal or conductivity probe level control.
- Volt-free contact for remote monitoring of high-level/power failure alarm.
- Sensitivity adjustment for LevelPal or conductivity probe use.
- Compact weatherproof IP66 enclosure.
- Audible alarm c/w mute button.
- 12V.DC output for a remote beacon.
- ‘Test’ button facility for both pump and high-level alarm.
- Volt-free contact for remote monitoring for pump(s) fault.
-
data sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
DAB Nova Pump15 models in the DAB Nova Pump range.DAB
DAB Feka/Fekafos PumpsThe DAB Feka submersible pump has been designed for lifting dirty water.DAB
Goliath Super Pumps20 models in the Goliath Super Pumps.
Clarke CSE Pumps2 models in the Clarke CSE Pumps.Clarke
Grundfos AP-B 400v PumpsGrundfos are known throughout the drainage world for their high quality construction and easy-to-use products.Grundfos
DAB Verty Nova PumpsSubmersible pumps specifically designed for uses in narrow pits with dimensions down to 20 cm x 20 cm.DAB
Frequently Asked Questions
Quick answers to common questions about the TT Libra Micro Panel Dual 230v/1ph TTC/LIBMIC-D. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a submersible pump?
A submersible pump is designed to operate fully submerged in the liquid it is moving. The motor is sealed inside the pump body and cooled by the surrounding water. Submersibles are used for drainage, sewage, septic tanks, deep wells and boreholes, and for raising water from sumps, cellars and floodwater. Many stocked at Anglian Pumping handle solids in suspension.
Can submersible pumps handle solids and sewage?
Yes – some submersibles are designed for clean water only, others handle solids up to 50 mm or full raw sewage. Anglian Pumping stocks ABS, BBC, Flygt and T-T Submersibles ranges that include vortex, single channel and grinder impellers for different solids handling requirements. Always match the pump to the maximum solid size and the type of effluent it will see.
When should I use a submersible pump instead of a surface pump?
Use a submersible when the water level is more than around 8 metres below the pump installation point – surface pumps cannot self-prime beyond that depth. Submersibles are also better when the liquid contains solids, when noise must be minimised, or when the pump needs to operate in confined spaces such as sumps and chambers where a surface pump would not fit.
