TT DR Steel
TT DR Steel 75 230v auto PZ/DRSTEEL75/1
- Established 1975
- Trusted by thousands of customers

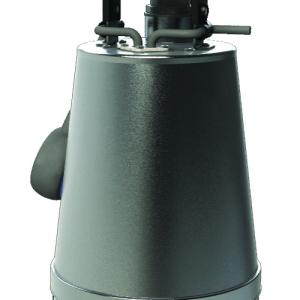

Zenit DR Steel 75 stainless steel drainage pump, 230 V single-phase

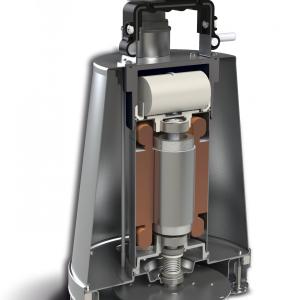

Sturdy stainless steel submersible drainage pump from the Zenit DR Steel range, with a 304 stainless steel open multi-channel impeller for clear or grey wastewater. Automatic as standard, manual on request.
Pumps up to 336 l/min and up to 16 m head, 0.75 kW motor on 230 V single-phase, 50 Hz, solids up to 12 mm. Operation: Automatic, float switch fitted.
More about this product
Applications
- Emptying tanks
- Clear or slightly soiled wastewater
- Pumping out flooded premises
- Garden sprinklers and pumping from tanks
- Domestic drainage
Specification
| Model | Zenit DR Steel 75 |
|---|---|
| Part number | PZ/DRSTEEL75/1 |
| Supply | 230 V single-phase, 50 Hz |
| Motor power | 0.75 kW |
| Full load current | 5.6 A |
| Maximum flow | 336 l/min (5.6 l/s) |
| Maximum head | 16 m (1.57 bar) |
| Discharge | 40 mm (1½”) |
| Free passage (solids) | 12 mm |
| Operation | Automatic, float switch fitted |
| Construction | Stainless steel construction |
| Impeller | Open multi-channel impeller, 304 stainless steel |
| Seals | Twin mechanical seal |
| Max. liquid temperature | 40 °C (90 °C for up to 3 minutes) |
| Cable length | 10 m |
| Weight | 8.4 kg |
Key features
Frequently asked questions
-
data sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
Submersible sewage pump with a 40mm solids handling capacity. Cast iron construction suitable for pumping light domestic waste effluent septic tanks and large basements/cellars.
Zenit DR Blue Pro 50/2/G32V 230v/1ph Auto DR Blue Professional range of submersible drainage pumps designed for domestic and professional use. Used in cellars and…
The Goliath Super is a robust sump pump made of stainless steel plate and fibre-reinforced plastic, resistance to corrosion. It also features a vortex impeller…
Submersible pumps specifically designed for uses in narrow pits with dimensions down to 20 cm x 20 cm. Suitable to pump clear water containing particles…
Lowara DOC Pumps Submersible pumps for drainage, infiltration water and emptying of pools, ponds, tanks and reservoirs. The DOC pump is mainly made of stainless…
This self-priming submersible pump can be used for continous running and provides top quality general duty for clean water pumping. The strong, durable, double insulated…
Frequently Asked Questions
Quick answers to common questions about the TT DR Steel 75 230v auto PZ/DRSTEEL75/1. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a submersible pump?
A submersible pump is designed to operate fully submerged in the liquid it is moving. The motor is sealed inside the pump body and cooled by the surrounding water. Submersibles are used for drainage, sewage, septic tanks, deep wells and boreholes, and for raising water from sumps, cellars and floodwater. Many stocked at Anglian Pumping handle solids in suspension.
Can submersible pumps handle solids and sewage?
Yes – some submersibles are designed for clean water only, others handle solids up to 50 mm or full raw sewage. Anglian Pumping stocks ABS, BBC, Flygt and T-T Submersibles ranges that include vortex, single channel and grinder impellers for different solids handling requirements. Always match the pump to the maximum solid size and the type of effluent it will see.
When should I use a submersible pump instead of a surface pump?
Use a submersible when the water level is more than around 8 metres below the pump installation point – surface pumps cannot self-prime beyond that depth. Submersibles are also better when the liquid contains solids, when noise must be minimised, or when the pump needs to operate in confined spaces such as sumps and chambers where a surface pump would not fit.
