TT APG RANGE – HIGH HEAD CLEAR WATER PUMP
TT APG 300/2/G50H 400V/3Ph – PZ/1464.002
- Established 1975
- Trusted by thousands of customers

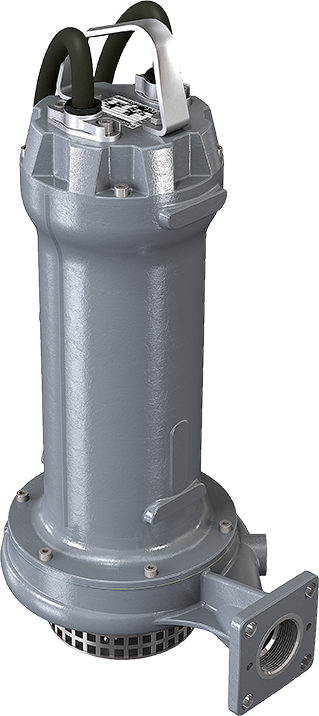

Zenit APG 300/2/G50H high-head submersible pump, 400 V three-phase
Large cast iron high-head drainage pump from the Zenit Grey Range, with an open multi-channel impeller, double mechanical seals in an oil bath and an oil-filled motor.
Pumps up to 456 l/min and up to 29 m head, 2.2 kW motor on 400 V three-phase, 50 Hz, solids up to 8 mm.
More about this product
Applications
- Clear water, rainwater and seepage water
- Irrigation and fish farming
- Fountains and water features
- Industrial applications and car washes
Specification
| Model | Zenit APG 300/2/G50H |
|---|---|
| Part number | PZ/1464.002 |
| Supply | 400 V three-phase, 50 Hz |
| Motor power | 2.2 kW |
| Full load current | 4.6 A |
| Maximum flow | 456 l/min (7.6 l/s) |
| Maximum head | 29 m (2.84 bar) |
| Discharge | 50 mm (2″) |
| Free passage (solids) | 8 mm |
| Construction | Cast iron construction |
| Impeller | Open multi-channel impeller |
| Seals | Double mechanical seal in an oil bath |
| Cable length | 10 m |
| Weight | 43.2 kg |
Key features
Frequently asked questions
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
The KP range of pumps from Grundfos is suitable for both temporary and permanent free-standing installation, as well as installation within a collecting tank. Easy-to-install,…
The AP series of Grundfos drainage pumps are designed for temporary and portable installations, but can also be installed on a permanent free-standing basis. The…
DOMO series, stainless steel electric pumps, are available with twin-channel or vortex impeller (DOMO VX). Designed to handle suspended solids up to 50mm in diameter…
Lowara DIWA pumps Submersible pumps for dirty water manufactured in AISI 304 stainless steel. Four basic models with 0.55 (0.75 HP) to 1.5 kW (2HP) rated power.…
This self-priming submersible pump can be used for continous running and provides top quality general duty for clean water pumping. The strong, durable, double insulated…
The Ebara Idrogo is a 5" submersible multistage pump designed for clean water applications including well pumping, pressure boosting, garden irrigation and domestic water supply.…
Frequently Asked Questions
Quick answers to common questions about the TT APG 300/2/G50H 400V/3Ph – PZ/1464.002. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a submersible pump?
A submersible pump is designed to operate fully submerged in the liquid it is moving. The motor is sealed inside the pump body and cooled by the surrounding water. Submersibles are used for drainage, sewage, septic tanks, deep wells and boreholes, and for raising water from sumps, cellars and floodwater. Many stocked at Anglian Pumping handle solids in suspension.
Can submersible pumps handle solids and sewage?
Yes – some submersibles are designed for clean water only, others handle solids up to 50 mm or full raw sewage. Anglian Pumping stocks ABS, BBC, Flygt and T-T Submersibles ranges that include vortex, single channel and grinder impellers for different solids handling requirements. Always match the pump to the maximum solid size and the type of effluent it will see.
When should I use a submersible pump instead of a surface pump?
Use a submersible when the water level is more than around 8 metres below the pump installation point – surface pumps cannot self-prime beyond that depth. Submersibles are also better when the liquid contains solids, when noise must be minimised, or when the pump needs to operate in confined spaces such as sumps and chambers where a surface pump would not fit.
