Pedrollo VXC4 4-Pole Vortex Sewage Pumps

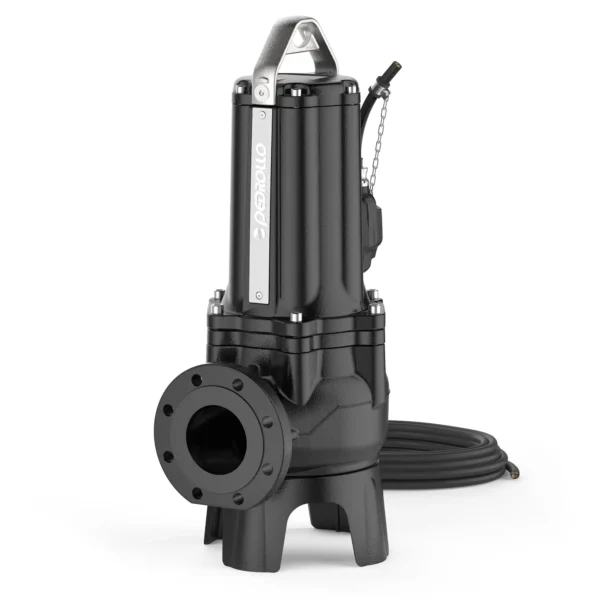

Pedrollo VXC4 40/100 Three Phase 2302690
- Established 1975
- Trusted by thousands of customers
The Pedrollo VXC4 40/100 is a 3 kW (4 HP) 4-pole submersible vortex pump for sewage on a 400 V three-phase supply, delivering up to 1700 l/min and 7.6 m head.
Part of Pedrollo’s heavy-duty VXC4 range: a 1,450 rpm, three-phase vortex pump in thick cast iron with DN100 flanged delivery.
More about this product
Product overview
The Pedrollo VXC4 40/100 is a 3 kW (4 HP) 4-pole submersible vortex pump for sewage and sludge on a 400 V three-phase supply, covering 300 to 1700 l/min with a working head of 7.6 m down to 2 m. The slower 1,450 rpm motor and VORTEX impeller give robust, long-lasting service.
The VXC4 is built from thick stainless steel and cast iron for exceptional robustness, abrasion resistance and durability. It drains sewage, sludge-mixed water, and activated and putrid sludge, in sewers, tunnels, excavations, canals and underground car parks. The motor has a built-in three-phase thermal protector that trips on overheating or abnormal current draw.
Key features
Typical applications
Technical specifications
| Brand / Series | Pedrollo — VXC4 |
| Model | VXC4 40/100 |
| Pedrollo code | 2302690 |
| Supply | 400 V three-phase |
| Motor power (P2) | 3 kW / 4 HP |
| Motor | 400 V three-phase motor with built-in thermal protection |
| Flow range | 300–1700 l/min |
| Head range | 7.6–2 m |
| Pump body | Cast iron (cataphoresis treated) |
| Impeller | VORTEX, cast iron (cataphoresis treated) |
| Motor holder and cover | Cast iron (cataphoresis treated) |
| Motor shaft | AISI 431 stainless steel |
| Mechanical seals | Double mechanical seal with oil chamber: silicon carbide / graphite / NBR (motor side), silicon carbide / silicon carbide / NBR (pump side) |
| Speed | 4-pole, 1,450 rpm |
| Port | DN100 (4″) flanged |
| Solids passage | Up to Ø 100 mm |
| Power cable | 10 m (H07 RN-F) |
| Maximum depth | 10 m below water level |
| Minimum immersion (continuous) | 550 mm |
| Liquid temperature | Up to +40 °C |
| Insulation / protection | Class F / IP X8 |
| Liquid | Sewage, sludge-mixed water, activated and putrid sludge |
VXC4 range
| Model | Code | Supply | Power | Flow | Head |
|---|---|---|---|---|---|
| VXC4 40/100 | 2302690 | Three Phase | 3 kW / 4 HP | 300–1700 l/min | 7.6–2 m |
| VXC4 50/100 | 2302700 | Three Phase | 3.7 kW / 5 HP | 300–2000 l/min | 10.2–2.7 m |
| VXC4 55/100 | 2302710 | Three Phase | 4 kW / 5.5 HP | 300–2200 l/min | 11.7–3 m |
| VXC4 100/80 | 2302720 | Three Phase | 7.5 kW / 10 HP | 800–4000 l/min | 14.7–4.5 m |
| VXC4 125/80 | 2302730 | Three Phase | 9.2 kW / 12.5 HP | 800–4250 l/min | 16.7–5 m |
| VXC4 150/80 | 2302740 | Three Phase | 11 kW / 15 HP | 800–4500 l/min | 18.8–5.5 m |
| VXC4 200/80 | 2302750 | Three Phase | 15 kW / 20 HP | 800–5000 l/min | 22.1–7 m |
Head shown as the working range from minimum to maximum flow. Performance to Pedrollo 50 Hz data.
Frequently asked questions
What size solids will it pass?
Up to Ø 100 mm on the VXC4 40/100, 50/100 and 55/100, and up to Ø 80 mm on the VXC4 100/80 to 200/80.
Is there a single-phase version?
No. The VXC4 is three-phase only.
Can it go on a guide rail?
Yes. Pedrollo’s VXC4 guide-rail kit (vertical delivery, 2″ guide tubes) is available separately.
-
