Pedrollo TRITUS Grinder Pumps

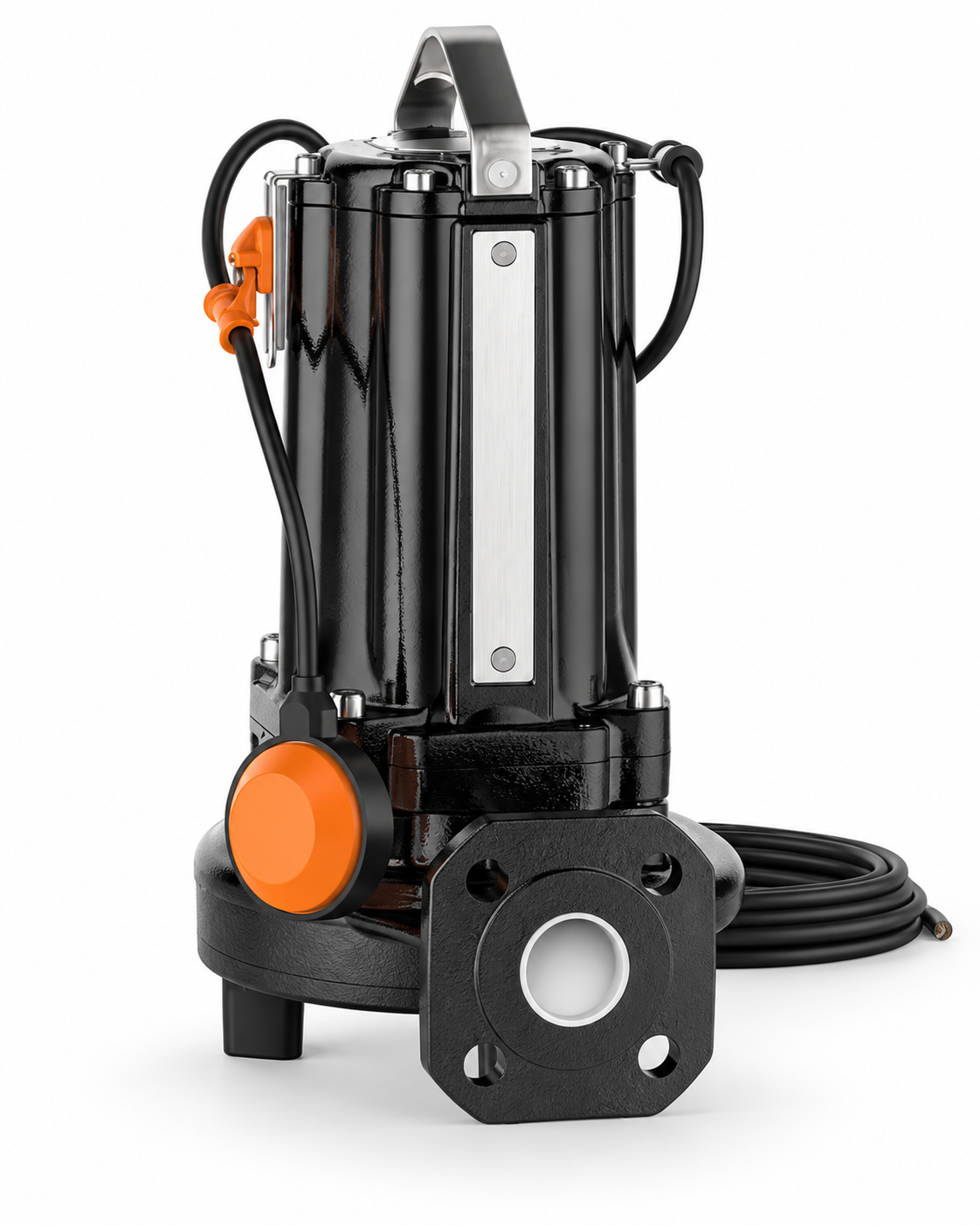

Pedrollo TRITUS TR 1.5 Three Phase 2302370
- Established 1975
- Trusted by thousands of customers
The Pedrollo TR 1.5 is a 1.5 kW (2 HP) submersible grinder pump for sewage on a 400 V three-phase supply, delivering up to 270 l/min and 25 m head.
Part of Pedrollo’s TRITUS range in thick cast iron, with a hardened AISI 440C grinder for pumping sewage through small-diameter pipes.
More about this product
Product overview
The Pedrollo TR 1.5 is a 1.5 kW (2 HP) submersible grinder pump for sewage on a 400 V three-phase supply, covering 20 to 270 l/min with a working head of 25 m down to 2 m. The grinder cuts solids and fibres so sewage can be pumped under pressure through small-diameter pipework.
The TRITUS is built from thick cast iron for exceptional robustness, abrasion resistance and long life. A robust hardened stainless steel blade cuts through the solids and fibres in domestic and civil waste water and sewage, with a micro-cast AISI 304 impeller, an AISI 431 shaft and a double mechanical seal in an oil chamber.
Key features
Typical applications
Technical specifications
| Brand / Series | Pedrollo — TRITUS |
| Model | TR 1.5 |
| Pedrollo code | 2302370 |
| Supply | 400 V three-phase |
| Motor power (P2) | 1.5 kW / 2 HP |
| Motor | 400 V three-phase motor; built-in thermal protector must be connected to a control panel |
| Flow range | 20–270 l/min |
| Head range | 25–2 m |
| Pump body | Cast iron (cataphoresis treated) |
| Impeller | Micro-cast AISI 304 stainless steel |
| Grinder | Hardened AISI 440C stainless steel |
| Motor holder | Cast iron (cataphoresis treated) |
| Motor shaft | AISI 431 stainless steel |
| Mechanical seals | Double mechanical seal with oil chamber: ceramic / graphite / NBR (motor side), silicon carbide / silicon carbide / NBR (pump side) |
| Port | DN40 (1½″) flanged, PN6 |
| Float switch | None (single-phase models only) |
| Power cable | 10 m (H07 RN-F) |
| Bottom drainage level | Down to 95 mm |
| Minimum immersion (continuous) | 350 mm |
| Maximum depth | 10 m below water level |
| Liquid temperature | Up to +40 °C |
| Insulation / protection | Class F / IP X8 |
| Liquid | Domestic and civil waste water and sewage |
TRITUS range
| Model | Code | Supply | Power | Flow | Head |
|---|---|---|---|---|---|
| TRm 0.75 | 2302270 | Single Phase | 0.75 kW / 1 HP | 20–125 l/min | 15–2 m |
| TRm 0.9 | 2302280 | Single Phase | 0.9 kW / 1.25 HP | 20–170 l/min | 15–2 m |
| TRm 1.1 | 2302290 | Single Phase | 1.1 kW / 1.5 HP | 20–140 l/min | 21.5–2 m |
| TRm 1.3 | 2302300 | Single Phase | 1.3 kW / 1.75 HP | 20–220 l/min | 22.5–2 m |
| TRm 1.5 | 2302310 | Single Phase | 1.5 kW / 2 HP | 20–270 l/min | 25–2 m |
| TRm 2.2 AP | 2302320 | Single Phase | 2.2 kW / 3 HP | 20–275 l/min | 35–2 m |
| TR 0.75 | 2302330 | Three Phase | 0.75 kW / 1 HP | 20–125 l/min | 15–2 m |
| TR 0.9 | 2302340 | Three Phase | 0.9 kW / 1.25 HP | 20–170 l/min | 15–2 m |
| TR 1.1 | 2302350 | Three Phase | 1.1 kW / 1.5 HP | 20–140 l/min | 21.5–2 m |
| TR 1.3 | 2302360 | Three Phase | 1.3 kW / 1.75 HP | 20–220 l/min | 22.5–2 m |
| TR 1.5 | 2302370 | Three Phase | 1.5 kW / 2 HP | 20–270 l/min | 25–2 m |
| TR 2.2 | 2302380 | Three Phase | 2.2 kW / 3 HP | 20–280 l/min | 30–2 m |
| TR 2.2 AP | 2302390 | Three Phase | 2.2 kW / 3 HP | 20–275 l/min | 35–2 m |
| TR 3 AP | 2302400 | Three Phase | 3 kW / 4 HP | 20–305 l/min | 42.5–2 m |
| TR 3 | 2305490 | Three Phase | 3 kW / 4 HP | 20–400 l/min | 33.5–2 m |
| TR 4 | 2305500 | Three Phase | 4 kW / 5.5 HP | 20–410 l/min | 39.5–2 m |
| TR 5 | 2305600 | Three Phase | 5 kW / 6.7 HP | 20–420 l/min | 46–2 m |
| TR 6 | 2305610 | Three Phase | 6 kW / 8 HP | 20–430 l/min | 54–2 m |
Head shown as the working range from minimum to maximum flow. Performance to Pedrollo 50 Hz data.
Frequently asked questions
Why use a grinder pump?
The grinder cuts solids and fibres so sewage can be pumped under pressure through small-diameter pipework into the sewer system.
What comes with the single-phase models?
A control panel (ON/OFF switch, manual-reset motor protection, run and start capacitors) and a float switch.
What do the three-phase models need?
A control panel and level control. On the TR 1.5, 2.2, 2.2 AP, 3 AP, 3 and 4, the built-in thermal protector must be connected to the panel for the warranty to apply.
-
