Pedrollo TOP Vortex
Pedrollo TOP 3 Vortex GM 230v
In stock
- Established 1975
- Trusted by thousands of customers
Pedrollo TOP 3 Vortex GM 230v

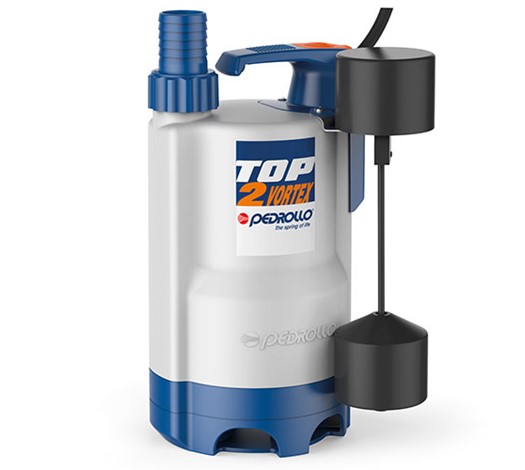

The TOP-VORTEX/GM pump is suitable for use with dirty water and comes complete with a vertical float switch meaning that the pump can be used in particularly small spaces.
As a result of the design solutions that have been adopted, such as the complete cooling of the motor and the shaft with double seal, these pumps are easy to use and reliable.
They are suitable for use in applications such as clearing dirty water, emptying tanks, discharging domestic waste water, and for emptying small collection traps containing suspended solids up to a maximum of Ø 20 mm.
More about this product
Liquid type: dirty water
Uses: domestic
Applications: drainage, emptying tanks
typology: submersible
Family: submersible pumps
Performance Range:
- Flow rate up to 180 l/min (10,8 m³/h)
- Head up to 8 m
Application Limit:
- Temperature of the liquid to +40 °C
• 3 m maximum immersion depth
(with a sufficiently long power cable)
• Passage of suspended solids up to Ø 25 mm
• Suction down to 25 mm above ground level
• Continuous service S1
MODEL
TOP 2 VORTEX/GM 5MT
TOP 2 VORTEX/GM 10MT
TOP 3 VORTEX/GM 5MT
TOP 3 VORTEX/GM 10MT
-
data sheet PDFDownload
