Ebara Right Pumps
Ebara Right 75 M 10m 230v 1771031621
- Established 1975
- Trusted by thousands of customers
Ebara Right Pumps

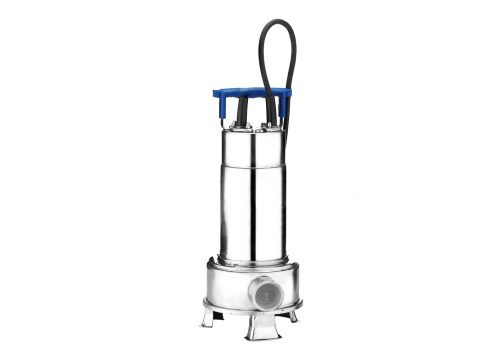

The manual, single phase Right 75 M from Ebara is a submersible dirty water pump made of stainless steel AISI 304, double mechanical seals ensure long life and reliability. Suitable for dirty water systems with some solids. Applications include wastewater treatment plants and final effluent pumping, irrigation, and water displays.
Specifications
- Maximum liquid temperature: 50°C
- Maximum immersion: 10 mts
- Maximum passage of solids: 35 mm
Materials
- Pump casing, impeller, cover, casing cover and motor casing in AISI 304
- Shaft in AISI 303
- Double mechanical seal with interposed oil chamber: upper in carbon/ceramic/NBR, lower in Sic/SiC/NBR
Technical Data
- Asynchronous 2 poles motor
- Insulation class F
- Protection degree IP68
- 1~, 230V +- 10%, 50Hz
- Permanent split capacitor and automatic thermal overload protection for single-phase version
- DNM 1”½
More about this product
- Product Code: 1771031621
- Single Phase: 1~, 230V, 50Hz
- Power: 0.55kW
- Current: 4.8A
- Discharge: DNM 1½"
-
data sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
The Clarke HSE pumps suitable for pump both dirty and clean water.
The Hippo 2 offers high performance at a low price, ideal for home and garden use this great submersible water pump will pump with 3,2mm…
The Ebara Best One MA is a submersible electric pump for clean water with maximum solid sizes of 10mm in 304 stainless steel. Applications -…
The AP series of Grundfos drainage pumps are designed for temporary and portable installations, but can also be installed on a permanent free-standing basis. The…
Lowara DOC Pumps Submersible pumps for drainage, infiltration water and emptying of pools, ponds, tanks and reservoirs. The DOC pump is mainly made of stainless…
The DAB Feka submersible pump has been designed for lifting dirty water. Explore the Feka and Fekafos range here at APS for quality pumps at…
Frequently Asked Questions
Quick answers to common questions about the Ebara Right 75 M 10m 230v 1771031621. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a submersible pump?
A submersible pump is designed to operate fully submerged in the liquid it is moving. The motor is sealed inside the pump body and cooled by the surrounding water. Submersibles are used for drainage, sewage, septic tanks, deep wells and boreholes, and for raising water from sumps, cellars and floodwater. Many stocked at Anglian Pumping handle solids in suspension.
Can submersible pumps handle solids and sewage?
Yes – some submersibles are designed for clean water only, others handle solids up to 50 mm or full raw sewage. Anglian Pumping stocks ABS, BBC, Flygt and T-T Submersibles ranges that include vortex, single channel and grinder impellers for different solids handling requirements. Always match the pump to the maximum solid size and the type of effluent it will see.
When should I use a submersible pump instead of a surface pump?
Use a submersible when the water level is more than around 8 metres below the pump installation point – surface pumps cannot self-prime beyond that depth. Submersibles are also better when the liquid contains solids, when noise must be minimised, or when the pump needs to operate in confined spaces such as sumps and chambers where a surface pump would not fit.
