Ebara Multigo Pumps
Ebara Multigo 40/08 230v/3ph
In stock
- Established 1975
- Trusted by thousands of customers
Ebara Multigo pumps are multistage centrifugal pumps, with motors that are cooled by the flow of water passing the motor as it is being pumped. Double mechanical seals are fitted with a lubricating chamber between them to assure a longer life.
Suitable applications include: –
- Pressure boosting
- Water supply
- Fountains
- Dancing water features
- Sprinkler sytems
- Irrigation
Each pump is supplied with 5m of HO7 RN-F power cable.
Materials of construction
- Pump body, casing cover and motor casing from AISI 304 Stainless Steel
- Impeller and diffuser in Technopolymer
- Shaft in AISI 416 Stainless Steel
- Mechanical seal in Carbon/Ceramic/Nitrile
More about this product

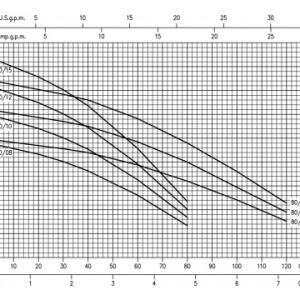

PUMP TECHNICAL DATA
• Total head from 75.7 to 13.4 m
• Capacity from 1.2 to 7.2 m3/h
• Hydraulic efficiency index MEI > 0.4
• Liquid temperature up to +40°C
• Maximum suction depth: 6 m
• IP 68 protection degree
-
data sheet PDFDownload
