Ebara DW – DW VOX pumps 230v
Ebara DW VOXF M 75 A 230v Automatic
- Established 1975
- Trusted by thousands of customers
Ebara DW – DW VOX Pumps

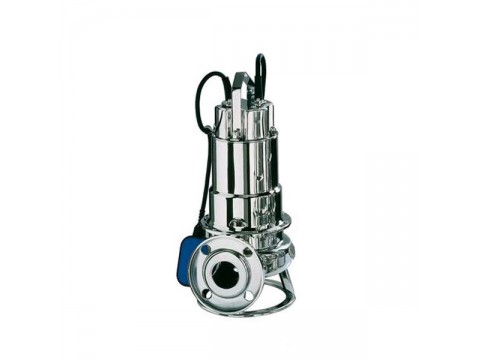

The single phase DW VOXF M 75 A from Ebara comes as a submersible electric pump in AISI 304 stainless steel for sewage.
Applications
- Evacuation of civil and industrial waste waters
- Drainage of wells and excavations
- Draining sub-layer zones
- Generally moving foul waste liquids also containing solid substances and/or suspended filamentary substances
- Emptying seepage water
- Moving sewage (sanitary services)
- Emptying cesspits
Technical Details
- Equipped with 10 m of H07 RN-F power supply cable
- Auto: With float
- Vortex type impeller
Technical Data
- Maximum immersion: 7 m
- Maximum temperature of the liquid: 40°C
- Max. solids size for passage: 50 mm
- Self-ventilated 2 pole asynchronous motor
- Class of insulation F
- IPX8 Protection rating
- 230V ±10%, 50Hz single phase voltage
- Permanent capacitor inserted and thermo-amperometric protection with automatic rearm incorporated for the single phase motor
- Protection under user’s responsibility for the three phase version
- Flanged version: discharge ø 50 DN 50
Materials
- Pump body, impeller, motor cover, seal housing disc and motor case in AISI 304
- Shaft in AISI 303
- Twin mechanical seal with interposed oil chamber:
– upper in Carbon/Ceramic/NBR (motor side)
– lower in SiC/SiC/NBR (pump side) - Spacer in cast iron (only for DW-DW VOX 300)
More about this product
- DW VOX: Vortex impeller
- F: Flanged type
- M: Single Phase – 230V – 50Hz
- 75: Type
- A: With floatswitch
- Code: 1598031221
- Power: 0.5kW, 0.75HP
- Discharge: DN50
- Weight: 16.4kg
-
data sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
The Clarke PSV1A water pump is designed particulary for heavy duty applications. This robust, powerful water pump is ideal for rapidly shifting both clean and…
The Ebara Best One MA is a submersible electric pump for clean water with maximum solid sizes of 10mm in 304 stainless steel. Applications -…
The Hippo 2 offers high performance at a low price, ideal for home and garden use this great submersible water pump will pump with 3,2mm…
Lowara DIWA pumps Submersible pumps for dirty water manufactured in AISI 304 stainless steel. Four basic models with 0.55 (0.75 HP) to 1.5 kW (2HP) rated power.…
This self-priming submersible pump can be used for continous running and provides top quality general duty for clean water pumping. The strong, durable, double insulated…
The Goliath Super is a robust sump pump made of stainless steel plate and fibre-reinforced plastic, resistance to corrosion. It also features a vortex impeller…
Frequently Asked Questions
Quick answers to common questions about the Ebara DW VOXF M 75 A 230v Automatic. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a submersible pump?
A submersible pump is designed to operate fully submerged in the liquid it is moving. The motor is sealed inside the pump body and cooled by the surrounding water. Submersibles are used for drainage, sewage, septic tanks, deep wells and boreholes, and for raising water from sumps, cellars and floodwater. Many stocked at Anglian Pumping handle solids in suspension.
Can submersible pumps handle solids and sewage?
Yes – some submersibles are designed for clean water only, others handle solids up to 50 mm or full raw sewage. Anglian Pumping stocks ABS, BBC, Flygt and T-T Submersibles ranges that include vortex, single channel and grinder impellers for different solids handling requirements. Always match the pump to the maximum solid size and the type of effluent it will see.
When should I use a submersible pump instead of a surface pump?
Use a submersible when the water level is more than around 8 metres below the pump installation point – surface pumps cannot self-prime beyond that depth. Submersibles are also better when the liquid contains solids, when noise must be minimised, or when the pump needs to operate in confined spaces such as sumps and chambers where a surface pump would not fit.
