Ebara Best Pumps

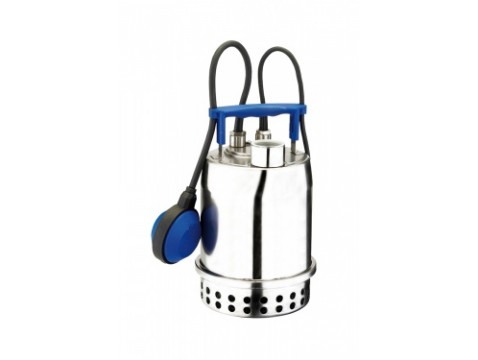

Ebara Best One VOX MA 230v
In stock
- Established 1975
- Trusted by thousands of customers
The Ebara Best VOX MA is a submersible electric pump for clean water with maximum solid sizes of 20mm in 304 stainless steel.
Applications –
- Draining basements, garages, cellars or places subject to flooding.
- Garden fountains
- Emptying of tanks and reservoirs
More about this product
TECHNICAL DETAILS

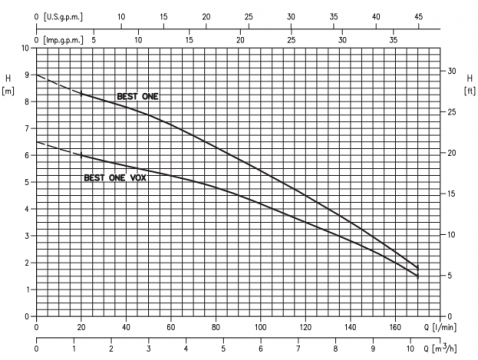

• Total head from 1.8 to 8.3 m for BEST ONE and from 1.5 to 6 m for BEST ONE VOX
• Capacity from 1.2 to 10.2 m3/h
• Maximum immersion 5 m
• Maximum liquid temperature 50°C
• Maximum solid size passage:
– 10 mm
– 20 mm for version VOX (VORTEX)
SPECIAL VERSIONS
– Version MA with float
-Version VORTEX (VOX)
– Version MA with magnetic float MS vertical with reduced dimensions for clean water
ACCESSORIES
• 1”¼ hose connector and relative hose clamp (optional)
• Minimum suction device up to 3 mm
- Part no: 1741101600
- Discharge: 1¼"
- Best One: Model
- Vox: Vortex impeller
- M: 230V ±10%, 50Hz single phase voltage
- A: With floatswitch
Applications
- Draining basements, garages, cellars or places subject to flooding
- Supplying garden fountains
- Easy emptying of tanks and reservoirs
Technical Details
- Standard mechanical seal
- New and revised design and shape
- Technologically and mechanically optimised
- Their versatility means they can be used in fixed or mobile installations
- Equipped with 5 m of H05 RN-F power supply cable for indoor use (10 m for outdoor use), with or without float
Technical Data
- Maximum immersion: 5 m
- Maximum temperature of the liquid: 50°C
- Max. solids size for passage:
– 10 mm
– 20 mm for the VOX version (Vortex) - Asynchronous motor, 2 poles
- Class of insulation F
- IP68 Protection rating
- 230V ±10%, 50Hz single phase voltage, 400 ±10%, 50Hz three phase voltage
- Discharge connection: G1¼
Materials
- External casing, impeller, filter, motor cover, seal housing disc and motor case in AISI 304
- Shaft in AISI 303
- Mechanical seal in Carbon/Ceramic/NBR
-
data sheet PDFDownload
