Ebara Best One MS 230v - Anglian Pumping Services

Our Price £210.00 Inc Vat £175.00 Ex Vat

In stock

Established 1975
Trusted by thousands of customers

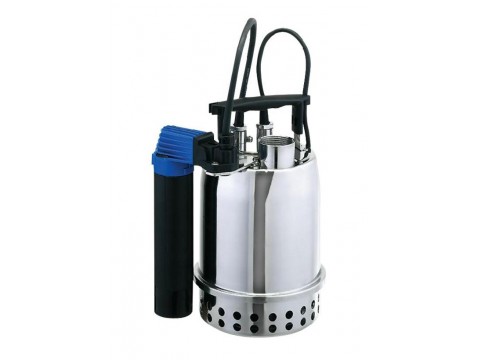

The Ebara Best One MS is a submersible pump designed for clean water applications. It is a variation within the Ebara Best One series, featuring a magnetic float switch. This model is ideal for use in confined spaces where traditional float switches may not operate efficiently. Below are its key characteristics and applications:

Key Features of the Best One MS:

Magnetic Float Switch:
- Allows for automatic operation based on water levels.
- Suitable for applications where space is limited, as the magnetic float switch operates vertically.
Compact Design:
- Optimized for small spaces such as narrow pits, tanks, and sumps.
Material:
- Constructed with AISI 304 stainless steel for corrosion resistance and durability.
Performance:
- Designed for clean water or slightly dirty water with very small solid particles.
Maximum Suction:
- Can operate with water levels as low as 3 mm using an optional suction device.

Typical Applications:

Draining small flooded areas (basements, garages, etc.).
Emptying tanks or reservoirs.
Irrigation systems for gardens and small-scale agriculture.
Water removal in tight spaces.

Technical Specifications:

Power Supply: Single-phase, 230V ±10%, 50Hz.
Maximum Head: Up to 8.3 meters (depending on the specific model within the Best One series).
Maximum Flow Rate: Up to 10.2 m³/h.
Maximum Immersion Depth: 5 meters.
Liquid Temperature: Up to 50°C.
Solid Passage: Up to 10 mm diameter.

The Best One MS is a versatile and efficient solution for domestic and light commercial applications, particularly in settings where space constraints make standard float switches impractical.

Full Description

More about this product

Full Description

TECHNICAL DETAILS

• Total head from 1.8 to 8.3 m for BEST ONE and from 1.5 to 6 m for BEST ONE VOX
• Capacity from 1.2 to 10.2 m3/h
• Maximum immersion 5 m
• Maximum liquid temperature 50°C
• Maximum solid size passage:
– 10 mm
– 20 mm for version VOX (VORTEX)

SPECIAL VERSIONS

– Version MA with float
-Version VORTEX (VOX)
– Version MA with magnetic float MS vertical with reduced dimensions for clean water

ACCESSORIES

• 1”¼ hose connector and relative hose clamp (optional)
• Minimum suction device up to 3 mm

Additional Information

Part no: 1712101600
Discharge: 1¼”
Best One: Model
M: 230V ±10%, 50Hz single phase voltage
S: With tube float

Applications

Draining basements, garages, cellars or places subject to flooding
Supplying garden fountains
Easy emptying of tanks and reservoirs

Technical Details

Standard mechanical seal
New and revised design and shape
Technologically and mechanically optimised
Their versatility means they can be used in fixed or mobile installations
Equipped with 5 m of H05 RN-F power supply cable for indoor use (10 m for outdoor use), with or without float

Technical Data

Maximum immersion: 5 m
Maximum temperature of the liquid: 50°C
Max. solids size for passage:
– 10 mm
– 20 mm for the VOX version (Vortex)
Asynchronous motor, 2 poles
Class of insulation F
IP68 Protection rating
230V ±10%, 50Hz single phase voltage, 400 ±10%, 50Hz three phase voltage
Discharge connection: G1¼

Materials

External casing, impeller, filter, motor cover, seal housing disc and motor case in AISI 304
Shaft in AISI 303
Mechanical seal in Carbon/Ceramic/NBR
