Ebara DS Submersible Drainage Pump
Ebara 100DS55.5-3 Submersible Drainage Pump 400v
- Established 1975
- Trusted by thousands of customers

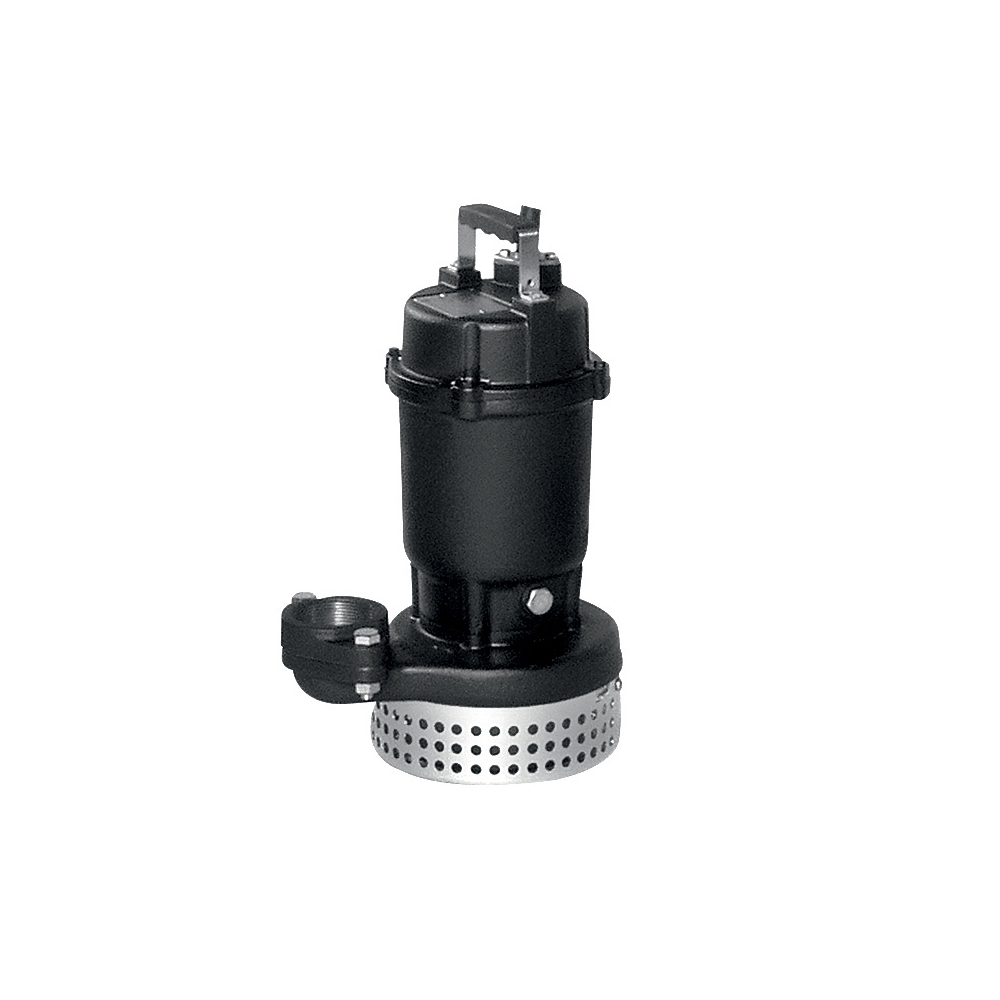

Ebara 100DS55.5-3 submersible drainage pump. Cast iron submersible pump with semi-open (with strainer) impeller, IP68 — up to 31.6 m head, 75 m³/h.
- 5.5 kW, 400v three phase
- Up to 31.6 m head, flows to 75 m³/h
- IP68 submersible, cast iron body
- Passes solids up to 8 mm
More about this product
The Ebara 100DS55.5-3 Submersible Drainage Pump 400v is a cast iron submersible pump for waste and dirty water, with a 5.5 kW 400v motor and a semi-open (with strainer) impeller passing solids up to 8 mm. Fully submersible to IP68, it delivers up to 31.6 m head and flows to 75 m³/h.
Performance
Head delivered across the working flow range (clean water, to ISO 9906 Annex A):
| Flow m³/h | 0 | 18 | 24 | 30 | 48 | 57 | 70.2 | 75 |
|---|---|---|---|---|---|---|---|---|
| l/min | 0 | 300 | 400 | 500 | 800 | 950 | 1170 | 1250 |
| Head m | 31.6 | 30.7 | 30 | 29.4 | 27.8 | 24.5 | 14.8 | 11.6 |
Specification
| Pump type | Submersible drainage pump |
| Impeller | Semi-open (with strainer) |
| Max solids size | 8 mm |
| Discharge | DN100 flanged, PN10 |
| Motor power | 5.5 kW |
| Power supply | 400v / 3ph / 50Hz |
| Speed | ≈ 2850 rpm (2-pole) |
| Protection | IP68 submersible |
| Max liquid temp | 40°C |
| Max submergence | 3 m (1.5 kW) / 7 m (2.2 kW+) |
| Casing | Cast iron |
| Impeller material | Cast iron |
Typical applications
Drainage of waste and dirty water, pit and cellar emptying, surface-water transfer and general dewatering.
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
The Clarke PSV1A water pump is designed particulary for heavy duty applications. This robust, powerful water pump is ideal for rapidly shifting both clean and…
The AP series of Grundfos drainage pumps are designed for temporary and portable installations, but can also be installed on a permanent free-standing basis. The…
The Clarke PSD1A stainless steel pump designed to clear water from ponds and pools. Suitable for operating waterfalls, fountains, irrigating gardens and draining cellars. Includes a…
The Clarke PVP11A stainless steel pump ideal for heavy duty draining applications including pits, sumps, ditches, fottings etc. It can be used to remove both…
DOMO series, stainless steel electric pumps, are available with twin-channel or vortex impeller (DOMO VX). Designed to handle suspended solids up to 50mm in diameter…
The Ebara Best One MA is a submersible electric pump for clean water with maximum solid sizes of 10mm in 304 stainless steel. Applications -…
Frequently Asked Questions
Quick answers to common questions about the Ebara 100DS55.5-3 Submersible Drainage Pump 400v. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a submersible pump?
A submersible pump is designed to operate fully submerged in the liquid it is moving. The motor is sealed inside the pump body and cooled by the surrounding water. Submersibles are used for drainage, sewage, septic tanks, deep wells and boreholes, and for raising water from sumps, cellars and floodwater. Many stocked at Anglian Pumping handle solids in suspension.
Can submersible pumps handle solids and sewage?
Yes – some submersibles are designed for clean water only, others handle solids up to 50 mm or full raw sewage. Anglian Pumping stocks ABS, BBC, Flygt and T-T Submersibles ranges that include vortex, single channel and grinder impellers for different solids handling requirements. Always match the pump to the maximum solid size and the type of effluent it will see.
When should I use a submersible pump instead of a surface pump?
Use a submersible when the water level is more than around 8 metres below the pump installation point – surface pumps cannot self-prime beyond that depth. Submersibles are also better when the liquid contains solids, when noise must be minimised, or when the pump needs to operate in confined spaces such as sumps and chambers where a surface pump would not fit.
