Lowara DOMO Pumps
Lowara DOMO15/B GT 230V 107670420XXXUBA
- Established 1975
- Trusted by thousands of customers

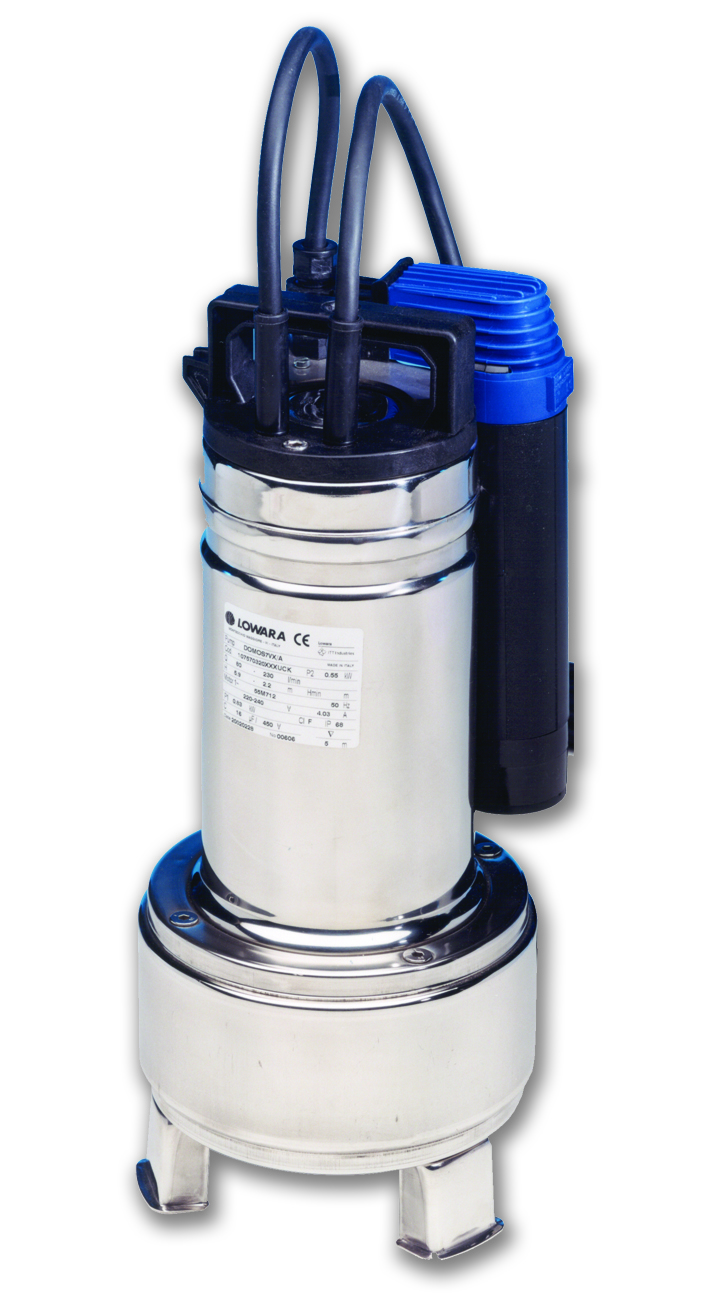

The Lowara DOMO15/B GT 230V (107670420XXXUBA) is a stainless steel submersible pump for dirty water and effluent, with a twin-channel impeller in stainless steel, a 1.1 kW 230V single phase motor and solids passage up to 50 mm. It pumps up to 600 l/min (36 m³/h) with up to 12.7 m of head. This is the GT version with a tube float switch for automatic operation.
DOMO pumps handle effluent with suspended solids, empty septic tanks and residential sumps and drain flooded basements and garages. They have an Rp 2″ discharge and the DRIVELUB seal system with a silicon carbide mechanical seal and oil chamber.
More about this product
The Lowara DOMO15/B GT 230V (107670420XXXUBA) is a stainless steel submersible pump for dirty water and effluent, with a twin-channel impeller in stainless steel, a 1.1 kW 230V single phase motor and solids passage up to 50 mm. It pumps up to 600 l/min (36 m³/h) with up to 12.7 m of head. This is the GT version with a tube float switch for automatic operation.
DOMO pumps handle effluent with suspended solids, empty septic tanks and residential sumps and drain flooded basements and garages. They have an Rp 2″ discharge and the DRIVELUB seal system with a silicon carbide mechanical seal and oil chamber.
Key specifications
| Model | Lowara DOMO15/B GT 230V |
| Lowara part no. | 107670420XXXUBA |
| Hydraulic | DOMO 15 — twin-channel impeller |
| Rated motor power | 1.1 kW |
| Supply | 230V single phase, 50 Hz |

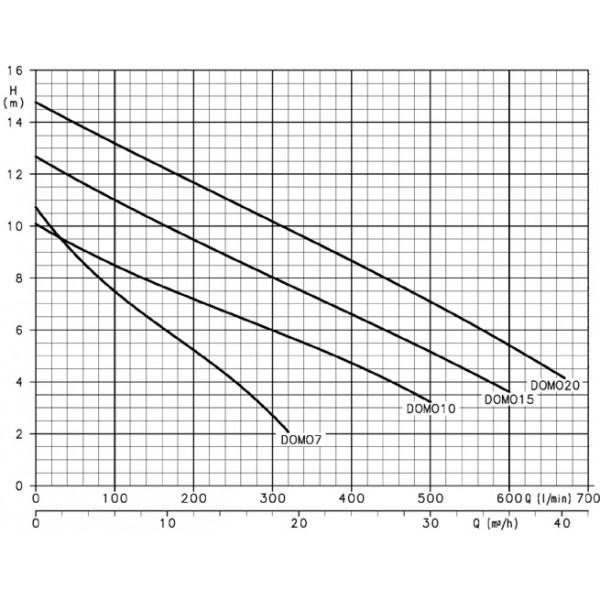

| Max. flow | 600 l/min (36 m³/h) |
| Max. head (zero flow) | 12.7 m |
| Head at max. flow | 3.6 m |
| Max. absorbed power | 1.58 kW |
| Max. current | 7.02 A (220–240V) |
| Capacitor | 30 µF (built in) |
| Float switch | Tube float switch (GT) |
| Impeller | Twin-channel impeller, stainless steel |
| Solids passage | Up to 50 mm |

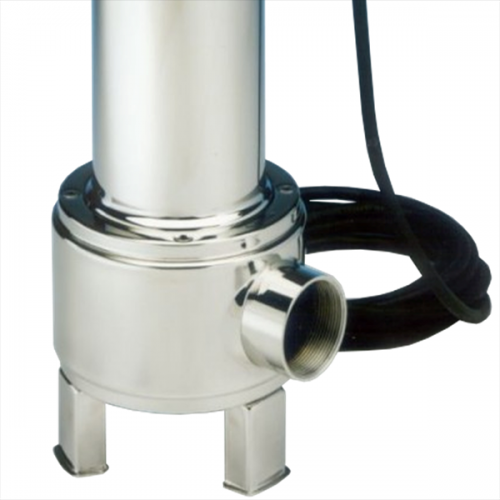

| Discharge | Rp 2″ female thread |
| Max. liquid temperature | 35°C (fully submerged) |
| Max. immersion depth | 5 m |
| Protection / insulation | IPX8 / class F |
| Power cord | H07RN-F with plug |
| Seal system | DRIVELUB — V-ring, SiC mechanical seal and lip seal with oil chamber |
| Construction | Stainless steel pump body and motor casing |
| Weight | 15.3 kg |
Features
Built for
FAQs
-
Data Sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
Lowara DIWA pumps Submersible pumps for dirty water manufactured in AISI 304 stainless steel. Four basic models with 0.55 (0.75 HP) to 1.5 kW (2HP) rated power.…
DOMO series, stainless steel electric pumps, are available with twin-channel or vortex impeller (DOMO VX). Designed to handle suspended solids up to 50mm in diameter…
The Clarke PSV1A water pump is designed particulary for heavy duty applications. This robust, powerful water pump is ideal for rapidly shifting both clean and…
The DAB Nova submersible pumps are designed for domestic use including basement drainage, cesspit water removal, ponds and fountains. Ideal for water up to 10…
The KP range of pumps from Grundfos is suitable for both temporary and permanent free-standing installation, as well as installation within a collecting tank. Easy-to-install,…
The Goliath Super is a robust sump pump made of stainless steel plate and fibre-reinforced plastic, resistance to corrosion. It also features a vortex impeller…
Frequently Asked Questions
Quick answers to common questions about the Lowara DOMO15/B GT 230V 107670420XXXUBA. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a submersible pump?
A submersible pump is designed to operate fully submerged in the liquid it is moving. The motor is sealed inside the pump body and cooled by the surrounding water. Submersibles are used for drainage, sewage, septic tanks, deep wells and boreholes, and for raising water from sumps, cellars and floodwater. Many stocked at Anglian Pumping handle solids in suspension.
Can submersible pumps handle solids and sewage?
Yes – some submersibles are designed for clean water only, others handle solids up to 50 mm or full raw sewage. Anglian Pumping stocks ABS, BBC, Flygt and T-T Submersibles ranges that include vortex, single channel and grinder impellers for different solids handling requirements. Always match the pump to the maximum solid size and the type of effluent it will see.
When should I use a submersible pump instead of a surface pump?
Use a submersible when the water level is more than around 8 metres below the pump installation point – surface pumps cannot self-prime beyond that depth. Submersibles are also better when the liquid contains solids, when noise must be minimised, or when the pump needs to operate in confined spaces such as sumps and chambers where a surface pump would not fit.
