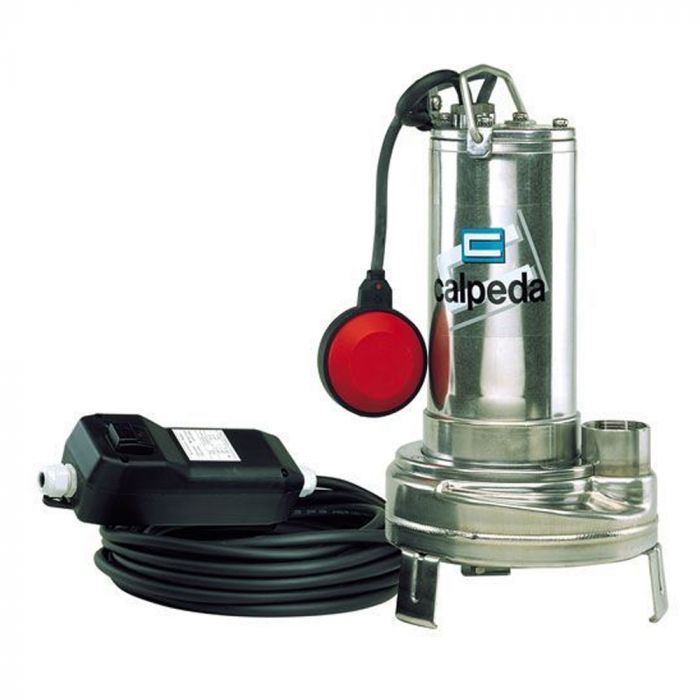

CALPEDA GXCM 40B AUTOMATIC SEWAGE SUBMERSIBLE PUMP (WITH FLOATSWITCH) 240V
- Established 1975
- Trusted by thousands of customers
Calpeda GXCM 40B is a Calpeda AISI 304 stainless steel submersible sewage pump with a two-channel impeller. It delivers up to 350 l/min (21 m³/h) and a maximum head of 10.4 m (1 bar), driven by a 0.55 kW motor (single-phase 230 V 50 Hz).
It passes solids up to 35 mm, and the shaft has a double seal with an oil chamber. This automatic version has a float switch, a thermal protector and a control box with the capacitor.
More about this product
Calpeda GXCM 40B overview
Calpeda GXCM 40B is a Calpeda AISI 304 stainless steel submersible sewage pump with a two-channel impeller. It delivers up to 350 l/min (21 m³/h) and a maximum head of 10.4 m (1 bar), driven by a 0.55 kW motor (single-phase 230 V 50 Hz).
It passes solids up to 35 mm, and the shaft has a double seal with an oil chamber. This automatic version has a float switch, a thermal protector and a control box with the capacitor.
Specifications
| Model | Calpeda GXCM 40B |
|---|---|
| Type | Submersible sewage pump, two-channel impeller |
| Motor power (P2) | 0.55 kW (0.75 HP) |
| Supply | Single-phase 230 V 50 Hz |
| Rated current | 4.6 A at 230 V |
| Capacitor | 20 µF / 450 V, in QM 11 control box |
| Control | Float switch and thermal protector |
| Max. flow | 350 l/min (21 m³/h) at 3.2 m |
| Max. head | 10.4 m (1 bar) |
| Solids passage | up to 35 mm |
| Discharge | 1½" BSP female |
| Liquid temperature | up to 35 °C |
| Min. immersion depth | 250 mm |
| Max. immersion depth | 5 m |
| Duty | Continuous, with the motor submerged |
| Motor | 2-pole, 50 Hz, approx. 2800 rpm, insulation class F, IP X8 |
| Cable | 10 m H07RN8-F |
| Height | 380 mm |
| Weight (with 10 m cable) | 11.9 kg |
Performance
| Flow (l/min) | Flow (m³/h) | Head (m) | Pressure (bar) |
|---|---|---|---|
| 0 (shut-off) | 0 | 10.4 | 1 |
| 50 | 3 | 9 | 0.9 |
| 100 | 6 | 8 | 0.8 |
| 150 | 9 | 7.1 | 0.7 |
| 200 | 12 | 6.3 | 0.6 |
| 250 | 15 | 5.4 | 0.5 |
| 300 | 18 | 4.4 | 0.4 |
| 350 | 21 | 3.2 | 0.3 |
Construction
- Pump casing, impeller and motor jacket in AISI 304 chrome-nickel stainless steel
- Two-channel impeller
- Double shaft seal with oil chamber
- Motor cooled by the pumped liquid
- 10 m supply cable
- Float switch, thermal protector and control box with capacitor
Applications
- Sewage and waste water
- Drainage of liquids containing solids up to 35 mm
Frequently asked questions
Technical data: Calpeda GXC/GXV data sheet (2011 edition).
-
Instructions PDFDownload
-
Brochure PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Frequently Asked Questions
Quick answers to common questions about the CALPEDA GXCM 40B AUTOMATIC SEWAGE SUBMERSIBLE PUMP (WITH FLOATSWITCH) 240V. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a submersible pump?
A submersible pump is designed to operate fully submerged in the liquid it is moving. The motor is sealed inside the pump body and cooled by the surrounding water. Submersibles are used for drainage, sewage, septic tanks, deep wells and boreholes, and for raising water from sumps, cellars and floodwater. Many stocked at Anglian Pumping handle solids in suspension.
Can submersible pumps handle solids and sewage?
Yes – some submersibles are designed for clean water only, others handle solids up to 50 mm or full raw sewage. Anglian Pumping stocks ABS, BBC, Flygt and T-T Submersibles ranges that include vortex, single channel and grinder impellers for different solids handling requirements. Always match the pump to the maximum solid size and the type of effluent it will see.
When should I use a submersible pump instead of a surface pump?
Use a submersible when the water level is more than around 8 metres below the pump installation point – surface pumps cannot self-prime beyond that depth. Submersibles are also better when the liquid contains solids, when noise must be minimised, or when the pump needs to operate in confined spaces such as sumps and chambers where a surface pump would not fit.
What types of Calpeda pumps can I explore?
Calpeda produces pumps for water supply, pressure boosting, drainage and circulation. Choose a model according to the required flow, head and liquid.
Are Calpeda pumps suitable for commercial installations?
Yes. Calpeda offers pump ranges for domestic, commercial and industrial duties; suitability depends on the individual model and duty point.
How do I choose a replacement Calpeda pump?
Check the existing pump model, supply voltage, connection dimensions, flow rate and required head before selecting a replacement.
