Calpeda GEO Lifting Stations
CALPEDA GEO230-GXVM25-10 SUBMERSIBLE PUMP LIFTING STATION (AUTOMATIC) 240V
In stock
- Established 1975
- Trusted by thousands of customers
GEO LIFTING STATIONS
Calpeda's GEO lifting stations are suitable for use in a range of domestic, public and industrial settings. They can be used to automatically collect and lift rainwater and waste water that is clean, as well as for draining flood water. The models have a range of different capacities, depending on the requirements of the application. The single tanks can have either 40 litre or 230 litre capacities and are fitted with a submersible pump.
The tank is made from a durable and high quality polyethylene, which is corrosion resistant. The compact structure allows them to be fitted into even confined spaces. The pump is manufactured from stainless steel and has a built-in float switch. The lifting station pumps have a maximum flow rate of 10.2m3/h. Within the different models, they are suitable for liquid temperatures up to a maximum of 50 degrees C.
The lifting stations can be installed either underground or level with the ground. A total of two extensions are allowed with underground installations. Once installed it is easy to access the pump for servicing and maintenance requirements, through the use of a cover attached with screws. The station comes with a pipe kit to connect to an electro pump.
Calpeda is an Italian based manufacturer which produces a number of high quality electrical pumps. Throughout its history, the company has shown a commitment to designing and developing innovative products; utilising the latest advances in technology and pioneering processes to produce reliable and durable products for a range of applications.
More about this product
The GEO230 single tank with 230 litre nominal capacity comes with the GXVM25-6, 25-8, 25-10, 40-A and GQSM50-13 submersible pump depending on application. Other pump models can be fitted, please ask Sales for details.
The GEO230 range Automatic collecting and lifting stations:
- For clean water GXR pump series
- For waste water GXV pump series
Features:
- 1 x tank capacity 230 lt
- 1 x single-phase pump with 5 m cable and float switch
- 1 x discharge pipe kit Ø 40 mm in PVC

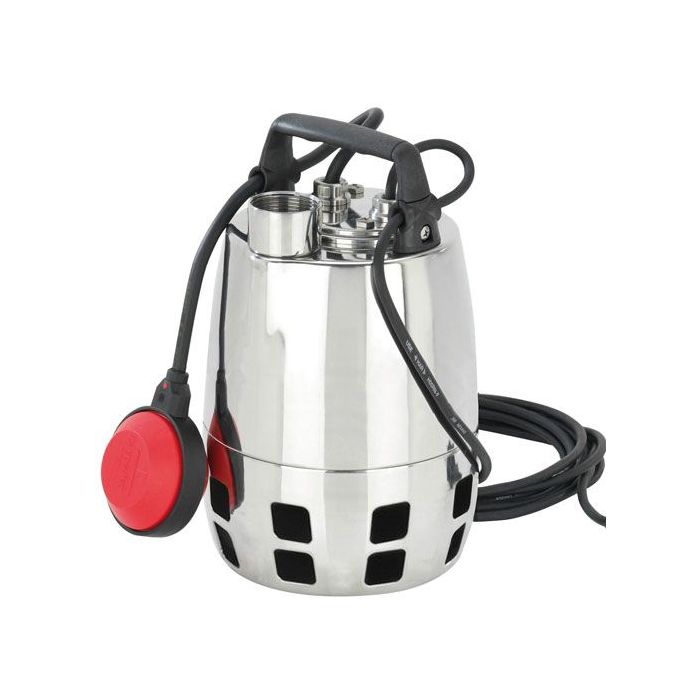

Pump Specification:
- Stainless Steel construction
- external float switch (cable)
- 13.2m3/hr max. flow
- 10m max. head
-
Data Sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
The Goliath Super is a robust sump pump made of stainless steel plate and fibre-reinforced plastic, resistance to corrosion. It also features a vortex impeller…
The KP range of pumps from Grundfos is suitable for both temporary and permanent free-standing installation, as well as installation within a collecting tank. Easy-to-install,…
Zenit DR Blue Pro 50/2/G32V 230v/1ph Auto DR Blue Professional range of submersible drainage pumps designed for domestic and professional use. Used in cellars and…
Ebara Igrogo The Ebara Idrogo range is a 5″ submersible electric pump for wells and clean water pressure boosting. Common applications include garden watering, irrigation, general domestc…
DOMO series, stainless steel electric pumps, are available with twin-channel or vortex impeller (DOMO VX). Designed to handle suspended solids up to 50mm in diameter…
The Lowara Domo GRI is a compact, high-performance submerisble grinder. The heavy duty cutting device makes it excellent for pumping waste water in residential, commerical…
Frequently Asked Questions
Quick answers to common questions about the CALPEDA GEO230-GXVM25-10 SUBMERSIBLE PUMP LIFTING STATION (AUTOMATIC) 240V. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a submersible pump?
A submersible pump is designed to operate fully submerged in the liquid it is moving. The motor is sealed inside the pump body and cooled by the surrounding water. Submersibles are used for drainage, sewage, septic tanks, deep wells and boreholes, and for raising water from sumps, cellars and floodwater. Many stocked at Anglian Pumping handle solids in suspension.
Can submersible pumps handle solids and sewage?
Yes – some submersibles are designed for clean water only, others handle solids up to 50 mm or full raw sewage. Anglian Pumping stocks ABS, BBC, Flygt and T-T Submersibles ranges that include vortex, single channel and grinder impellers for different solids handling requirements. Always match the pump to the maximum solid size and the type of effluent it will see.
When should I use a submersible pump instead of a surface pump?
Use a submersible when the water level is more than around 8 metres below the pump installation point – surface pumps cannot self-prime beyond that depth. Submersibles are also better when the liquid contains solids, when noise must be minimised, or when the pump needs to operate in confined spaces such as sumps and chambers where a surface pump would not fit.
