ABS MF334 D01*10P 400v Manual

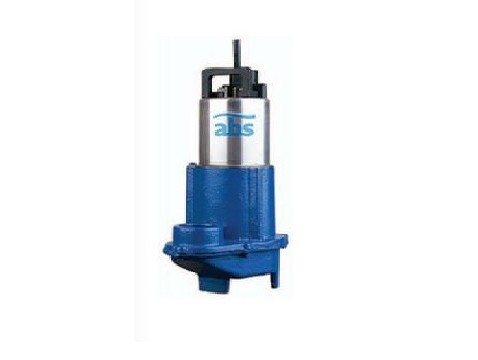

The MF334 D01*10-P from ABS comes as a compact submersible pumps with large solids passage for the reliable and effective dewatering of buildings and sites

Applications

Filling and emptying of containers to the drainage of flooded cellars and removal of rainwater.
Suitable for use in septic tanks and pumping effluent from locations below the backwash level in accordance with EN 12056.
The compact shape of the MF, fittings for easy mounting, and small sump requirements ensure a quick and cost-effective installation of the pump.
Maximum allowable temperature is 40 °C, or short term up to 60 °C (max. 5 minutes).

Features

Vortex hydraulics for blockage-free pumping in critical applications.
Mechanical and lip seals on rotor shaft.
Thermal sensors to protect motor against overheating.
KS version with float switch for automatic level control.
EasyFit plug-in cable connection.
Single-phase fitted with Schuko plug; three-phase with CEE plug.

Full Description

More about this product

Full Description

Technical Data

Discharge connection – G 1½”-1¼”
Motor power
From Mains – 0.83kW
From Motor Shaft – 0.56 kW
Speed (r/min) – 2900
Rated Voltage – 400V 3~
Rated Current – 1.4A
Cable Type (H07RN-F) – F4G1.0
Cable Length – 10 Meters
Weight – 8.9kg
Solids Size – 30mm

Materials

Upper Lid – Stainless steel 1.4301 (AISI 304)
Motor Housing – Cast iron EN-GJL-250
Rotor Shaft – Stainless steel 1.4021 (AISI 420)
Volute – Cast iron EN-GJL-250
Impeller – Polyamide
Cable – Neoprene
Fasteners – Stainless steel 1.4401 (AISI 316)
