ABS MF154-334 Pumps
ABS MF154 HW W01*10-KS UKP 230V
- Established 1975
- Trusted by thousands of customers
ABS MF154 W01*10-KS-UKP Auto, 230V

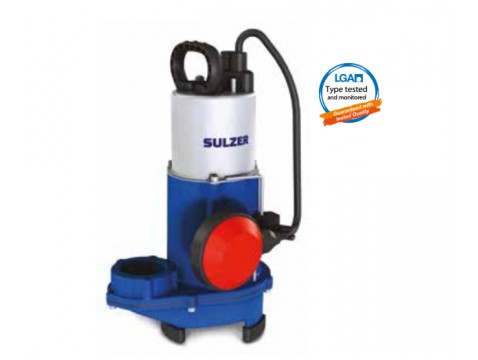

The MF154 HW W01*10-KS UKP high temperature submersible pump from ABS has been designed to cover a wide range of internal and external dewatering applications, but primarily where the temperature of the medium exceeds the standard upper limit (40 °C) to a maximum allowable temperature of 80 °C.
Applications
- Pumping of high temperature discharge water from laundries, commercial dishwashers and washing machines.
- Filling and emptying of containers to the drainage of flooded cellars and removal of rainwater.
- Suitable for use in septic tanks and pumping effluent from locations below the backwash level in accordance with EN 12056.
- The vortex hydraulics are particularly suitable for the pumping of fluids containing gaseous or abrasive particles.
- The compact shape of the MF, fittings for easy mounting, and small sump requirements ensure a quick and cost-effective installation of the pump.
- Maximum allowable temperature of the pumped medium is 80 °C.
Features
- Simple, cost-effective, pump installation.
- Vortex hydraulics for blockage-free pumping in critical applications.
- Free-standing on legs or pedestal mounted.
- Discharge connections G 1½” internal – 1¼” adaptor.
- Mechanical and lip seals on rotor shaft.
- Thermal sensors to protect motor against overheating.
- Float switch for automatic level control.
- EasyFit plug-in cable connection.
- Fitted with Schuko plug
More about this product
Materials
- Upper lid : Stainless steel 1.4301 (AISI 304)
- Motor housing : Cast iron EN-GJL-250
- Rotor shaft : Stainless steel 1.4021 (AISI 420)
- Volute : Cast iron EN-GJL-250
- Impeller : Polyamide
- Cable : Neoprene
- Fasteners : Stainless steel 1.4401 (AISI 316)
-
dimensions PDFDownload
-
data sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
Submersible sewage pump with a 40mm solids handling capacity. Cast iron construction suitable for pumping light domestic waste effluent septic tanks and large basements/cellars.
This self-priming submersible pump can be used for continous running and provides top quality general duty for clean water pumping. The strong, durable, double insulated…
Submersible pumps specifically designed for uses in narrow pits with dimensions down to 20 cm x 20 cm. Suitable to pump clear water containing particles…
The Clarke PVP11A stainless steel pump ideal for heavy duty draining applications including pits, sumps, ditches, fottings etc. It can be used to remove both…
The Lowara Domo GRI is a compact, high-performance submerisble grinder. The heavy duty cutting device makes it excellent for pumping waste water in residential, commerical…
The DAB Feka submersible pump has been designed for lifting dirty water. Explore the Feka and Fekafos range here at APS for quality pumps at…
Frequently Asked Questions
Quick answers to common questions about the ABS MF154 HW W01*10-KS UKP 230V. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a submersible pump?
A submersible pump is designed to operate fully submerged in the liquid it is moving. The motor is sealed inside the pump body and cooled by the surrounding water. Submersibles are used for drainage, sewage, septic tanks, deep wells and boreholes, and for raising water from sumps, cellars and floodwater. Many stocked at Anglian Pumping handle solids in suspension.
Can submersible pumps handle solids and sewage?
Yes – some submersibles are designed for clean water only, others handle solids up to 50 mm or full raw sewage. Anglian Pumping stocks ABS, BBC, Flygt and T-T Submersibles ranges that include vortex, single channel and grinder impellers for different solids handling requirements. Always match the pump to the maximum solid size and the type of effluent it will see.
When should I use a submersible pump instead of a surface pump?
Use a submersible when the water level is more than around 8 metres below the pump installation point – surface pumps cannot self-prime beyond that depth. Submersibles are also better when the liquid contains solids, when noise must be minimised, or when the pump needs to operate in confined spaces such as sumps and chambers where a surface pump would not fit.
