ABS JC Pumps
ABS JC 34 HD DOL 400V
- Established 1975
- Trusted by thousands of customers

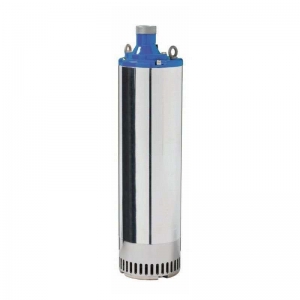

ABS JC34 Submersible Pump HD DOL 400v
The slim design of the submersible drainage center-line pump JC 34 makes it perfect for applications with limited installation space. The pump is ideal for pumping water and dirty water mixed with light abrasives. 50 Hz: head max 34 meters, flow max 16 l/s.
JC 34 ND Medium head 3~
JC 34 HD High head 3~
Motor protection
Built-in thermal switches in the stator windings (140ºC, ±5), connected to built-in contactor.
Discharge connections
2" (standard HD), 3" (standard ND) hose connections.
2", 3" B.S.P. threaded connections.
Weight
31 kg
More about this product
| Electric submersible pump | JC 34 |
| Maximum submergence | 20 m |
| Protection class | IP 68 |
| Max. temperature of pumped medium at max. power input and continuous duty | 40ºC |
| Max. media density | 1,100 kg/m3 |
| pH of the pumped medium | 5-8 |
| Strainer hole | 8 x 33 mm |
| Max number of starts | 30/hour |
| Motor rating P2 | 3.0 kW |
| Speed | 2,850 rpm |
| Power cable | 20 m type H07RN8-F |
Price for pump excludes discharge connection – see below for options: (ex VAT)
2" Hose connection – Standard for HD – £71
3" Hose connection – Standard for ND – £80
2" BSP thread – £38
3" BSP thread – £88
-
Data Sheet PDFDownload
-
Manual PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
The Clarke PVP11A stainless steel pump ideal for heavy duty draining applications including pits, sumps, ditches, fottings etc. It can be used to remove both…
The KP range of pumps from Grundfos is suitable for both temporary and permanent free-standing installation, as well as installation within a collecting tank. Easy-to-install,…
Lowara DOC Pumps Submersible pumps for drainage, infiltration water and emptying of pools, ponds, tanks and reservoirs. The DOC pump is mainly made of stainless…
ABS Robusta 200TS 230v auto/manual The Robusta 200 and 300 series have been designed for internal or external applications such as emptying containers and drainage…
Submersible sewage pump with a 40mm solids handling capacity. Cast iron construction suitable for pumping light domestic waste effluent septic tanks and large basements/cellars.
The Clarke PSD1A stainless steel pump designed to clear water from ponds and pools. Suitable for operating waterfalls, fountains, irrigating gardens and draining cellars. Includes a…
Frequently Asked Questions
Quick answers to common questions about the ABS JC 34 HD DOL 400V. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a submersible pump?
A submersible pump is designed to operate fully submerged in the liquid it is moving. The motor is sealed inside the pump body and cooled by the surrounding water. Submersibles are used for drainage, sewage, septic tanks, deep wells and boreholes, and for raising water from sumps, cellars and floodwater. Many stocked at Anglian Pumping handle solids in suspension.
Can submersible pumps handle solids and sewage?
Yes – some submersibles are designed for clean water only, others handle solids up to 50 mm or full raw sewage. Anglian Pumping stocks ABS, BBC, Flygt and T-T Submersibles ranges that include vortex, single channel and grinder impellers for different solids handling requirements. Always match the pump to the maximum solid size and the type of effluent it will see.
When should I use a submersible pump instead of a surface pump?
Use a submersible when the water level is more than around 8 metres below the pump installation point – surface pumps cannot self-prime beyond that depth. Submersibles are also better when the liquid contains solids, when noise must be minimised, or when the pump needs to operate in confined spaces such as sumps and chambers where a surface pump would not fit.
