ABS J205-J604 pumps
ABS J604 ND SD, 400V
In stock
- Established 1975
- Trusted by thousands of customers

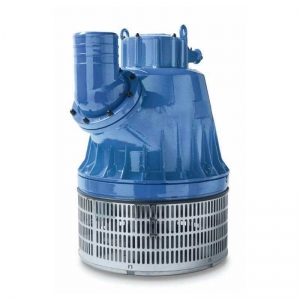

ABS JUMBO J604 ND SD Submersible Pump 400V
The low weight and compact design of the submersible drainage pump J 604 ensure convenient transport, handling, and installation. The pump is ideal for pumping water and dirty water mixed with light abrasives. 50 Hz: head max 58 meters, flow max 330 l/s.
More about this product
| Electric submersible pump | J 604 |
| Maximum submergence | 20 m |
| Protection class | IP 68 |
| Max. temperature of pumped medium at max. power input and continuous duty | 40ºC |
| Max. media density | 1,100 kg/m3 |
| pH of the pumped medium | 5-8 |
| Strainer hole | 12 x 60 mm |
| Max number of starts | 30/hour |
| Motor rating P2 | 56 kW |
| Speed | 1,450 rpm |
| Power cable | 20 m type H07RN8-F |
Price for pump excludes discharge connection – see below for options: (ex VAT)
6" Hose connection – Standard for HD – £281
10" Hose connection – Standard for ND – £437
8" Hose connection – ND – £361
6" BSP thread – £428
8" BSP thread – £613
Zinc anode belt kits for galvanic protection – £286
Floatation Ring – £5498
-
Manual PDFDownload
-
Data Sheet PDFDownload
