ABS J5-J15 Pumps
ABS J15 W DOL, Auto 230V
In stock
- Established 1975
- Trusted by thousands of customers

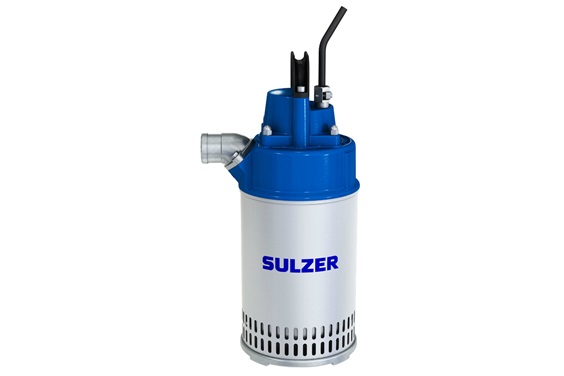

ABS JUMBO J15 Submersible Pump W DOL 230V
The low weight and compact design of the submersible drainage pump J 15 ensure convenient transport, handling, and installation. The pump is ideal for pumping water and dirty water mixed with light abrasives. 50 Hz: head max 19 meters, flow max 12 l/s
More about this product
| Electric submersible pump | J 15 |
| Maximum submergence | 20 m |
| Protection class | IP 68 |
| Max. temperature of pumped medium at max. power input and continuous duty | 40ºC |
| Max. media density | 1,100 kg/m3 |
| pH of the pumped medium | 5-8 |
| Strainer hole | 6.5 x 22 mm |
| Max number of starts | 30/hour |
| Motor rating P2 | 1.4 kW |
| Speed | 2,720 rpm (1~), 2,800 rpm (3~) |
| Power cable | 20 m type H07RN8-F |
Price for pump excludes discharge connection – see below for options: (ex VAT)
2" Hose discharge connection – standard – £25
2" BSP thread discharge connection – £21
2 ½" Hose discharge connection – £52
2 ½" BSP thread discharge connection – £52
3" Hose discharge connection – £52
3" BSP thread discharge connection – £52
Zinc anode belt kits for galvanic protection – £103
Floatation Ring – £296
Surface coating double layer coating with cast parts coated internal / exernal – £214
-
Manual PDFDownload
-
Data Sheet PDFDownload
