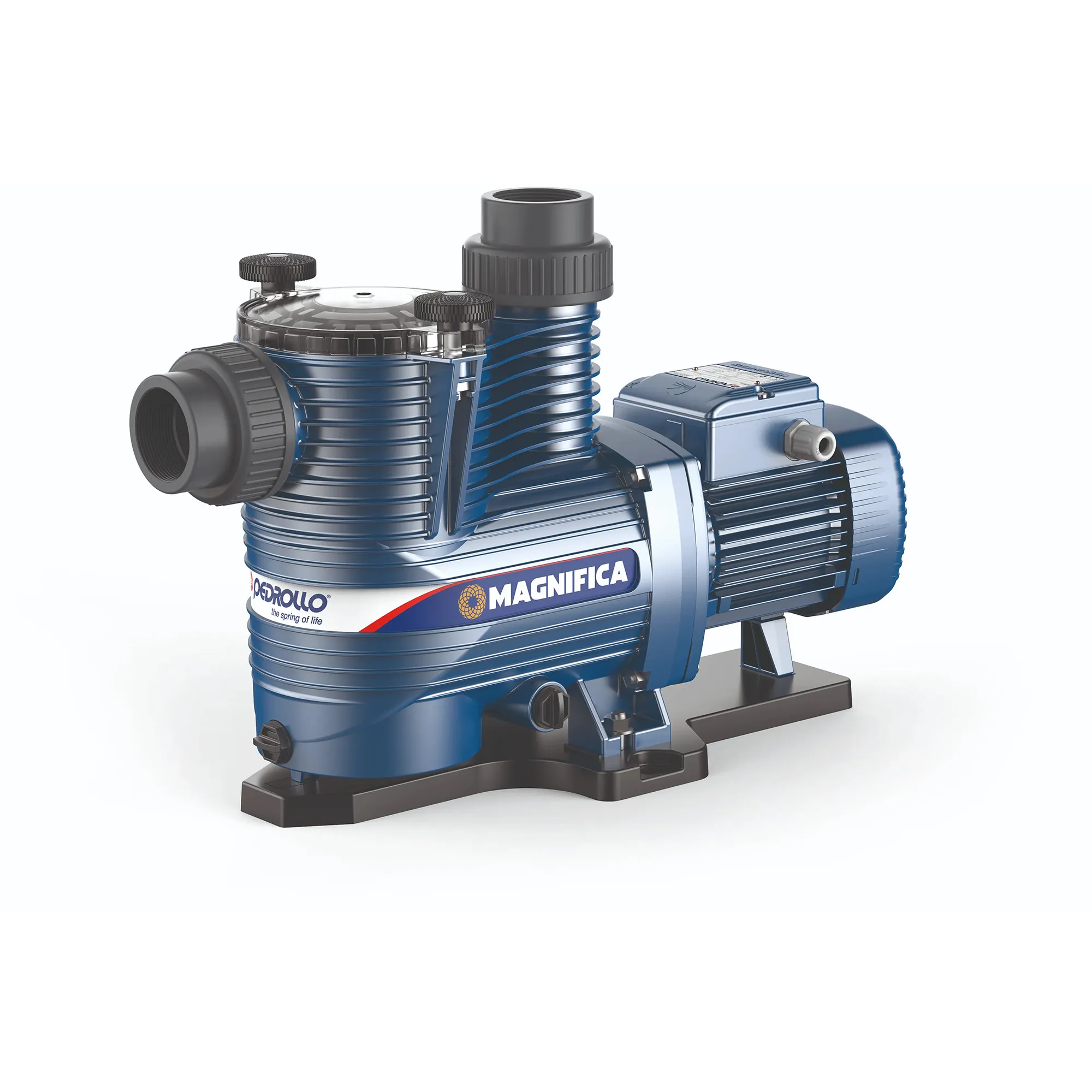

Name: Pedrollo MAGNIFICA 5m Single Phase 2110890
Brand: Pedrollo
SKU: 2110890
Price: 994.8 GBP
Availability: InStock

In stock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

The Pedrollo MAGNIFICA 5m is a 2.2 kW (3 HP) self-priming swimming pool pump on a 230 V single-phase supply, circulating up to 700 l/min at up to 22.2 m head, with a pre-filter basket built into the pump body.

Part of Pedrollo’s MAGNIFICA range for pool filtration and recirculation, with a glass-fibre reinforced polypropylene body and 2″ connection fittings supplied.

700l/min

Max flow

22.2m

Max head

2.2kW

3 HP

230V

Single Phase

Swimming poolBuilt-in pre-filterSelf-priming2″ connectionsCode 2110890

Full Description

More about this product

Full Description

Product overview

The Pedrollo MAGNIFICA 5m is a 2.2 kW (3 HP) self-priming centrifugal pump for swimming pool filtration on a 230 V single-phase supply, covering 100 to 700 l/min with a working head of 22.2 m down to 8 m. A pre-filter basket built into the pump body catches leaves and debris before the impeller.

MAGNIFICA pumps circulate pool water through the filter and back to the pool. The glass-fibre reinforced polypropylene body and Noryl impeller are built for chlorinated pool water, and the pump is self-priming so it can sit above the water level. Supplied with 2″ GAS threaded ISO 228/1 connection fittings and AISI 304 screws.

700l/min

Max flow

22.2m

Max head

2.2kW

3 HP

230V

Single Phase

Key features

Built-in pre-filter

Pre-filter basket built into the pump body to catch leaves and debris.

Self-priming

Can be installed above the pool water level.

Chlorine resistant

Glass-fibre reinforced polypropylene body and Noryl impeller.

2″ connections

Threaded fittings supplied for pool pipework.

Single or three-phase

MAGNIFICA m single-phase 230 V, or three-phase 400 V.

Continuous duty

Rated S1 for long filtration cycles.

Typical applications

Private pools

Filtration and recirculation for domestic pools.

Small commercial pools

Filtration on pools up to 180 m³.

Spas and hot tubs

Circulation on larger spa installations.

Water features

Recirculation on ponds and fountains.

Technical specifications

Brand / Series	Pedrollo — MAGNIFICA
Model	MAGNIFICA 5m
Pedrollo code	2110890
Supply	230 V single-phase
Motor power (P2)	2.2 kW / 3 HP
Motor	Single-phase motor with built-in thermal overload protection
Flow range	100–700 l/min
Head range	22.2–8 m
Pump body	Glass-fibre reinforced polypropylene
Impeller	Noryl
Pre-filter	Built into the pump body
Connections	2″ GAS ISO 228/1 fittings supplied
Liquid	Swimming pool water
Duty	Continuous S1

MAGNIFICA range

Model	Code	Supply	Power	Flow	Head
MAGNIFICA 1Rm	2113820	Single Phase	0.45 kW / 0.6 HP	100–325 l/min	12.7–4 m
MAGNIFICA 1R	2113830	Three Phase	0.45 kW / 0.6 HP	100–325 l/min	12.7–4 m
MAGNIFICA 1m	2110850	Single Phase	0.55 kW / 0.75 HP	100–350 l/min	13.5–4 m
MAGNIFICA 1	2110900	Three Phase	0.55 kW / 0.75 HP	100–350 l/min	13.5–4 m
MAGNIFICA 2m	2110860	Single Phase	0.75 kW / 1 HP	100–400 l/min	16–5 m
MAGNIFICA 2	2110910	Three Phase	0.75 kW / 1 HP	100–400 l/min	16–5 m
MAGNIFICA 3m	2110870	Single Phase	1.1 kW / 1.5 HP	100–525 l/min	15–6 m
MAGNIFICA 3	2110920	Three Phase	1.1 kW / 1.5 HP	100–525 l/min	15–6 m
MAGNIFICA 4m	2110880	Single Phase	1.5 kW / 2 HP	100–600 l/min	17.3–7 m
MAGNIFICA 4	2110930	Three Phase	1.5 kW / 2 HP	100–600 l/min	17.3–7 m
MAGNIFICA 5m	2110890	Single Phase	2.2 kW / 3 HP	100–700 l/min	22.2–8 m
MAGNIFICA 5	2110940	Three Phase	2.2 kW / 3 HP	100–700 l/min	22.2–8 m

Head shown as the working range from minimum to maximum flow. Performance to Pedrollo 50 Hz data.

Frequently asked questions

Which size for my pool?

Pedrollo rate the MAGNIFICA range for pools up to 180 m³. Choose the size to match your filter’s flow, and ask us if you want it checked. For bigger pools, look at the Pedrollo MAXIMA.

Is it self-priming?

Yes. It can be installed above the water level, with the pipework arranged so the pre-filter stays full.

What comes with it?

2″ GAS threaded ISO 228/1 connection fittings and AISI 304 screws are supplied with the pump.

Single or three-phase?

Every size comes as a single-phase 230 V model (MAGNIFICA m) and a three-phase 400 V model.

Downloads

Data Sheet PDF
Download
Magnifica Operation Manual PDF
Download
