Name: Pedrollo Future Jetm 2C Stainless Steel Three Phase 2110360
Brand: Pedrollo
SKU: 2110360
Price: 418.2 GBP
Availability: InStock

Pedrollo Future Jetm 2C Stainless Steel Three Phase 2110360

In stock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

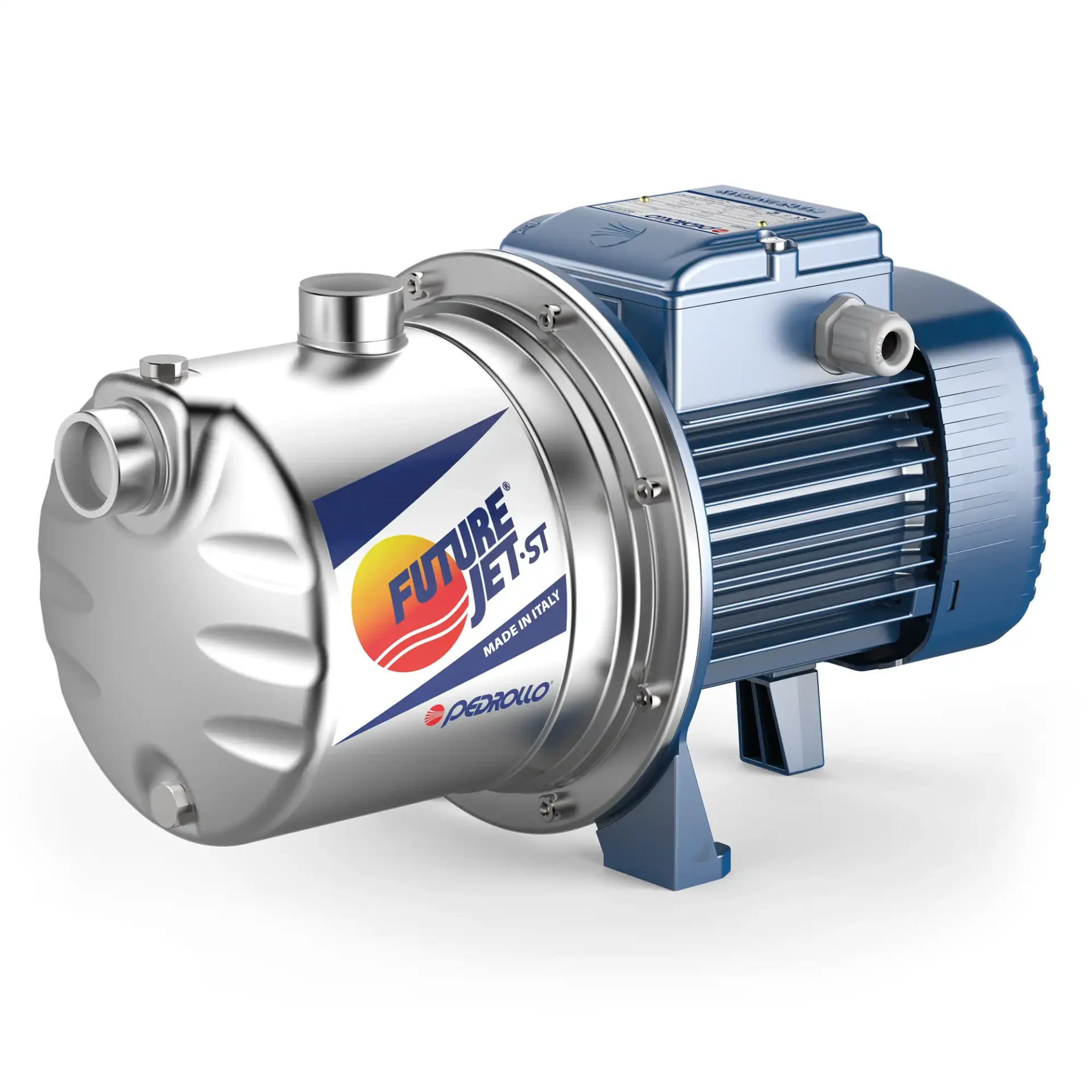

The Pedrollo FUTURE JET 2C-ST is the entry model in the higher-output FUTURE JET-ST 2 series — a 0.75 kW three-phase 230/400 V self-priming jet pump built on Pedrollo’s patented FUTURE JET design, which re-engineers the classic jet to deliver more flow for less power. Pedrollo rate the range at up to 50% lower energy consumption than a traditional jet pump, with reduced turbulence and quieter, more stable running.

Self-priming up to 9 m suction lift and able to handle water containing air, it delivers up to 120 l/min and up to 52 m head. Well suited to larger homes and irrigation systems running several outlets at once, paired with a small or medium pressure vessel.

AISI 304 stainless steel pump body, cover and impeller — no cast iron in contact with the water. Noryl ejector. IE3 high-efficiency three-phase motor, continuous S1 duty, IPX4. 1″ BSP suction and delivery. Maximum working pressure 6 bar.

↕ View performance & dimensions

Head at 20 l/min	43 m
Head at 40 l/min	34 m
Head at 60 l/min	27 m
Head at 80 l/min	20.5 m
Length × height	393 × 217 mm
Weight	11.2 kg
Current draw	4.7 A at 230 V / 2.7 A at 400 V
Performance at 0 m suction lift, to EN ISO 9906 Grade 3B.

120l/min

Max flow

52m

Max head

0.75kW

230/400 V three-phase

6bar

Max pressure

Up to 50% less energy
IE3 motor
Self-priming to 9 m
Three-phase 230/400 V
Stainless pump body
1″ BSP ports
Continuous duty S1
Part no. 2110360

Full Description

More about this product

Full Description

Product overview

The Pedrollo FUTURE JET 2C-ST is the entry model in the higher-output FUTURE JET-ST 2 series: a 0.75 kW (1 HP) three-phase 230/400 V self-priming jet pump for clean water, with an AISI 304 stainless steel pump body. Pedrollo’s patented FUTURE JET hydraulics are an evolution of the classic jet pump — matching and exceeding its pressure while, by Pedrollo’s own figures, doubling the flow and cutting energy consumption by up to 50%.

It primes itself from up to 9 m below the pump and keeps pumping when air is drawn in with the water, which is what makes a jet pump the natural choice for wells, sumps, rainwater tanks and any supply below pump level. Up to 120 l/min and 52 m maximum head. Suited to larger homes and irrigation systems running several outlets at once.

120l/min

Max flow

52m

Max head

0.75kW

230/400 V three-phase

6bar

Max pressure

Self-priming · Stainless pump body · Up to 50% less energy

Key features

Patented FUTURE JET hydraulics

A redesigned ejector that outperforms a traditional jet pump on pressure while delivering far more flow for the same power.

Up to 50% less energy

Pedrollo rate the FUTURE JET at up to half the energy consumption of a conventional jet pump of equivalent duty.

Self-priming to 9 m

Draws water from up to 9 m below the pump and handles water containing air without losing prime.

Quieter, more stable running

Reduced turbulence through the hydraulics gives smoother operation and lower noise.

All-stainless pump body

AISI 304 stainless pump body, cover and impeller — no cast iron in contact with the water. Noryl ejector and AISI 431 stainless motor shaft.

High-efficiency motor

IE3 three-phase motor, 230/400 V, continuous S1 duty, Class F insulation, IPX4.

Typical applications

Domestic water supply

Pressurising a house supply from a well, borehole sump or storage tank, paired with a pressure vessel.

Rainwater harvesting

Drawing from an underground or surface rainwater tank to supply WCs, washing machines and outside taps.

Garden and orchard irrigation

Hoses, sprinklers and drip systems fed from a pond, stream, tank or shallow well.

Water transfer

Moving clean water between tanks, or from a lower source to a header tank.

Performance

Flow l/min	5	10	20	40	60	80	90	95	100	120
Head m	52	49	43	34	27	20.5	18.3	17	15.5	10

At 0 m suction lift, 50 Hz. Shut-off head at zero flow 55 m. Performance to EN ISO 9906 Grade 3B.

Technical specifications

Brand / Model	Pedrollo — FUTURE JET 2C-ST
Part number	2110360
Power (P2)	0.75 kW / 1 HP
Supply	Three-phase 230/400 V
Motor	IE3 high-efficiency, S1 continuous duty, Class F, IPX4
Current draw	4.7 A at 230 V / 2.7 A at 400 V
Max flow	120 l/min
Max head	52 m
Max working pressure	6 bar
Suction lift	Up to 9 m
Liquid temperature	−10 °C to +40 °C
Ambient temperature	Up to +40 °C
Ports	1″ BSP suction and delivery (ISO 228/1)
Pump body	AISI 304 stainless steel
Impeller	AISI 304 stainless steel
Cover	AISI 304 stainless steel
Ejector	Noryl™
Motor shaft	AISI 431 stainless steel
Mechanical seal	AR-14, Ø14 mm, ceramic / graphite / NBR
Dimensions (L × H)	393 × 217 mm
Weight	11.2 kg

Frequently asked questions

What makes the FUTURE JET different from a normal jet pump?

A conventional jet pump recirculates part of its output through an ejector to lift water, which costs energy. Pedrollo’s patented FUTURE JET design reworks that ejector so it matches and exceeds a traditional jet’s pressure while, by Pedrollo’s figures, doubling the flow and using up to 50% less energy.

Does it need priming?

Only on first start: fill the pump body with water through the priming plug. After that it primes itself from up to 9 m below the pump and copes with air in the water. A non-return valve on the suction line is recommended.

Can it supply a whole house?

Yes, paired with a pressure vessel and pressure switch, or a pump controller. The vessel stores water under pressure and stops the pump starting every time a tap opens.

Single-phase or three-phase?

This is the three-phase 230/400 V version. The same pump is also available as the FUTURE JETm 2C-ST single-phase — choose by the supply at site.

Where can it be installed?

Indoors or under cover, in a well-ventilated space protected from the weather. It is for clean water and liquids that are not chemically aggressive to the pump materials.

Downloads

Data Sheet PDF
Download
