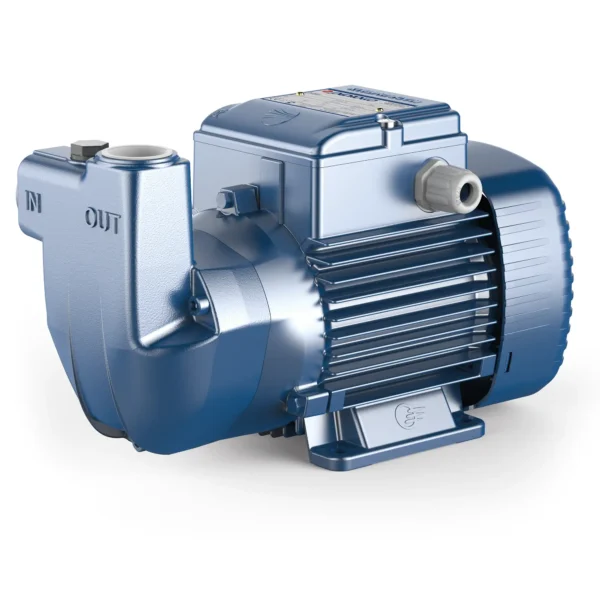

Name: Pedrollo CKR 100 Three Phase 2113860
Brand: Pedrollo
SKU: 2113860
Price: 606.6 GBP
Availability: InStock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

The Pedrollo CKR 100 is a 0.75 kW (1 HP) self-priming liquid ring pump for diesel and clean water on a 400 V three-phase supply, delivering up to 70 l/min and 37.5 m head.

Part of Pedrollo’s CKR range, with an anti-lock cast iron body, bronze impeller and Viton seal, and a suction head up to 9 m.

70l/min

Max flow

37.5m

Max head

0.75kW

1 HP

400V

Three Phase

Self-primingDiesel & waterAnti-lock designSingle & three-phaseCode 2113860

Full Description

More about this product

Full Description

Product overview

The Pedrollo CKR 100 is a 0.75 kW (1 HP) self-priming liquid ring pump for diesel and clean water on a 400 V three-phase supply, covering 5 to 70 l/min with a working head of 37.5 m down to 5 m.

The CKR is a compact self-priming pump that copes with irregular flow or liquid mixed with air. The cast iron pump body has a stainless steel front surface, and the patented aluminium motor bracket (IT1243605) has a brass anti-lock cover, so the impeller can’t seize through oxidation. Bronze star-type impeller, AISI 431 shaft and a ceramic / graphite / Viton mechanical seal. Suction head up to 9 m, liquid from −10 to +90 °C, maximum working pressure 6 bar.

70l/min

Max flow

37.5m

Max head

0.75kW

1 HP

400V

Three Phase

Key features

Self-priming

Suction head up to 9 m, and copes with air in the liquid.

Anti-lock design

Stainless steel body surface and patented brass-covered bracket stop the impeller seizing.

Bronze impeller

Star-type bronze impeller with a Viton mechanical seal.

Efficient motors

IE2 single-phase and IE3 three-phase.

Typical applications

Diesel transfer

Filling and emptying diesel tanks.

Clean water

Water free from abrasive particles.

High head, low flow

Up to 55 m head on the CKR 90.

Technical specifications

Brand / Series	Pedrollo — CKR
Model	CKR 100
Pedrollo code	2113860
Supply	400 V three-phase
Motor power (P2)	0.75 kW / 1 HP
Motor	400 V three-phase IE3 motor
Flow range	5–70 l/min
Head range	37.5–5 m
Pump body	Cast iron with stainless steel anti-lock surface
Impeller	Bronze, star type
Motor bracket	Aluminium with brass anti-lock cover (patent IT1243605)
Shaft	AISI 431 stainless steel
Mechanical seal	Ceramic / graphite / Viton
Ports	1″ suction, 1″ delivery (ISO 228/1 threaded)
Suction head	Up to 9 m
Liquid temperature	−10 to +90 °C
Maximum working pressure	6 bar
Protection	IP X4
Duty	Continuous S1
Liquid	Diesel, or clean water without abrasive particles

CKR range

Model	Code	Supply	Power	Flow	Head
CKRm 90	2109750	Single Phase	0.75 kW / 1 HP	5–50 l/min	55–7 m
CKR 90	2109770	Three Phase	0.75 kW / 1 HP	5–50 l/min	55–7 m
CKRm 100	2113850	Single Phase	0.75 kW / 1 HP	5–70 l/min	37.5–5 m
CKR 100	2113860	Three Phase	0.75 kW / 1 HP	5–70 l/min	37.5–5 m

Head shown as the working range from minimum to maximum flow. Performance to Pedrollo 50 Hz data.

Frequently asked questions

CKR 90 or CKR 100?

The CKR 90 gives more head: up to 55 m at up to 50 l/min. The CKR 100 gives more flow: up to 70 l/min at up to 37.5 m. Both are 0.75 kW.

How is it different from the CK?

The CKR adds Pedrollo’s anti-lock design (a stainless steel surface in the pump body and a brass-covered motor bracket) so the impeller can’t seize, and it is rated for clean water as well as diesel.

Single or three-phase?

Both sizes come as single-phase CKRm (230 V, IE2) and three-phase CKR (400 V, IE3).
