Name: Lowara BGM 7/A 230v 107320020
Brand: Lowara
SKU: 8190-7-a-230
Price: 595.2 GBP
Availability: InStock

In stock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

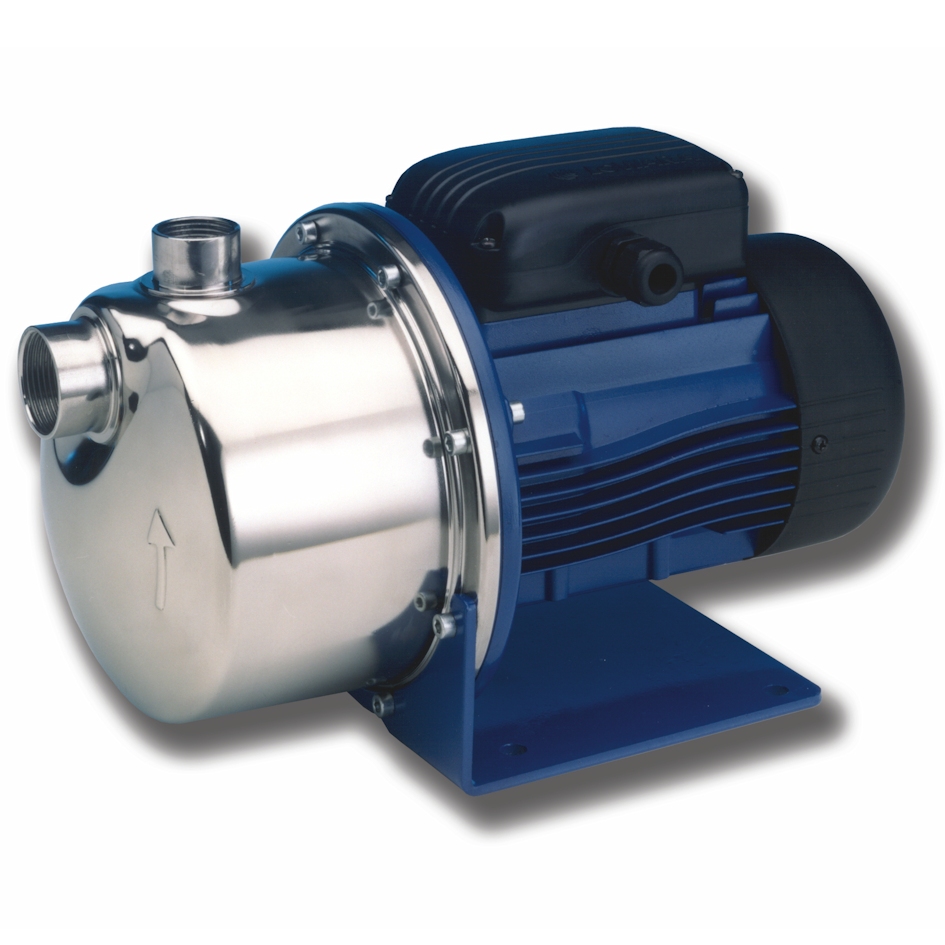

The Lowara BGM 7/A 230v (107320020) is a self-priming stainless steel jet pump with a 0.75 kW 230V single-phase motor, up to 45.6 m of head and flows up to 55 l/min (3.3 m³/h).

BG pumps have a built-in ejector that keeps them primed even with dissolved gases in the water, and lift water from up to 8 m below the pump. Pressed AISI 304 stainless steel makes them light, durable and corrosion-resistant.

45.6 m

Max. head

55 l/min

Max. flow

0.75 kW

Motor

8 m

Suction lift

Self-primingAISI 304 stainlessBuilt-in ejector230VPart no. 107320020

Fit a foot valve on the suction pipe. Not sure this is the right model? Send us your application details and we’ll confirm before you order.

Full Description

More about this product

Full Description

The Lowara BGM 7/A 230v (107320020) is a self-priming stainless steel jet pump with a 0.75 kW 230V single-phase motor, up to 45.6 m of head and flows up to 55 l/min (3.3 m³/h).

Key specifications

Model	Lowara BGM 7/A 230v
Lowara part no.	107320020
Type	Self-priming centrifugal pump with built-in ejector
Motor power	0.75 kW
Supply	230V single phase, 50 Hz, built-in automatic-reset overload
Max. head (zero flow)	45.6 m
Max. flow	55 l/min (3.3 m³/h) at 27.3 m head
Max. absorbed power	1.04 kW
Max. current	4.63 A (220–240V)
Capacitor	25 µF
Max. suction lift	8 m
Max. working pressure	8 bar (PN 8)
Liquid temperature	–10 to +40°C
Max. ambient temperature	40°C
Connections	Rp 1¼″ suction, Rp 1″ delivery
Motor	IP55, class F, aluminium casing
Construction	Pressed AISI 304 stainless steel pump body and impeller

Features

Self-priming

Built-in ejector primes the pump and keeps it primed, even with dissolved gases.

Lifts from below

Draws water from up to 8 m below the pump.

Stainless steel

Pressed AISI 304 stainless steel — light, durable and corrosion-resistant.

Motor protection

Single-phase motor with built-in automatic-reset overload protection.

Built for

Water supply

Domestic and small-property water distribution.

Pressure boosting

Boosting mains or tank-fed supplies.

Garden irrigation

Watering and sprinklers from wells, tanks or water butts.

Rainwater & washing

Rainwater collection and washing duties.

FAQs

How much water will it pump?

Up to 55 l/min (3.3 m³/h) with 27.3 m of head, or up to 45.6 m of head at low flow. Actual flow depends on the suction lift and pipework.

Can it lift water from a well or tank below it?

Yes — it is self-priming and can lift from up to 8 m below the pump with a clean 1¼″ suction pipe and foot valve.

Is it suitable for drinking water?

BG pumps are used for domestic water supply. Ask us if you need a specific approval for your installation.

Do I need a pressure switch or controller?

For automatic boosting, pair it with a pressure switch and vessel, or a Lowara Genyo flow switch.

Downloads

INSTRUCTIONS PDF
Download
Data Sheet PDF
Download
