DAB Jet MP 230V Pumps
Jet 62 MP 60213267H
- Established 1975
- Trusted by thousands of customers

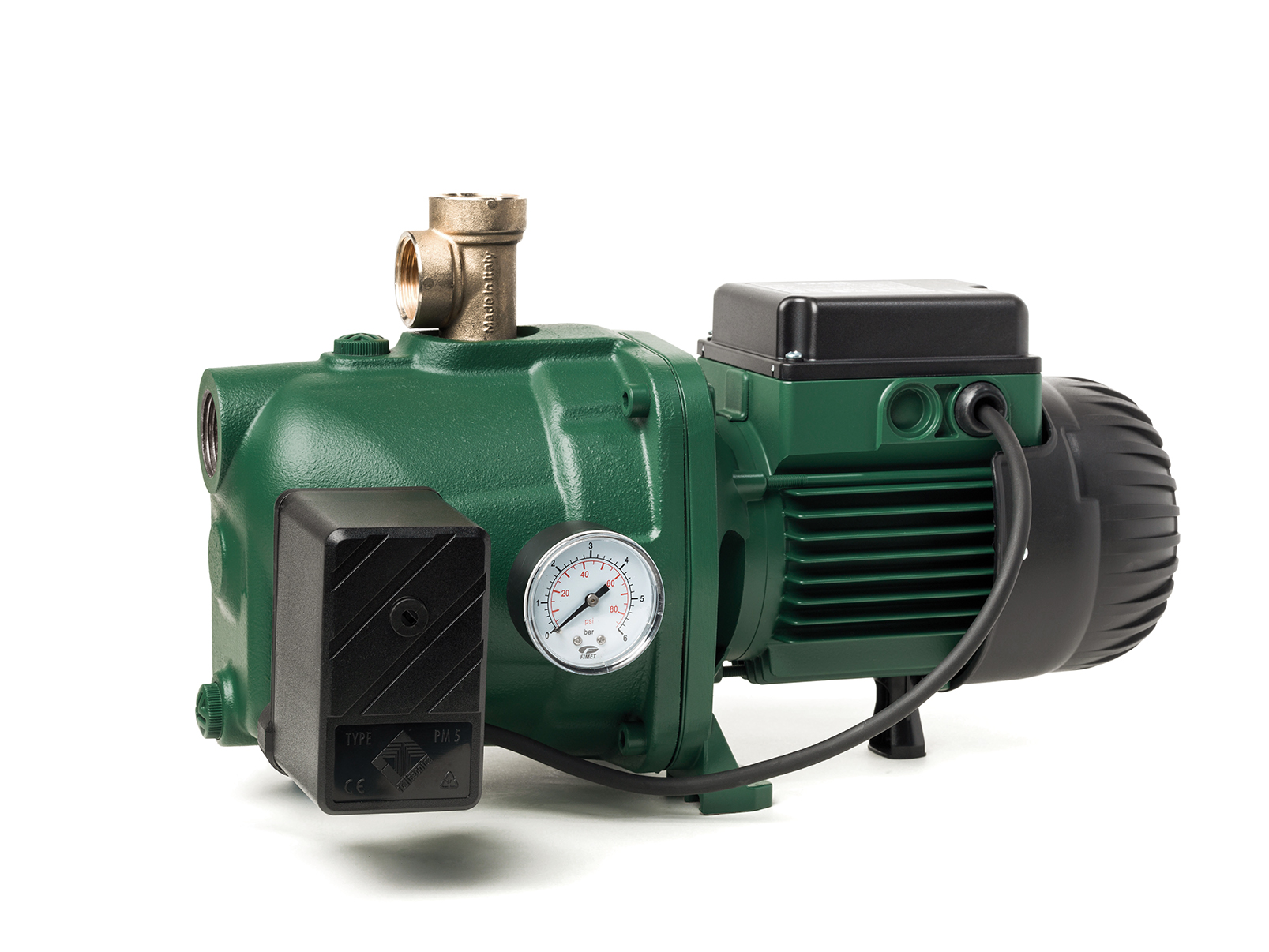

DAB Jet 62 MP
DAB Self-priming centrifugal water pump with pressure switch and gauge for automatic operation. Particularly suitable for domestic water supply, small-scale agriculture gardening and where self-priming operation is necessary.
More about this product
Overview
DAB Self-priming centrifugal water pump with pressure switch and gauge for automatic operation. Particularly suitable for domestic water supply, small-scale agriculture gardening and where self-priming operation is necessary.
Key points
- Home use
- Garden
- Irrigation
- Wells
- Excellent suction capacity
- Stainless steel pump body and motor support
- Internal ejector
- Motor cooling via fan guard
Specification
| Model | DAB Jet 62 MP |
|---|---|
| Supply | 220-240 V single-phase, 50 Hz |
| Rated power P2 | 0.44 kW (0.6 HP) |
| Max. power input P1 | 0.72 kW |
| Current In | 3.12 A |
| Capacitor | 12.5 µF / 450 V |
| Connections | 1″ suction, 1″ delivery |
| Control | Pressure switch and pressure gauge |
- Operating range: two-poles from 0.4 to 10.5 m3/h with head up to 62 metres
- Liquid temperature range: from 0°c to +35°C domestic use; 0°C to +40°C other use
- Maximum ambient temperature : +40°C
- Maximum working pressure: 6 bar (600 kPa) for Jet and Jetcom 8 bar (800 kPa) for Jetinox
- Protection level: IP 44 (IP 55 terminal board protection).
- Insulation class: F
-
Data Sheet PDFDownload
